BLISS
INSTRUCTIONS FOR ASSEMBLY AND

INSTALLATION

COMPACT TOILET
Warning!
The assembly of the compact toilet should
be arranged on a smooth and fl at surface.
To avoid damage of the cistern surface use
cloth as a bedding during the installation of
the fi ttings and screws to the toilet pan.
The pressure at the cold-water supply
system should be in a range 1,5–5 atm.
In case real pressure deviates from the
indicated range additional equipment for
pressure increase/relief is required.

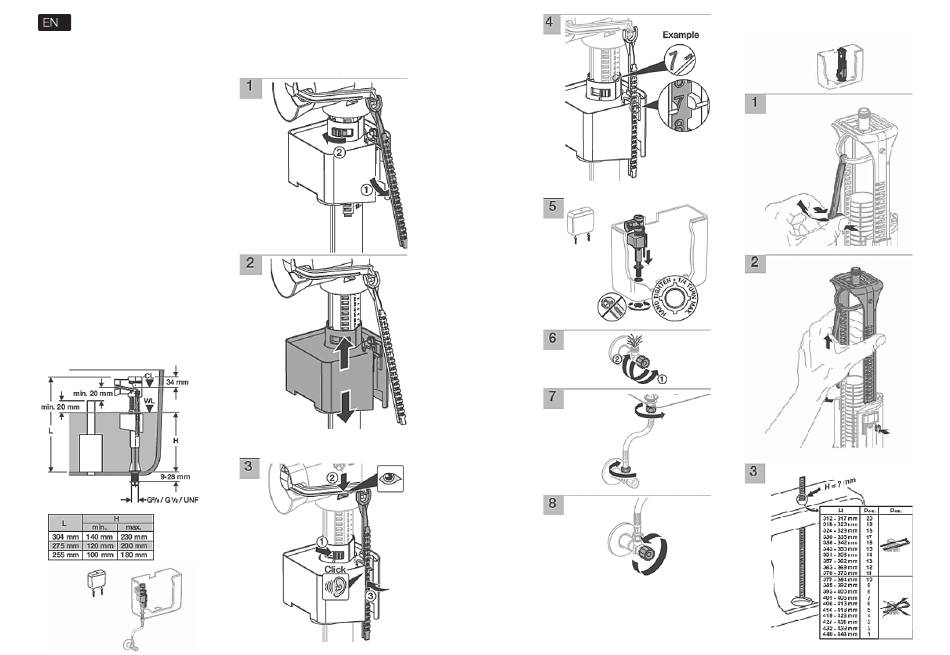

1. Tank assembly:
ATTENTION! Tank fi ttings (water fi lling
and fl ush mechanisms) are supplied with
pre-defi ned settings! It is only required to
arrange installation of the mechanisms
inside of the tank.
- setting of fi lling mechanism:
6
— setting of fl ush mechanism:
7
