BS2012 Video hands-free

Disassembly of the indoor station

3.4
Support-Hotline: +49 (0) 2661 98088 112
E-Mail: support@sks-kinkel.de

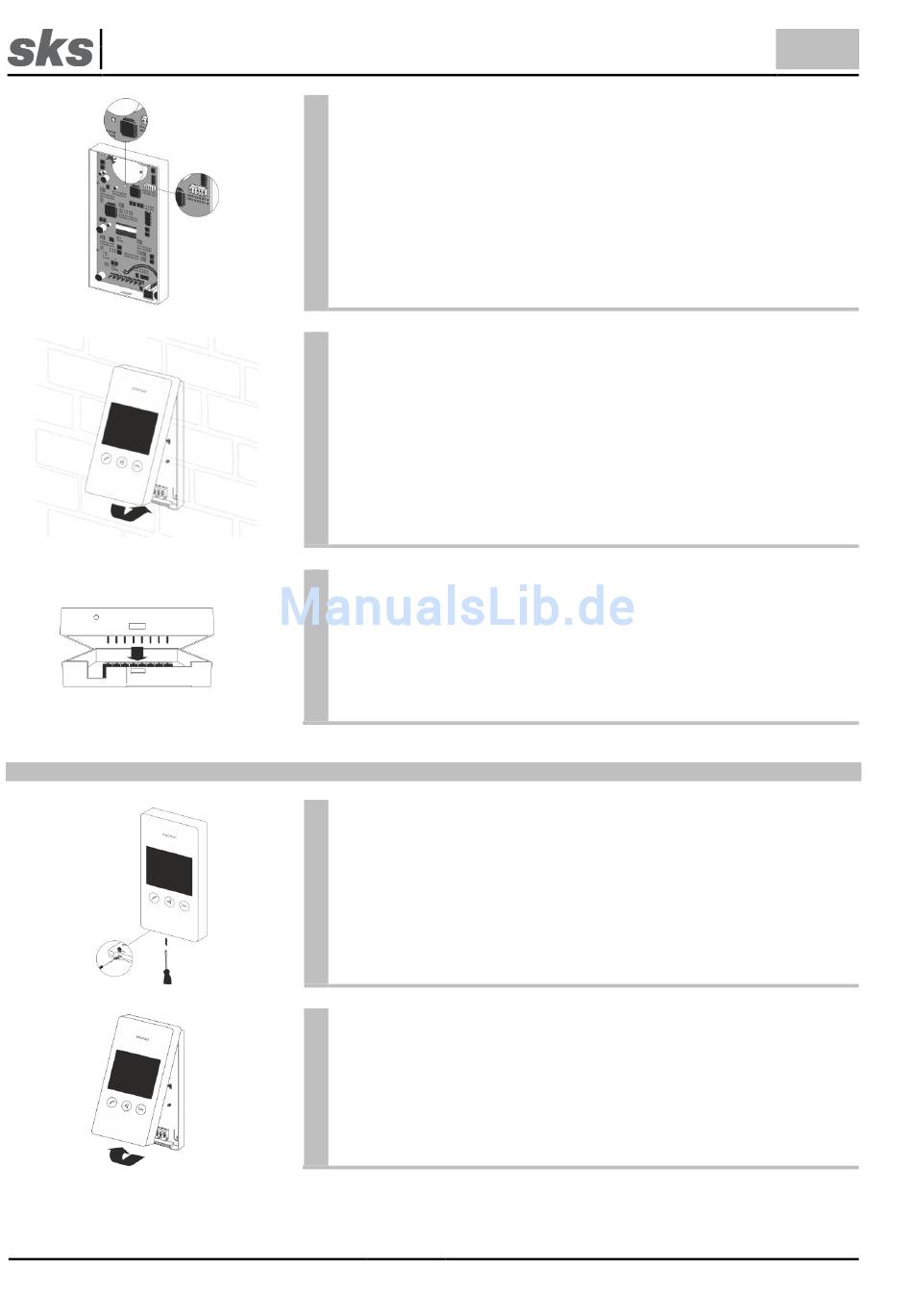

Set the SKS bus call address at the DIP switch on the back of the
Indoor station. Each address is assigned to a bell button at the door
station. The SKS bus table of call addresses can be found in the
appendix.
Pay particular attention to the setting of the DIP switch when the
indoor station is replaced!
Remount the Indoor station in the upper part of the supporting frame.
Subsequently press the Indoor station onto the frame until it clicks into
place.
When connecting the indoor station to the supporting frame, the
contacts on the inner side of the indoor station must be inserted into
the connection terminals on the supporting frame.
Use a screwdriver to release the Indoor station from its supporting
frame. This is done by inserting the screwdriver into the release
opening at the bottom of the Indoor station.
Carefully remove the Indoor station from the support frame as shown
in the drawing.
Pull the lower part of the Indoor station towards you and carefully lift it
upwards.
