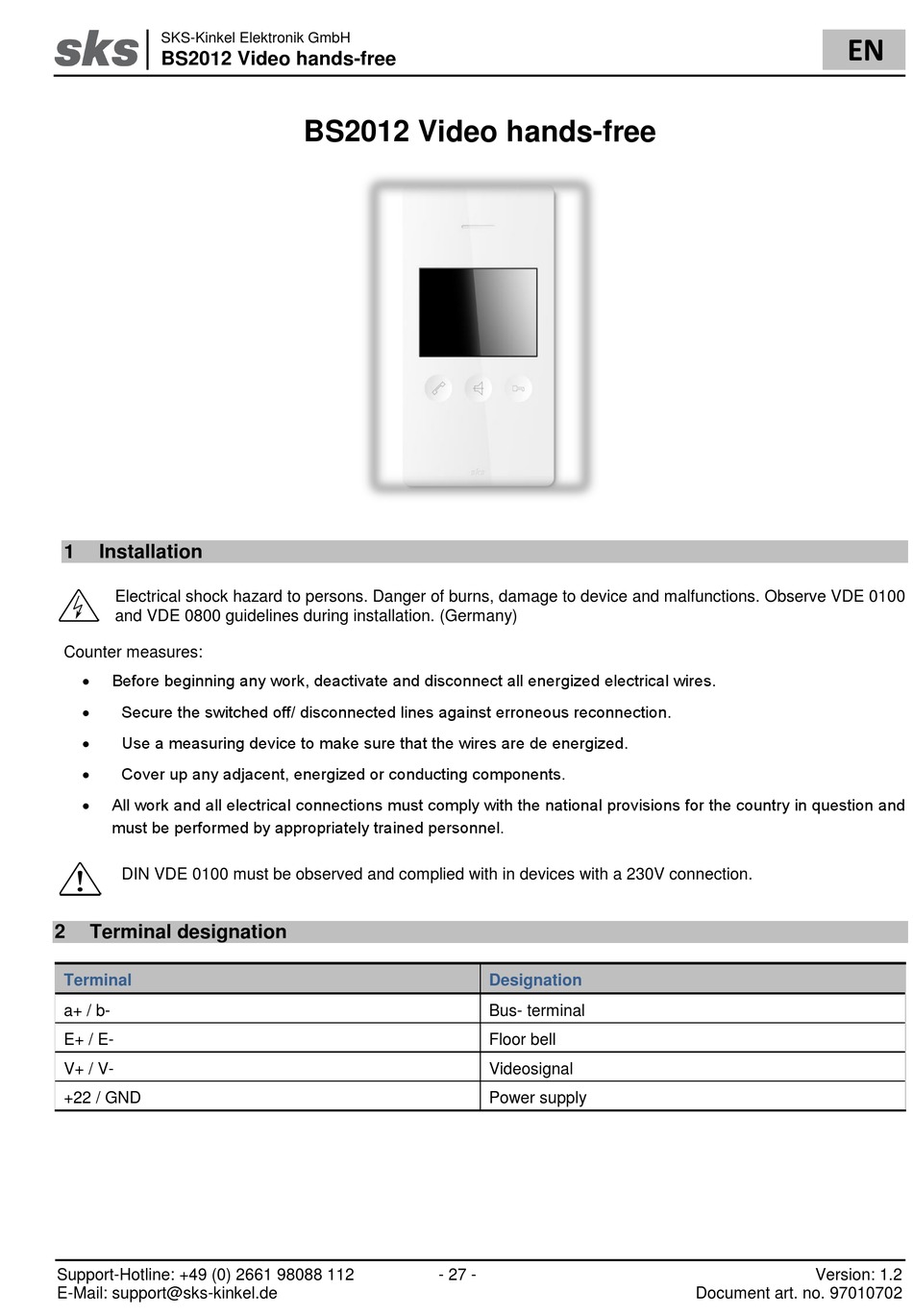

Installation; Terminal Designation - SKS–Kinkel Elektronik BS2012 Installationsanleitung

SKS-Kinkel Elektronik GmbH
BS2012 Video hands-free
1

Installation

Electrical shock hazard to persons. Danger of burns, damage to device and malfunctions. Observe VDE 0100
and VDE 0800 guidelines during installation. (Germany)
Counter measures:

Before beginning any work, deactivate and disconnect all energized electrical wires.

Secure the switched off/ disconnected lines against erroneous reconnection.

Use a measuring device to make sure that the wires are de energized.

Cover up any adjacent, energized or conducting components.

All work and all electrical connections must comply with the national provisions for the country in question and
must be performed by appropriately trained personnel.
DIN VDE 0100 must be observed and complied with in devices with a 230V connection.
2

Terminal designation

Terminal
a+ / b-
E+ / E-
V+ / V-
+22 / GND
Support-Hotline: +49 (0) 2661 98088 112
E-Mail: support@sks-kinkel.de
BS2012 Video hands-free
- 27 -
Designation
Bus- terminal
Floor bell
Videosignal
Power supply
EN
Version: 1.2
Document art. no. 97010702
