Mounting instructions

Preparation

3.1

Mounting an flush mounted or cavity wall box

3.2
Support-Hotline: +49 (0) 2661 98088 112
E-Mail: support@sks-kinkel.de

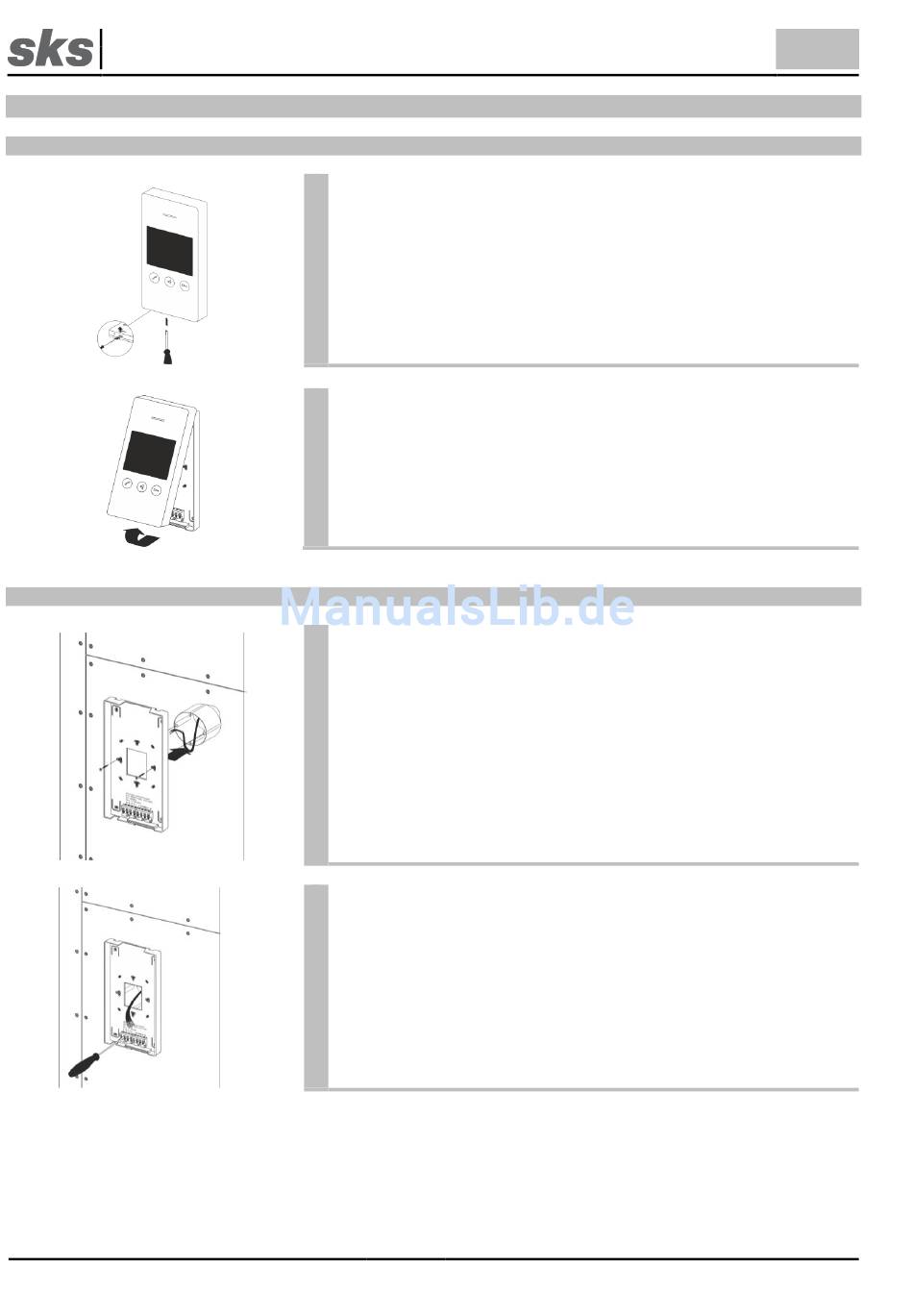

Use a screwdriver to release the Indoor station from its supporting
frame. This is done by inserting the screwdriver into the release
opening at the bottom of the Indoor station.
Carefully remove the Indoor station from the support frame as shown
in the drawing.
Pull the lower part of the Indoor station towards you and carefully lift it
upwards.
We recommend installing a flush-mounted or cavity wall box before
mounting the supporting frame so that it is possible to use the screws
to attach the supporting frame to the flush-mounted or cavity wall box.
Use the fastening holes in the center area of the supporting frame for
this installation.
We recommend additional fixation of the supporting frame with screws
in all four corners of the device.
Pay particular attention to the installation cable when mounting
the supporting frame!
Connect the previously installed cable to the terminals. The terminals
are located at the back of the Indoor station supporting frame.
To avoid errors when connecting cables please use the planning
guide or the wiring diagram.
