8-Port Gigabit Ethernet PoE+ Switch
This guide presents the basic steps to set up and operate this device. For detailed
instructions and specifications, refer to the user manual enclosed with this product
or at intellinetnetwork.com.

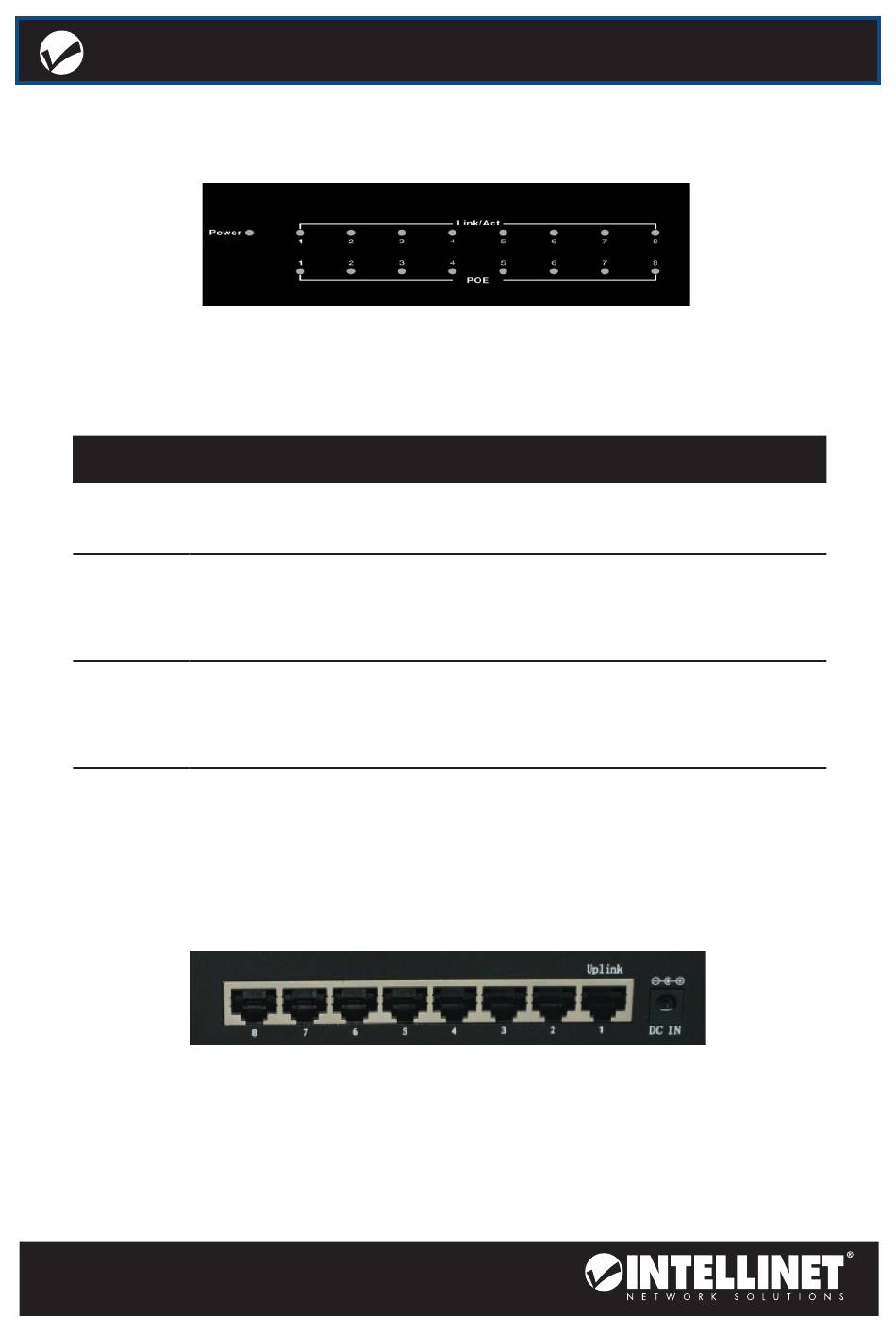

LEDs
The LED indicators make monitoring and troubleshooting easier. If a status LED
doesn't indicate a link or activity, check the corresponding device for proper setup
and operation.
LED
Power
PoE
Link/Act
Ports
All ports on the switch support Auto-MDI/MDI-X functionality, so you can use
straight or crossover UTP/STP cables to connect the RJ45 ports to PCs, routers,
hubs, other switches, etc. Cat5/5e/6 UTP/STP cables provide optimal performance;
if a status LED doesn't indicate a link, check the corresponding device for proper
setup and operation.
• Ports 1 – 8: 10/100/1000 Mbps ports, IEEE 802.3af/at compliant, providing a
maximum of 30 watts to connected PoE devices. The total PoE budget for this
switch is 60 watts, the per-port average power distribution is 7.5 watts.
• Port 1: The designated uplink port can be used the same way as any of the
other ports, however, when port isolation (VLAN mode 1 or 2) is active, this port
remains accessible from all other ports.
2 English
Status

Operation

On Power On
Off Check connection; turn power on
On Port is linked to PSE/PoE device
Blinking PoE Overload
Off No PSE/PoE device is linked
On Valid port connection on port 5
Blinking Valid port connection; data transmitted/received
Off No link established
