CDX Quick Assembly Instructions:
1.
Carefully unpack all parts.
2.

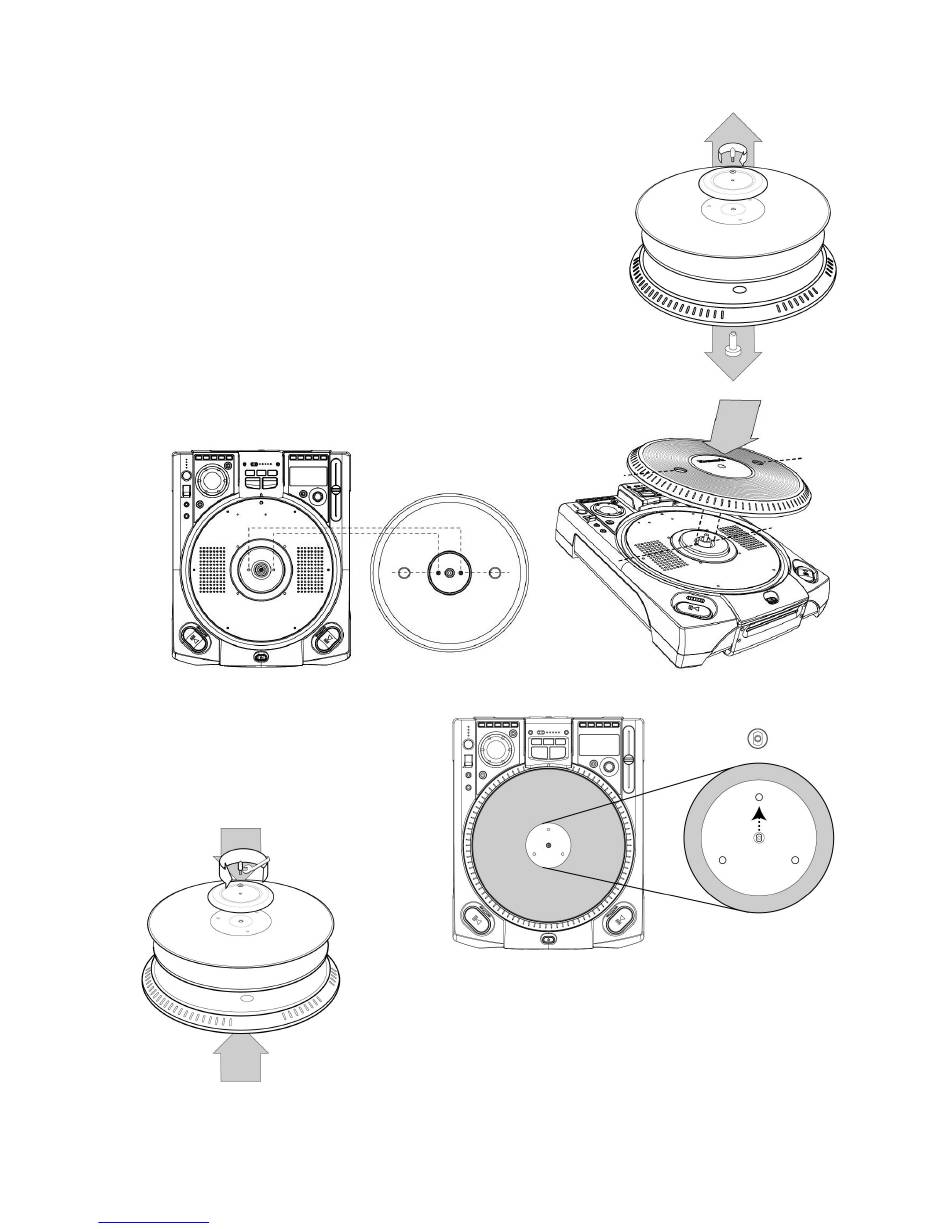

Unscrew the spindle and bolt (Note: it is reverse-threaded!)
3.
Place the platter on the CDX, aligning the 2 pins on the platter with
the 2 holes on the CDX motor.
4.
Place slipmat and record on platter.
5.
Rotate spindle center "D" shaft to point
to 1 of the 3 record holes as shown:
Downloaded from
www.Manualslib.com
6.
7.
8.
manuals search engine
Place the record cap on the record, and line up the "D"-shaped
spindle slot and pins with the record holes and "D" shaft.
Screw on the spindle and washer in the reverse (counter-
clockwise) direction.
Use wrench to carefully tighten, but not over-tighten the spindle.
