Main Parameter

Panel controller:
Working temperature: -20 - 60°C
Supply voltage: DC12V
External dimension: L50xW35xH23mm
Output: 3 channels
Outout current: ≤2A (each channel)
Connection mode: common anode
Touch remote:
Working voltage: 1.5*3V
Emission current: 10mA
Working current: 300uA
Standby current: 3uA
Standby time: app. 6 months
Control distance: 25m
Color pulley point: 60
GB

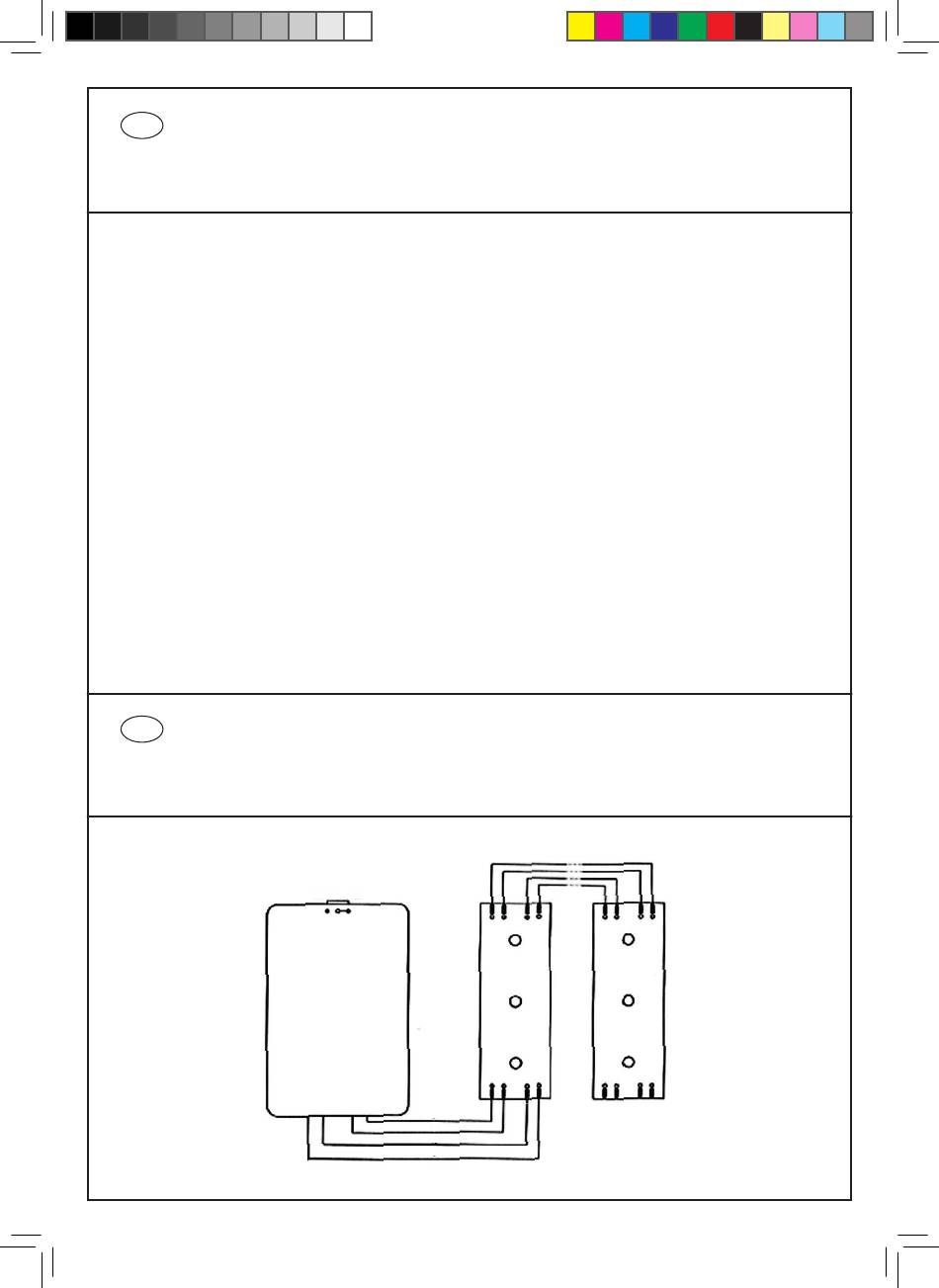

LED control box connection as shown
INPUT: DC12V
Output: DC12 3*2A
Black wire: +
Red wire: R
Green wire: G
Blue wire: B
INPUT DC 12V
POWER
B
G
R
+
