Instruction manual
Please read these instructions
carefully and make sure you
understand them before using this
machine.
Anleitungshandbuch
Bitte lesen Sie diese Anleitungen
sorgfältig durch und vergewissern
Sie sich, daß Sie diese verstehen,
bevor Sie die Maschine in Betrieb
nehmen.
Downloaded from
www.Manualslib.com

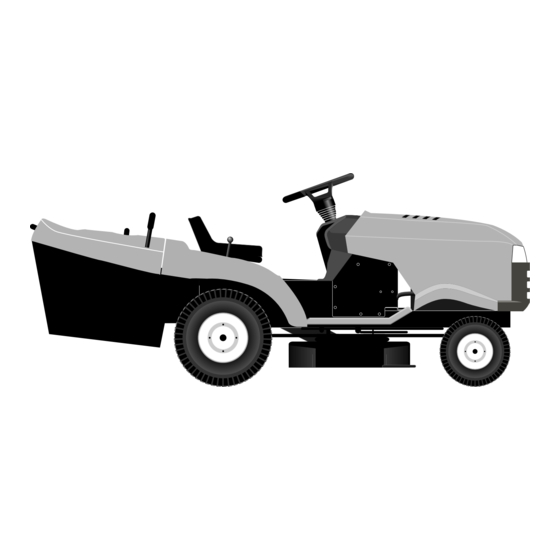

CTH160
CTH160
CTH160
CTH160
CTH160
Manuel d'instructions
Merci de lire trés attentivement le
manuel d'instructions. Assurez-vous
d'avior tout compris avant d'utiliser ce
tracteur.
Manual de las instrucciones
Por favor lea cuidadosamente y
comprenda estas intrucciones antes
de usar esta maquina.
manuals search engine
Manuale di istruzioni
Prima di utilizzare la macchina
leggete queste istruzioni con
attenzione ed accertatevi di averle
comprese bene.
Instructieboekje
Lees deze instructies aandachtig en
zorg dat u ze begrijpt voordat u deze
machine gebruikt.

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Husqvarna CTH160

  • Seite 1 CTH160 CTH160 CTH160 CTH160 CTH160 Instruction manual Manuel d’instructions Manuale di istruzioni Please read these instructions Merci de lire trés attentivement le Prima di utilizzare la macchina carefully and make sure you manuel d'instructions. Assurez-vous leggete queste istruzioni con understand them before using this...
  • Seite 2 Safety rules. Reglas de seguridad. Sicherheitsvorschriften. Norme antinfortunistiche. Règles de sécurité. Veiligheidsregels. Assembly. Montaje. Zusammenbau. Montaggio. Montage. Montering. Functional description. Descripción del funcionamiento. Funktionsbeschreibung. Funzionamento. Description du fonctionnement. Beschrijving van functies. Before starting. Antes del arranque. Maßnahmen vor dem Anlassen. Prima dell’avviamento.
  • Seite 3: Operation

    1. Safety Rules Safe Operation Practices for Ride-On Mowers IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. • Before attempting to start the engine, disengage all blade I.
  • Seite 4: Maintenance And Storage

    IV. Maintenance and Storage • Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition. • Never store the equipment with petrol in the tank inside a building where fumes may reach an open flame or spark.
  • Seite 5: Sicherheitsvorschriften Regeln Für Die Sichere Bedienung Von Rasentraktoren

    Sicherheitsvorschriften Regeln für die sichere Bedienung von Rasentraktoren WICHTIG: DIESE MÄHMASCHINE KANN HÄNDE UND FÜSSE ABTRENNEN UND GEGENSTÄNDE MIT HOHER GESCHWINDIGKEIT SCHLEUDERN. NICHTBEACHTUNG DER FOLGENDEN SICHERHEITSVORSCHRIFTEN KÖNNTE SCHWERE ODER TÖDLICHE VERLETZUNGEN ZUR FOLGE HABEN. I. SCHULUNG III. BETRIEB • Die Anleitungen sorgfältig durchlesen. Mit den •...
  • Seite 6: Wartung Und Lagerung

    - vor dem Entfernen von Verstopfungen aus dem Mähwerk oder dem Auswurf; - vor dem Prüfen, Reinigen oder Reparieren des Rasenmähers; - nachdem auf ein Fremdkörper gestoßen wurde. Den Rasenmäher auf Schäden untersuchen und die Reparaturen durchführen, bevor die Maschine wieder angelassen und in Betrieb genommen wird;...
  • Seite 7: Règles De Sécurité

    1. Règles de Sécurité Conseils pour l’utilisation en toute sécurité des tondeuses autoportées IMPORTANT: CETTE TONDEUSE EST CAPABLE D’AMPUTER LES MAINS, LES PIEDS ET DE PROJETER DES OBJETS. L’INOBSERVATION DES RÈGLES DE SÉCURITÉ SUIVANTES PEUT ÊTRE LA CAUSE DE BLESSURES SÉRIEUSES ET ÉVENTUELLEMENT MORTELLES.
  • Seite 8: Entretien Et Entreposage

    • D´ebrayez les lames, arrêtez le moteur, et débranchez le (s) fil (s) de la bougie d'allumage ou enlevez la clef de contact: - avant de retirer l'insert broyeur ou avant de retirer la goulotte d'éjection pour la nettoyer, - avant de contrôler, nettoyer ou travailler sur l'unité de coupe, - avant de retirer un objet coincé...
  • Seite 9: Operación

    1. Reglas De Seguridad Prácticas de Operación Seguras para las Segadoras Conducibles IMPORTANTE: ESTA MAQUINA CORTADORA ES CAPAZ DE AMPUTAR LAS MANOS Y LOS PIES Y DE LANZAR OBJETOS. SI NO SE OBSERVAN LAS INSTRUCCIONES DE SEGURIDAD SIGUIENTES SE PUEDEN PRODUCIR LESIONES GRAVES O LA MUERTE.
  • Seite 10: Mantenimiento Y Almacenamiento

    - después de golpear un objeto extraño. Inspeccione la segadora cuidadosamente, para verificar si hay daños y haga reparaciones antes de volver a arrancar y a operar el equipo; - si la maquina empieza a vibrar anormalmente (verifíquela inmediatamente). • Desenganche la transmisión a los accesorios cuando haga el transporte o cuando no este en uso.
  • Seite 11: Norme Antinfortunistiche

    1. Norme Antinfortunistiche Regole di sicurezza per trattorini da prato IMPORTANTE: QUESTO TRATTORINO TOSAERBA HA UNA POTENZA SUFFICIENTE AD AMPUTARE MANI E PIEDI E A SCAGLIARE OGGETTI. LA MANCATA OSSERVANZA DELLE SEGUENTI ISTRUZIONI ANTINFORTUNISTICHE POTREBBE CAUSARE LESIONI GRAVI E PERSINO IL DECESSO DELLA VITTIMA. I.
  • Seite 12 - dopo aver colpito un oggetto estraneo. Controllare che il tosaerba non sia stato danneggiato ed effettuare le riparazioni del caso prima di riavviare e mettere in funzione l’equipaggiamento; - se il tosaerba, o trattorino, vibra in modo anomalo (in qual caso eseguire immediatamente dei controlli).
  • Seite 13 1. Veiligheidsregels Veilige bedieningsmethoden voor zittrekkers BELANGRIJK: DEZE MAAIMACHINE KAN HANDEN EN VOETEN AMPUTEREN EN VOORWERPEN WEGSLINGEREN. HET NIET OPVOLGEN VAN DEZE VEILIGHEIDSINSTRUCTIES KAN ERNSTIG OF DODELIJK LETSEL TOT GEVOLG HEBBEN. I. TRAINING III. BEDIENING • Lees de instructies aandachtig. Zorg dat u vertrouwd •...
  • Seite 14: Onderhoud En Opslag

    CTH160 - nadat u een ongewenst voorwerp heeft geraakt. Inspecteer de maaimachine op schade en voer reparaties uit voordat u de machine weer start en 15,5/11,6 gebruikt; - als de machine abnormaal begint te trillen (onmiddellijk controleren). - vor dem Entfernen von Verstopfungen aus dem Mähwerk oder dem Auswurf;...
  • Seite 15 These symbols may appear on your tractor or in the literature supplied with the product. Learn and understand their meaning. Diese Symbole finden Sie auf Ihrer Maschine oder in Unterlagen, die mit dem Produkt ausgehändigt wurden. Bitte machen Sie sich mit deren Bedeutung vertraut. Ces symboles peuvent figurer sur tracteur ou dans les publications fournies avec le produit.
  • Seite 16 These symbols may appear on your tractor or in the literature supplied with the product. Learn and understand their meaning. Diese Symbole finden Sie auf Ihrer Maschine oder in Unterlagen, die mit dem Produkt ausgehändigt wurden. Bitte machen Sie sich mit deren Bedeutung vertraut. Ces symboles peuvent figurer sur tracteur ou dans les publications fournies avec le produit.
  • Seite 17 GEFAHR ZU VERMEIDEN: AUGEN SCHWEFELSÄURE AUGEN SCHÜTZEN UNVERZÜGLICH MIT EXPLOSIVE GASE • FUNKEN KANN ERBLINDUNG WASSER AUSSPÜLEN. KÖNNEN ERBLINDUNG ODER SCHWERE SOFORT ÄRZTLICHE • FEUER VERÄTZUNGEN HILFE AUFSUCHEN. KÖRPERVERLETZUNGEN • RAUCHEN VERURSACHEN. VERURSAC-HEN. GEVAAR OGEN ONMIDDELLIJK GEEN ZWAVELZUUR OGEN BESCHERMEN MET WATER SPOELEN.
  • Seite 18: Steering Wheel

    2. Assembly. 2. Zusammenbau. 2. Montage. 2. Montaje 2. Montaggio. 2. Montering. Before the tractor can be used certain parts must be as- sembled, which for transportation reasons are enclosed in the packing. The picture shows which parts must be as- sembled.
  • Seite 19 2 2 2 2 2 VOLANTE DE DIRECCIÓN • Introduzca el eje de extensión (1). Apriete en forma segura. • Montar la cubierta del eje del volant. Assegurarse de que las espigas de guía de la cubierta encajan en los orificios respectivos.
  • Seite 20 2 2 2 2 2 Asiento Remueva la manilla de ajuste y la arandela plana que aseguran el asiento al empaque de cartón y póngalos de lado para poder utilizarlos durante la instalación del asiento sobre el tractor. Gire el asiento hacia arriba y remuevalo del embalaje de cartón .
  • Seite 21: Einbau Der Batterie

    2 2 2 2 2 Install battery 1. Battery Cover NOTE: If battery is put into service after month and year 2. Screw indicated on label, charge battery for minimum of one hour 3. Cable Positive (+) at 6-10 amps. 4.
  • Seite 22: Installazione Della Batteria

    2 2 2 2 2 Instalación de la batería 1. Tapador del acumulador NOTA: Si utiliza la bateria después del mes y año indicado 2. Tornillo sobre la etiqueta, cargue la batería por un mínimo de una 3. Cable positivo (+) hora a 6-10 amps.
  • Seite 23 2 2 2 2 2 WARNING: Positive terminal must be connected first to prevent sparks from accidental grounding. Remove terminal caps and discard. Connect the red cable to + and then the black earth cable to -. Screw tight the cables.
  • Seite 24 2 2 2 2 2 To install bagger components to tractor 1. Rear Door 2. Support Bracket 3. 3/8 Carriage Bolt 4. 3/8 Lock Nut 1. Discharge Chute 5. 3/8 x 63,5mm Hex Bolt 2. 3/8 Nut 6. 10,3mm (13/32") flat 3.
  • Seite 25 2 2 2 2 2 To Assemble Bagger NOTE: For ease of assembly, you may wish to obtain the assistance of another person when putting the bagger to- gether. • Assemble front and lower bagger tubes using four (4) 1/ 1.
  • Seite 26: Installation Der Aufhängung Der Grasfangbox Des Traktors

    2 2 2 2 2 Installation der Aufhängung der Grasfangbox des Traktors 1. Hintere Öffnung 2. Strebe 3. Tragbolzen 3/8 4. Kontermutter 3/8 5. Sechskantbolzen 3/8 x 63,5mm 1. Auswurfkanal 6. Flache Unterlegscheibe 10,3mm (13/32) 2. Kontermutter 3/8 3. Flache unterlegscheibe •...
  • Seite 27: Justieren Der Grasfangbox

    2 2 2 2 2 Montage der Grasfangbox HINWEIS: Zum leichteren Zusammenbau der Grasfangbox ist es u.U. sinnvoll, die Hilfe einer zweiten Person 1. Vorderer Rahmen heranzuziehen. der Grasfangbox • Bauen Sie die vorderen und unteren Streben der Halterung der Grasfangbox mit den vier (4) im 2.
  • Seite 28 2 2 2 2 2 Assemblage des composants du collecteur 1. Porte (trappe) Arrière 2. Console de support 3. Boulon de support 3/8 4. Contre-ècrou 3/8 1. Manche de décharge 5. Boulon à tête hèxagonale 3/8 x 63,5 2. 3/8 Écrou 6.
  • Seite 29 2 2 2 2 2 Pour assembler le collecteur REMARQUE: Pour faciliter l'assemblage, vous pouvez obtenir l'aide d'une autre personne en remontant le ramasse- herbe. 1. Tube antériur • Assemmblez les tubes d'avant et inférieurs de 2. Tube infèrieur ramassehere en utilisant les quatre (4) 1/4 x 50,8mm d'ensacheur boulons de chariot et écrous frien fournis.
  • Seite 30 2 2 2 2 2 Para montar los componentes del contenedor para costales al tractor 1. Portezuela posterior 2. Consola portadora 3. tornillo portadora 3/8 4. Contratuerca 3/8 5. 3/8x63,5mm arandelas planas 1. Descarga de adaptarse 6. Arandela plana 10,3mm (13/32î) 2.
  • Seite 31: Ajuste Vertical

    2 2 2 2 2 Para montar el contenedor NOTA: Para facilitar el ensamblaje de la recolectora dehierba,se aconseja efectuar las operaciones con de la ayuda de otra persona. • Ensambler los tubos frontales y inferiores de la recolectora de hierba utilizando los cuatro pernos del chasis (4) 1/4 x 50,8mm y las tuercas de bloqueo suministrados.
  • Seite 32 2 2 2 2 2 Per montare i componenti del cesto di raccolta 1. Sportello posteriore 2. Staffa di supporto 3. Bullone di supporto (3/8) 1. Convogliatore di scarico 4. Dadi 3/8 2. Dadi 3/8 5. Bullone a testa esagonale (3/8 x 63,5mm) 3.
  • Seite 33 2 2 2 2 2 Per montare il cesto di raccolta: NOTA: per facilitare l’assemblaggio, nell’installare il sacco può essere utile farsi aiutare da un’altra persona. • Assemblare i tubi anteriore e inferiore del sacco usando quattro (4) bulloni a testa tonda e quadro sottotesta da ¼ x 50,8 mm, e relativi controdadi, forniti in dotazione.
  • Seite 34 2 2 2 2 2 Hetmonteren van componenten van de grascontainer op de trekker 1. Achterklep 2. Stennijzer 3. 3/8 Slotbout 4. 3/8 borgmoer 5. 3/8 Zeskantbout 6. Vlakke sluitring 10,3 mm (13.32") 1. Afvoertrechter 2. 3/8 borgmoer 3. Vlakke sluitring •...
  • Seite 35 2 2 2 2 2 De grascontainer monteren N.B.: Indien gewenst kunt u de grascontainer samen met iemand anders in elkaar zetten om het assembleren makkelijker te maken. • Gebruik de bijgeleverde vier (4) rijtuigschroeven van 1/ 4 x 50,8 mm en de borgmoeren om de voorste en de onderste buizen van de grascontainer te monteren.
  • Seite 36 2 2 2 2 2 PARA AJUSTAR LAS RUEDAS CALIBRADORAS TO ADJUST GAUGE WHEELS Gauge wheels are properly adjusted when they are slightly Las ruedas calibradoras están bien ajustadas cuando se off the ground when mower is at the desired cutting height in encuentran un poco a distancia del terreno al mismo tiempo operating position.
  • Seite 37: Anordnung Der Bedienungseinrichtungen

    3. Functional description. 3. Funktionsbeschreibung. 3. Description du fonctionnement. 3. Descripción del funcionamiento. 3. Funzionamento. 3. Beschrijving van functies Positioning of controls Anordnung der Bedienungseinrichtungen 1. Light Switch. 1. Lichtschalter. 2. Throttle/Choke control. 2. Gas- und Kaltstarthebel. 3. Brake and clutch pedal. 3.
  • Seite 38: Emplacement Des Commandes

    3 3 3 3 3 Emplacement des commandes Comandi 1. Interrupteur des phares. 1. Interruttore luci. 2. Commande de et starter. 2. Comando gas/choke. 3. Pédale de frein et d'embrayage. 3. Pedale freno/frizione. 4. Embrayage et débrayage de la boîte de vitesses. 4.
  • Seite 39 3 3 3 3 3 1. Light switch 1. Lichtschalter 1. Interrupteur des phares 1. Interruptor de alumbrado 1. Interruttore luci 1. Schakelaar verlichting 2. Throttle and choke control The accelerator control regulates the motor speed and also the speed of the blades. If the lever is in its forward position the choke function is connected.
  • Seite 40: Brems- Und Kupplungspedal

    3 3 3 3 3 3. Brake and clutch pedal When the pedal is pushed down the brake is applied and the motor is disengaged. 3. Brems- und Kupplungspedal Beim Vorwärtsdrücken des Pedals wird das Fahrzeug abge- bremst. Gleichzeitig wird der Motor ausgekuppelt und das Fahrzeug rollt aus.
  • Seite 41 3 3 3 3 3 4. Embrayage et débrayage de la boîte de vitesses Le levier peut être amené à quatre positions différentes: N = Position neutre (pas d'entraînement) S = Conduite lente F = Conduite rapide R - Marche arrière Le levier peut passer progressivement de S à...
  • Seite 42: Schnelles Heben Und Senken Des Mähaggregats

    3 3 3 3 3 5. Attachment clutch switch 5. Ein- und Ausschalten des Mähaggregats 5. Embrayage et débrayage de l'unité de coupe 5. Acoplamiento y desacoplamiento de la unidad de corte 5. Leva inserimento tagliaerba. 5. Aan- en uitschakeling van de maaikast 6.
  • Seite 43 3 3 3 3 3 START 7. Ignition Lock 7. Cerradura de encendido There are three different positions for the ignition key: La llave de encendido puede hallarse en tres posiciones diferentes: All electric current broken. OFF: Corriente eléctrica cortada Electric current connected.
  • Seite 44: Freno Di Parcheggio

    3 3 3 3 3 8. Freno de estacionamiento Aplique el freno de estacionamiento de la manera siguiente: 1. Apriete el pedal del freno hasta el fondo. 2. Tire de la palanca de freno hacia arriba y manténgala en esta posición. 3.
  • Seite 45: Mähhöheneinstellung

    3 3 3 3 3 10. Mähhöheneinstellung Mit dem Drehknopf wird die Mähhöhe eingestellt. Rechtsdreh- ung bewirkt größere Mähhöhe. Der Drehknopf kann leichter gedreht werden, wenn der Hebel für schnelles Heben/ Senken des Mähaggregats gleichzeitig zurückgezogen wird. 10. Réglage de la hauteur de coupe Pour réglar la hauteur de coupe, tirer le levier d’abaissement/ relevage du carter de coupe vers l’arrière, et tourner simultanément la molette de réglage.
  • Seite 46 4. Before starting. 4. Maßnahmen vor dem Anlassen. 4. Avant de démarrer. 4. Antes del arranque. 4. Prima dell’avviamento. 4. Maatregelen vóór het starten. Filling up Reposición de combustible The engine should be run of pure (not oil mixed) unleaded El motor ha de funcionar con gasolina pura (sin mezcia de petrol.
  • Seite 47 4 4 4 4 4 Nivel de aceite Oil level La tapa combinada para el llenado de aceite y para la varilla The combined oil refilling cap and the oil stick is accessible de nivel queda accesible después de haber levantado when the bonnet is lifted forwards.
  • Seite 48 5. Driving. 5. Betrieb. 5. Conduite. 5. Conducción. 5. Guida. 5. Rijden. Démarrage du moteur S’assurer que le carte de coupe est en position de transport (en position supérieure) et que le levier pour l’embrayage/ débrayage du carte de coupe est en position de débrayage. Arranque del motor Asegúrese de que el equipo de corte está...
  • Seite 49 5 5 5 5 5 Tourner la clef de contact en position de démarrage “START”. ATTENTION! Ne pas faire tourner le démarreur pendant plus de 5 secondes à la fois. Si le moteur ne démarre pas, attendre une dizaine de secondes avant de refaire un essai de démarrage. Ponga la llave de encendido en la posición de arranque ”START”.
  • Seite 50 5 5 5 5 5 IMPORTANT! COLD STARTING FOR HYDRO ¡IMORTANTE! EMPIESO EN FRÍO PARA HIDROSTÁTICO IMPORTANT: COLD STARTING FOR HYDRO (BELOW PARA TEMPERATURA MENOR QUE 40°F (4°C). 40°F[4°C]) - AFTER STARTING ENGINE AND BEFORE DESPUÉS DE HABER EMPESADO EL MOTOR Y ANTÉS DRIVING, LET TRANSMISSION WARM UP FOR ONE (1) DE CONDUCIR, DEJE QUE LA TRASMICIÓN SE CALIENTE MINUTE BY PLACING MOTION CONTROL LEVER IN NEU...
  • Seite 51: Transmissie Ontluchten

    5 5 5 5 5 • Débrayez la transmission en mettant la commande de SPURGO DELLA TRASMISSIONE roue libre dans la position de la marche à roue libre Per assicurare il buon funzionamento prestazionale del (Référez-vous à la section de “POUR TRANSPORTER“ trattore, si raccomanda di spurgare la trasmissione prima di dans cette section de ce manuel).
  • Seite 52: Betrieb

    5 5 5 5 5 NOTE! NOTA! The machine is equipped with a safety switch which La máquina tiene un interruptor de seguridad que corta la immediately breaks the current to the engine if the driver corriente al motor si el conductor sale del asiento con el leaves the seat with engine running and with the connection/ motor en marcha y con la palanca de acoplamiento/ disconnection lever in position “connection”.Your...
  • Seite 53: Cutting Tips

    5 5 5 5 5 Consejos para el corte Cutting tips • Limpie el césped de piedras y otros objetos que puedan • Clear the lawn from stones and other objects which can ser proyectados por las cuchillas. be thrown away by the blades. •...
  • Seite 54: Entleeren Der Grasfangbox

    5 5 5 5 5 Pour vider le bac: Votre tracteur est équipé d'une alarme sonore qui vous avertit lorsque le bac est plein. Pour arrêter l'alarme, débrayer les lames. • Amener le tracteur là ou vous souhaitez le décharger. •...
  • Seite 55: Nutzung Von Mulchfunktion, Heckauswurf (Deflektor) Oder Sammelfunktion (Grasfangbox)

    5 5 5 5 5 • Entfernen Sie den Deflektor oder den Mulcheinsatz (fals To convert mower dieser montiert ist). (Converting to mulching or rear discharging will require the • Installireen Sie den Adapter des Mähdecks. purchase of these accessories.) •...
  • Seite 56 5 5 5 5 5 • Monte el deflector sobre la placa posterior atornillando • Inserire il convogliatore dell'erba nell'apertura della los cuatro (4) tornillos de mariposa en los orificios piastra posteriore e fissarlo al piatto. aterrajados encontr·ndose en la placa trasera. •...
  • Seite 57: Abstellen Des Motors

    5 5 5 5 5 Arrêt du moteur Amener la comande de gaz en position (ralenti), vers le bas “ ”. Débrayer les lames, Relever le carter de coupe, Laisser le moteur tourner au ralenti pendant 1 à 2 minutes pour qu'il refroidisse avant de l'arrêter aprés un travail pénible, puis tourner la clef de contact en position (off).
  • Seite 58 6. Maintenance, adjustment. 6. Wartung (Instandhaltung), Einstellung. 6. Entretien, réglages. 6. Mantenimiento, ajuste. 6. Manutenzione. 6. Onderhoud, afstelling. WARNING! ADVERTENCIA! Antes de proceder a efectuar el servicio en el motor o en el Before servicing the engine or cutting unit the following shall equipo de corte, hay que hacer lo siguiente: be carried out: •...
  • Seite 59: Capot Moteur

    6 6 6 6 6 Capot moteur • Soulever le capot. • Déconnecter les phares, • Se plaver devant le tracteur, prendre le capot par les côtés, l'incliner à l'avant, puis le soulever pour le libérer des encoches qui le fixent au châssis, •...
  • Seite 60 6 6 6 6 6 Maintenance Mantenimiento NOTE: Periodic maintenance should be performed on a NOTA: El mantenimiento periódico ha de hacerse con regular basis in order to keep your tractor in good running regularidad a fin de mantener el tractor en buen estado. condition.
  • Seite 61: Mantenimiento Del Motor

    6 6 6 6 6 Afin de réaliser l’entretien du moteur Se référer au mode d’emploi du moteur. Soupape de vidange de l’huile • Enlever le bouchon et introduire le tube de vidange. • Afin d’ouvrir la soupape, appuyer légèrement, tourner en sens contraire aux aiguilles d’une montre et enlever.
  • Seite 62 6 6 6 6 6 SERVICE RECORD FILL IN DATES AS YOU COMPLETE REGULAR SERVICE Every 8 Every Every Every Every Needed hours 25 hours 50 hours 100 hours 200 hours • Change engine oil ....................• Lubricate pivot points ................ •...
  • Seite 63 6 6 6 6 6 COMPE-RENDU D'ENTRETIEN INDIQUER LES DATES APRÈS CHAQUE MESURE D'ENTRETIEN Selon Toutes Toutes Toutes Toutes Toutes besoins les 8 h. les 25 h. les 50 h. les 100 h. les 200 h. • Vidange d'huile moteur ..................•...
  • Seite 64 6 6 6 6 6 DATI DI SERVIZIO COMPILARE OGNI QUALVOLTA SI ESEGUE UN REGOLARE SERVIZIO Necessità Ogni Ogni Ogni . Ogni Ogni 8 ore 25 ore 50 ore 100 ore 200 ore • Cambio dell'olio ....................• Lubrificazione punti di articolazione ..........•...
  • Seite 65 6 6 6 6 6 Blades Cuchillas The blades should be sharp to achieve best cutting results. Las cuchillas han de estar afiladas para proporcionar el Sharpening can be carried out with a file or grinding disc. mejor corte posible. El afilado puede hacerse con lima o muela.
  • Seite 66: Messerbalkenbohrung Mit Fünfeckige Aussparung

    6 6 6 6 6 5 Star pattern blade The center of this blade has a five (5) star pattern. The bolt that attaches this blade has normal Right Hand threads that loosens by turning ( ) counter-clockwise and tightens by turning ( ) clockwise.
  • Seite 67 6 6 6 6 6 Cuchilla de orificio-estrella de cinco puntas El centro de esta cuchilla se parece a una estrella de cinco (5) puntas. El tornillo que liga esta cuchilla es dextrogiro normal y se desentornilla en direcciûn opuesta a la vuelta de la aguja del reloj y se emperna dandole vueltas en la direcciûn de la aguja del reloj.
  • Seite 68 6 6 6 6 6 For best results mower blades must be kept sharp. Replace Para alcanzar resultados mejores las cuchillas de la bent or damaged blades. segadora hay que mantenerlos afilados. sustituya las cuchillas torcidos y estropeados. BLADE REMOVAL C'MO DESMONTAR LAS CUCHILLAS •...
  • Seite 69 6 6 6 6 6 1. Meet de afstand tussen de remnokas en de stelmoer. 2. De afstand dient 40mm te zijn. 43 mm 3. Stel zonodig de afstand bij, door eerst borgmoer (2) los te draaien en daarna bijstellen met stelmoer (1). Brakes The brakes are located inside the right rear wheel.
  • Seite 70: Demontage Des Mähdecks

    6 6 6 6 6 Dismantling of the cutting unit Work from the right side of the machine. 1. Take off the belt from the engine pulley (1). 2. Remove the two rear retainer springs (2) and knock off the axle taps with a hammer.
  • Seite 71: Einbau Des Mähdecks

    6 6 6 6 6 3. Remove the retainer springs (3), (4), (5) and axles. Assembly of the cutting unit 4. Pull the lever for lifting/lowering the cutting unit back- • Push in the cutting unit under the machine. wards. •...
  • Seite 72: Auswechsein Des Treibriemens Für Das Mähaggregat

    6 6 6 6 6 Changement de la courroie d'entrainment du carter de coupe 1. Déposer le carter de coupe (voir chapitre précédent). 2. Retirer la courroie en partant de la poulie gauche du carter de coupe, puis des autres poulies. 3.
  • Seite 73: Einstellung Des Mähaggregats

    6 6 6 6 6 Adjustment of the cutting unit A. In the direction of travel 1. Check that the air pressure is correct in all four tires. To achieve best cutting results the cutting unit’s front edge 2. Make sure that the machine is on a horizontal surface. (B) should be about 10 mm (0.375") lower than the back 3.
  • Seite 74 6 6 6 6 6 REGLAGE TRANSVERSAL • Relever le carter de coupe dans sa position la plus haute. • Calculer la distance au sol à partir des milieux des bords extérieurs gauche et droite du carter de coupe. “A” “A”...
  • Seite 75: Auswechsein Des Treibriemens

    6 6 6 6 6 Cambio de correa propulsora 1. Desmontar el equipo de corte del tractor. 2. Despiezar el contacto de cable de la conexión eléctrica (1). 3. Desmontar el limitador de movimientos del acoplamiento (2). 4. Aplicar el freno de estacionamiento y tirar hacia arriba de la correa para sacarla de la rueda libre (3), de la acoplamiento (4).
  • Seite 76 6 6 6 6 6 • Den Steuerknüppel in dieser Stellung lassen und den Motor ausschalten; • Nun den Einstellbolzen ganz lösen, während der Steuerknüppel nach wie vor in der genannten Stellung bleibt; • Den Steuerknüppel in die Leerlaufstellung (N) (Verschlußsperre) bringen.
  • Seite 77 6 6 6 6 6 REGOLAZIONE DELLA LEVA DI COMANDO DEL MOVIMENTO DEL MECCANISMO DEL CAMBIO La leva di comando del movimento del meccanismo del cambio è stata impostata al momento della fabbricazione e non richiede pertanto ulteriori regolazioni. • Allentare il bullone di regolazione di fronte alla ruota posteriore destra;...
  • Seite 78 6 6 6 6 6 TRANSAXLE COOLING ENFRIAMIENTO DEL TRANSEJE The fan and cooling fins of transmission should be kept clean Las aletas de enfriamiento y el ventilador de la transmisión to assure proper cooling. tienen que mantenerse limpios para asegurar el enfriamiento adecuado.
  • Seite 79 7. Troubleshooting. 7. Störungssuche. Motor springt nicht an Engine will not start 1. Kraftstoff fehlt im Kraftstofftank. 1. No fuel in fuel tank. 2. Defekte Zündkerze. 2. Plug defective. 3. Defekter Zündkerzenanschluß. 3. Plug connection defective. 4. Schmutz in Vergaser oder Kraftstoffleitung. 4.
  • Seite 80 7. Recherche des pannes. 7. Búsqueda de averías. Le moteur ne démarre pas El motor no arranca 1. Manque d’essence dans le réservoir. No hay combustible en el depósito. 2. Bougie d’allumage défectueuse. 2. La bujía es errónea. 3. Raccord de bougie défectueux. 3.
  • Seite 81 7. Ricerca guasti. 7. Het localiseren van fouten. De motor start niet Il motore non parte 1. Er is geen benzine in de tank. 1. Manca il carburante. 2. De bougie is defect. 2. Difetto di candela. 3. De bougie-aansluiting is defect. 3.
  • Seite 82 8. Storage. 8. Aufbewahrung. 8. Rangement. 8. Conservación. Suivre la procédure suivante une fois la saison terminée: The following steps should be taken when mowing season is over: • Nettoyer toute la machine, spécialement l'intérieur du carter de coupe. Faire les retouches de peinture •...
  • Seite 83 8. Rismessaggio. 8. Stallen. Aan het einde van elk maaisezoen moeten de volgende Al termine della stagione effettuare i seguenti interventi: maatregelen worden genomen: • Pulire tutto il tagliaerba e particolarmente sotto il coper- • Maak de hele machine schoon, in het bijzonder de chio della falciatrice.
  • Seite 84 532175625 Rev. 1 5.18.01 TR Printed in U.S.A. Downloaded from www.Manualslib.com manuals search engine...
