Switching on and measuring
!
Make sure that the reference function is deactivated before
measuring.
The DigiLevel Pro 40/60/80 can measure angles continuously to 360°.
– Switch the DigiLevel Plus on using the on/off switch (1).
– The slope angle is shown in the display (l). If slopes are measured
overhead, the direction of display adjusts automatically.
– The current slope direction is also shown by the symbol (a).
3
Selection of unit of measurement
Button (5) allows the desired unit of measurement to be selected
(° degrees, %, mm/m).
4

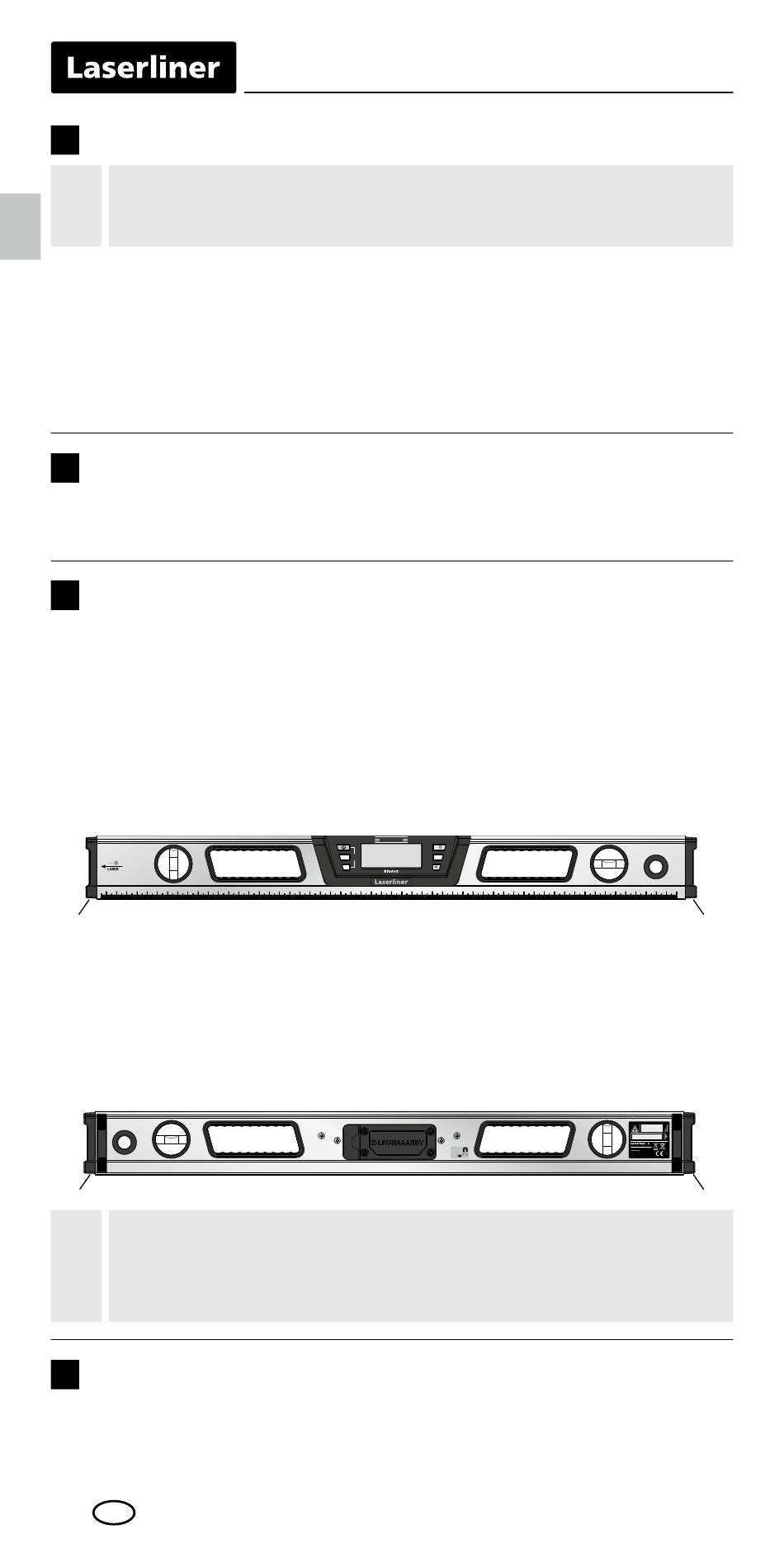

Calibration
1. Place the unit with its measuring edge (13) down on a straight
surface and mark the positions of the unit's ends on the under-
lying surface (see Fig. below). Switch on device (1). To access
calibration mode simultaneously press buttons 1 and 3.
-1- appears on the display.
2. Then press the READ button (1). -1- flashes.
The display then changes to -2-.
2
3
4
5
6
7
8
9
10
11
3. Now turn the unit around horizontally (end-for-end) by 180°
such that its ends are positioned opposite where they previously
were but again exactly at the underlying surface marks (reverse
measurement).
Then press the READ button (1) again. -2- flashes.
The subsequent acoustic signal concludes the process.
!
The unit is properly calibrated when it displays the same
measurement value, i.e. the underlying surface's deviation
from absolute level, in both positions (0° and 180°).
5
HOLD
Hold down the HOLD button (6) to keep displaying the current
measured value.
12
EN
READ
REF
CAL
SET
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
DigiLevel Pro
%
mm/m
HOLD
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
WARNING
With magnet
on the bottom
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
LASERSTRAHLUNG!
NICHT IN DEN STRAHL BLICKEN!
LASERKLASSE 2 · < 1 mW · 635 nm
EN 60825-1:2014/AC:2017
LASER RADIATION! DO NOT STARE
INTO THE BEAM! CLASS 2 LASER
< 1 mW · 635 nm · EN 60825-1:2014/AC:2017
DigiLevel Pro 60
