SIMPLE MDF
Assembly Instructions 05/ 2014
REQUIRES FoLLoWING TooLS:
Allen key (supplied)
8 Steelbolts (supplied)
25 Screws (supplied)
Screwdriver

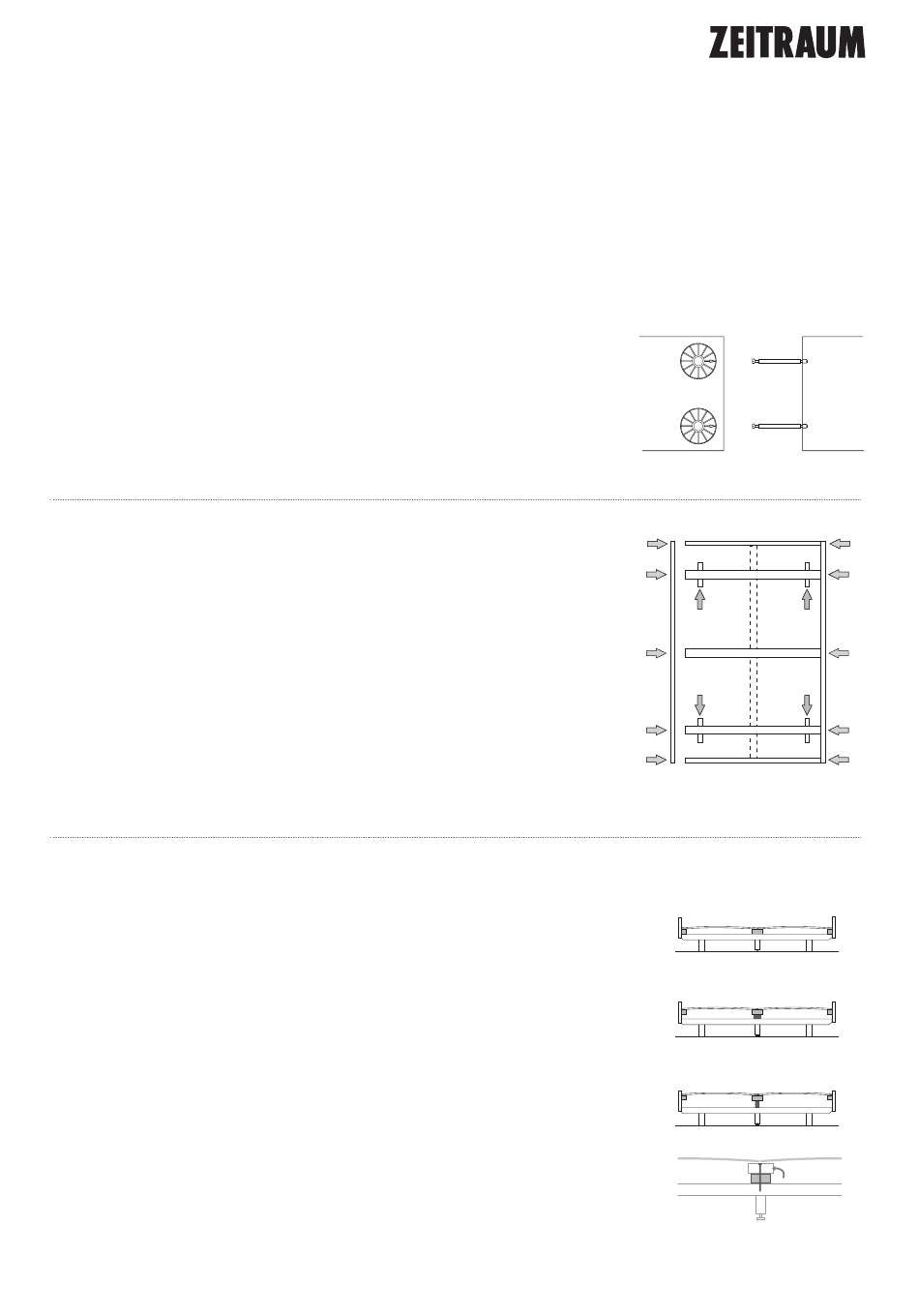

Before mounting, fit all the round joiners into their holes with the
arrows pointing outwards, and screw the bolts into the side pieces.
JoINING THE HEAD AND SIDE ELEMENTS:
The assembly will be easier if the bed is joined together lying on its side.
(When turning take care of the base boards!)
1. Fit the first side of the bed to the head-piece and tighten the joiners.
Make sure that all the dowels are fitted, and that the parts are drawn together
parallel to ensure a perfect fit.
2. Mount the feet to the transverse supports .
3. Fit the transverse supports to the first bed side.
4. Connect the foot-piece to the first bed side.
5. Fit the second side to the head, foot, and transverse pieces.
Ensure that the completed bed is standing squarely, and tighten all the joiners once more.
SUPPoRTS FoR SLATTED BASE:
Please note that the supports can be fixed at three different heights. Use the confirmat
screws to fix the supports to the side elements. We recommend that the mattress
stands about 2 inches above the bed sides. With mattresses of more than 140cm in width
the middle support must be used. If necessary use the distance piece and the screws for
the right height. For Position 2 use the distance piece in flat direction, for Position 3 rotate
the distance piece upright.
Afterwards fit the height-adjustable foot. Please set the hight of the adjustable foot 1-2 cm
lower than the other feet.
