Instructions for installation and use

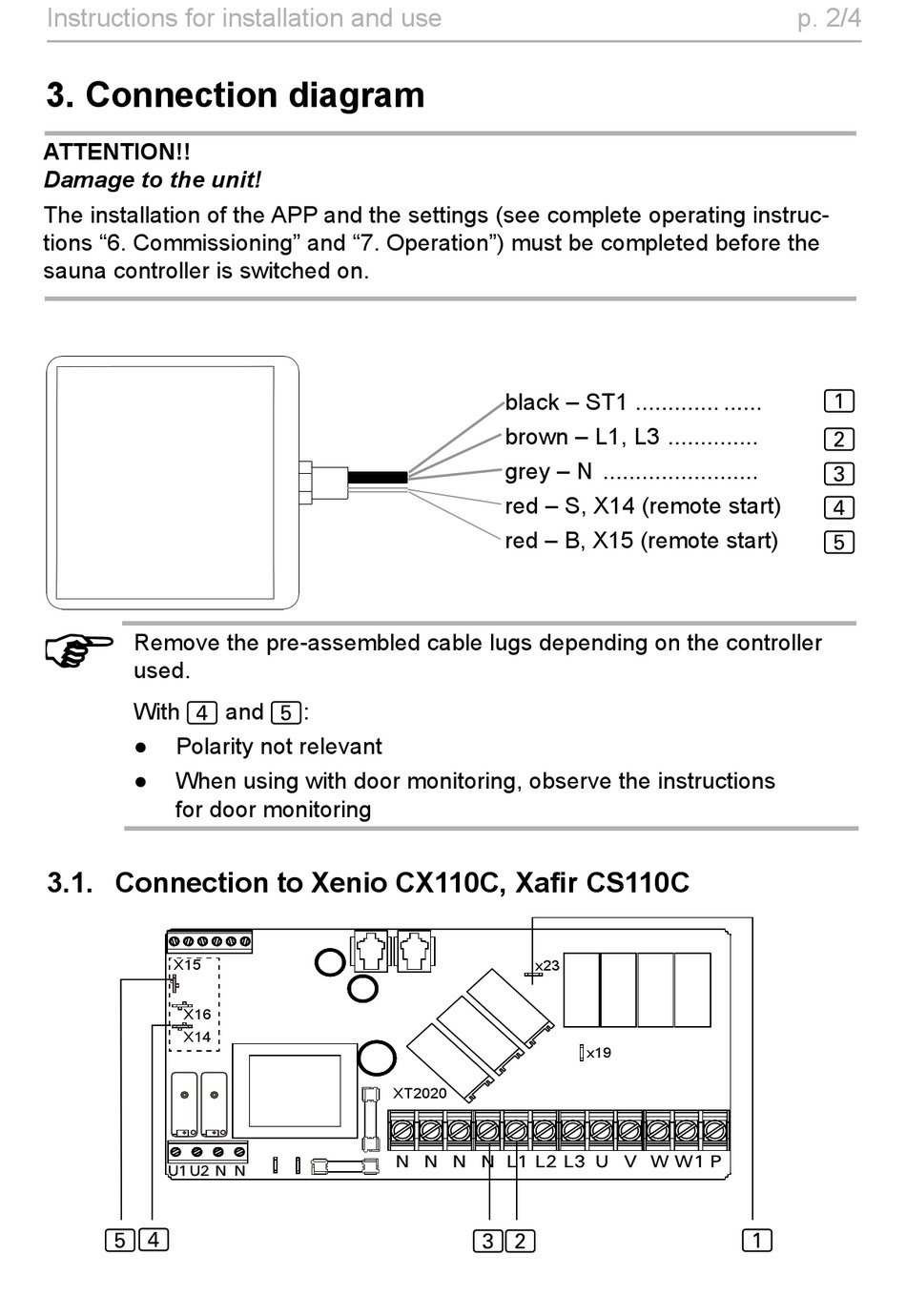

3. Connection diagram

ATTENTION!!
Damage to the unit!
The installation of the APP and the settings (see complete operating instruc-
tions "6. Commissioning" and "7. Operation") must be completed before the
sauna controller is switched on.
Remove the pre-assembled cable lugs depending on the controller
used.
With 4 and 5:
● Polarity not relevant
● When using with door monitoring, observe the instructions
for door monitoring
3.1. Connection to Xenio CX110C, Xafir CS110C
X15
X16
X14
5 4
black – ST1 ............. ......
brown – L1, L3 ..............
grey – N ........................
red – S, X14 (remote start)
red – B, X15 (remote start)
x23
XT2020
3 2
x19
1
p. 2/4
1
2
3
4
5
