TVR 45HD Quick Start Guide

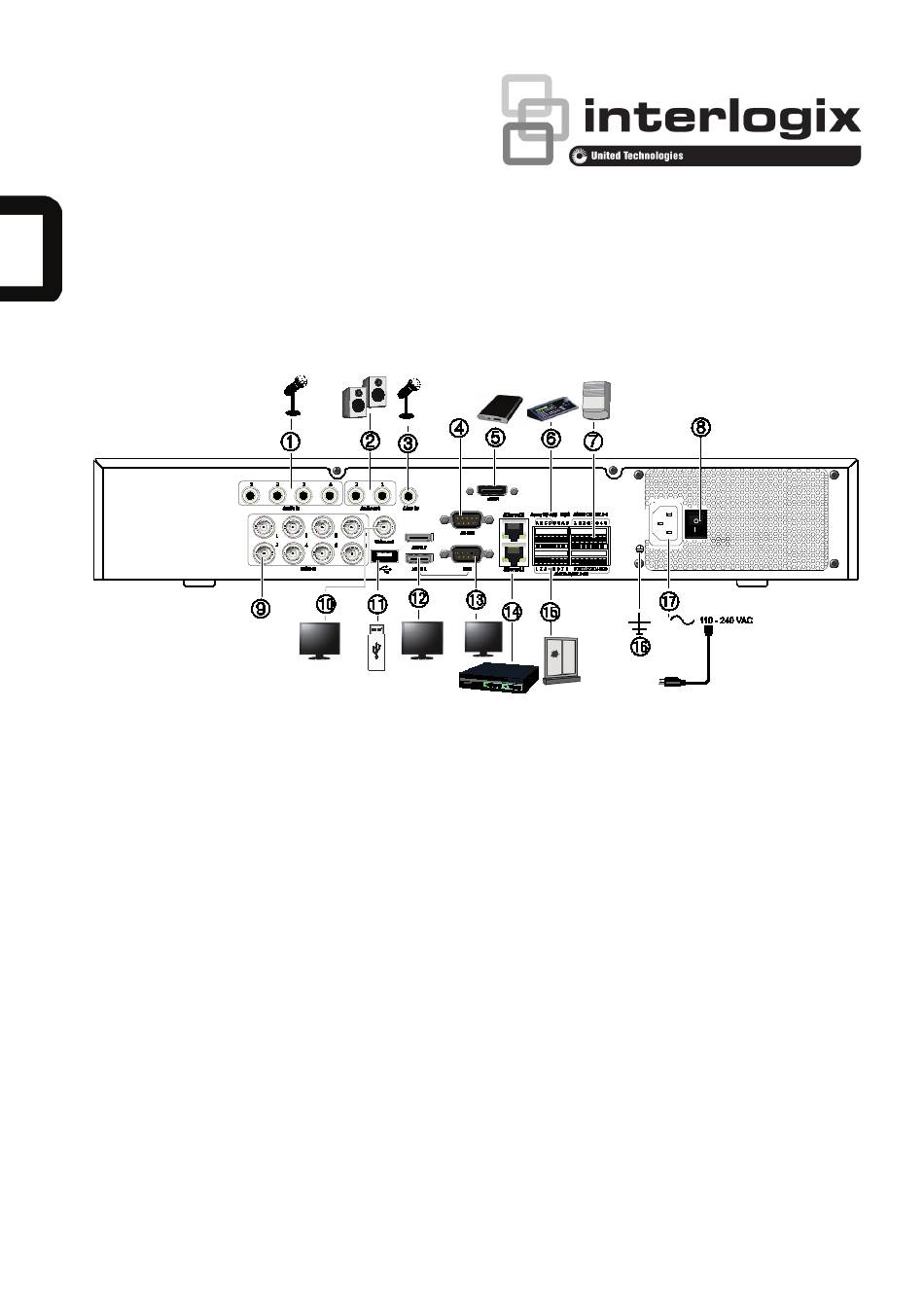

Figure 1: Back panel connections (8-channel model shown)
1. Connect four audio inputs to RCA connectors.
2. Connect to speakers for audio output.
3. Line In.
4. Connect to a RS-232 device.
5. Connect eSATA.
6. Connect to a RS-485 device such as a PTZ
camera or a keypad.
7. Connect up to four alarm outputs.
8. Power switch (on/off).
9. Connect up to 8 analog cameras to BNC-type
connectors (depends on the recorder model).
Default IP address: 192.168.1.82
P/N 1073290-EN • REV C • ISS 09MAY17
10. Connect to a BNC monitor (event monitor only).
11. Connect to an optional USB device such as a
mouse, CD/DVD burner or HDD.
12. Connect to a HDTV. The HDMI connection
supports both digital audio and video.
13. Connect to a VGA monitor.
14. Connect to a network.
15. Connect up to 16 alarm inputs.
16. Connect to ground.
17. Connect a power cord to the recorder (included).
Werbung
Inhaltsverzeichnis
Verwandte Anleitungen für Interlogix TVR 45HD
Inhaltszusammenfassung für Interlogix TVR 45HD
- Seite 1 TVR 45HD Quick Start Guide Figure 1: Back panel connections (8-channel model shown) 1. Connect four audio inputs to RCA connectors. 10. Connect to a BNC monitor (event monitor only). 2. Connect to speakers for audio output. 11. Connect to an optional USB device such as a 3.
- Seite 2 Menu and Menu: Enter/exit the main menu. Search buttons Search: In live view mode, enter the advanced search menu. Status LEDs Power: A steady green light indicates the recorder is working correctly. Red indicates a fault. TVR 45HD Quick Start Guide...
- Seite 3 Also use to scroll between calendar months and to navigate in a text field. Direction The DIRECTION buttons are used to navigate between different fields and items in menus. Enter button The ENTER button is used to confirm selection in any of the menu modes. TVR 45HD Quick Start Guide...
-
Seite 4: Package Contents
Ensure that the unit is in a well-ventilated Package contents area. • Do not expose the unit to rain or moisture. The TruVision DVR 45HD (model TVR 45HD) is shipped with the following items: Quick install • IR (infrared) remote control •... -
Seite 5: First-Time Use
Place the two AAA • DHCP: Disabled by default. batteries in the remote control. • IP address: 192.168.1.82 • Subnet mask: 255.255.255.0 • Gateway address: 192.168.1.1 • Server Port: 8000 TVR 45HD Quick Start Guide... -
Seite 6: Live View Mode
- Or - Provides access to logout, Menu • Right-click the mouse and select reboot and shutdown options. from the pop-up menu. TVR 45HD Quick Start Guide... -
Seite 7: Specifications
10 to 90% Dimensions (W x H x D): TVR 4508HD 445 × 390 × 70 mm TVR 4516HD (17.5 × 15.3 × 2.7 in.) Weight (without HDD): ≤ 5.0 kg (11.02 lb.) TVR 4508HD TVR 4516HD TVR 45HD Quick Start Guide... - Seite 8 © 2017 United Technologies Corporation. All rights reserved. Informationen hierzu finden Sie auf der folgenden Website: www.recyclethis.info. Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved Απόρριψη εξοπλισμού Προϊόντα που φέρουν σήμανση με αυτή την ένδειξη δεν πρέπει να...
