6.2

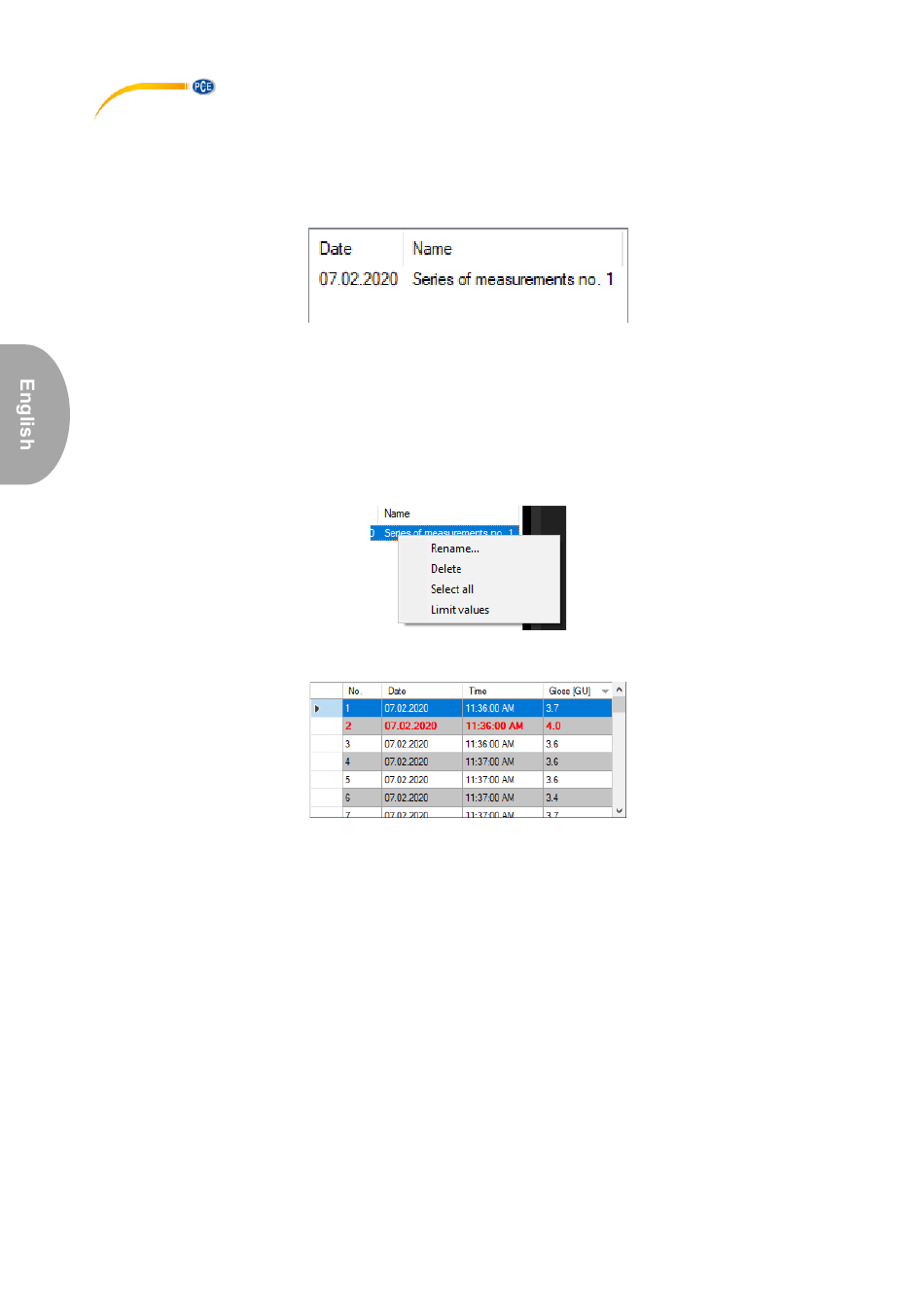

List of measurement series

In the left part of the main window all series of measurements currently available in the software
are listed. In the "Date" column, you can find the date of the first measurement and in the
"Name" column, you can see the name given at the time of the import.
Depending on what series of measurements has been selected, the graphics, the chart and also
the statistical data are updated. The status bar also shows the currently set limit values for the
respective series of measurements.
A right click allows you to rename a series of measurements, to select all series of
measurements from the list, to delete a series of measurements or to set the limit values for the
series of measurements.
6.3

Numerical display

In the lower part of the main window, all measured values are tabulated.
The chart can be sorted by columns by clicking on the respective column heading
("No.", "Date", "Time" and "Gloss [GU]").
If the font of a line is highlighted in red and bold, this indicates a deviation of the gloss value from
the set limit range.
