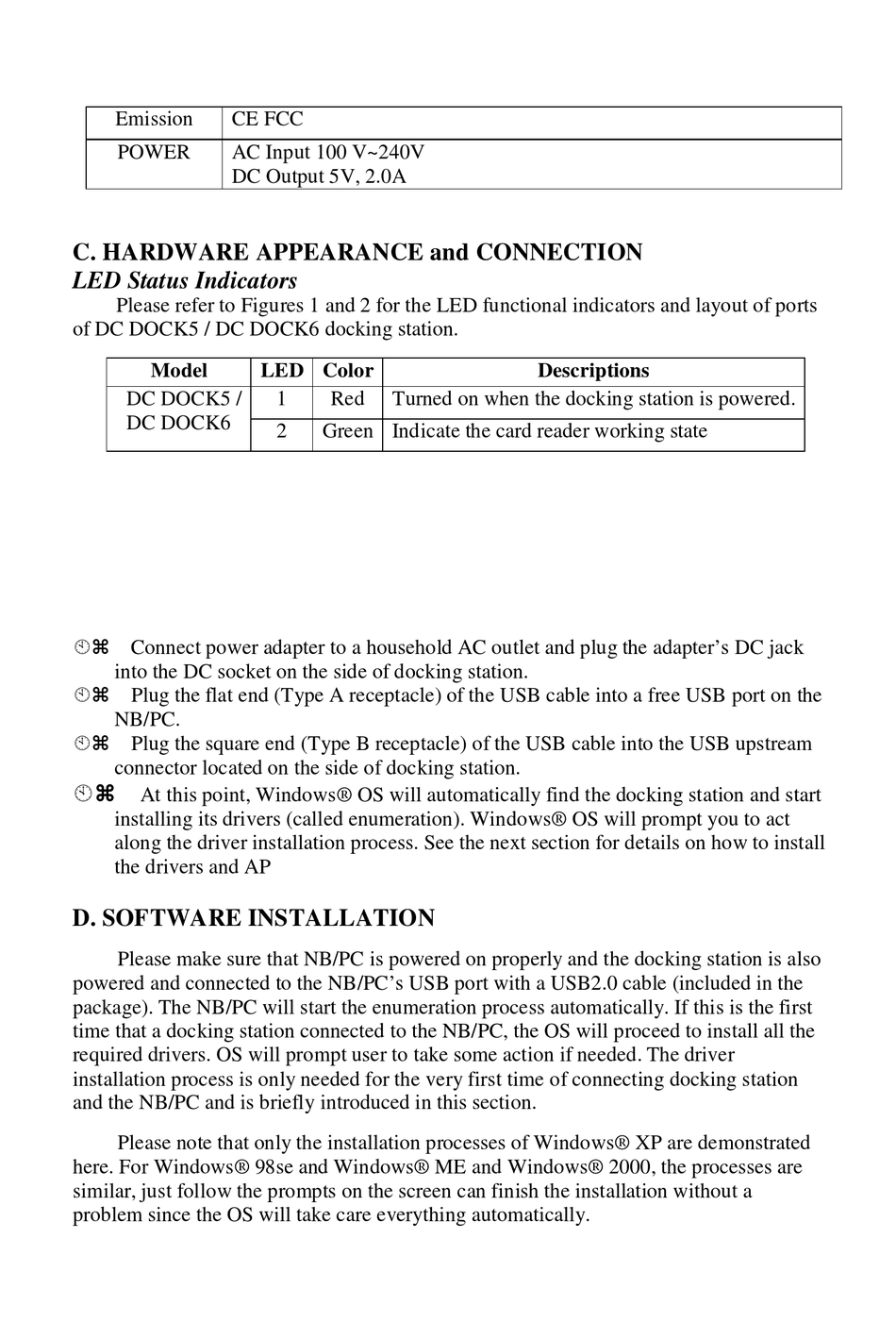

Emission CE FCC
POWER AC Input 100 V~240V
DC Output 5V, 2.0A
C. HARDWARE APPEARANCE and CONNECTION
LED Status Indicators
Please refer to Figures 1 and 2 for the LED functional indicators and layout of ports
of DC DOCK5 / DC DOCK6 docking station.
Model
DC DOCK5 /
DC DOCK6
Àz Connect power adapter to a household AC outlet and plug the adapter' s DC jack
into the DC socket on the side of docking station.
Àz Plug the flat end (Type A receptacle) of the USB cable into a free USB port on the
NB/PC.
Àz Plug the square end (Type B receptacle) of the USB cable into the USB upstream
connector located on the side of docking station.
Àz
At this point, Windows® OS will automatically find the docking station and start
installing its drivers (called enumeration). Windows® OS will prompt you to act
along the driver installation process. See the next section for details on how to install
the drivers and AP
D. SOFTWARE INSTALLATION
Please make sure that NB/PC is powered on properly and the docking station is also
powered and connected to the NB/PC' s USB port with a USB2.0 cable (included in the
package). The NB/PC will start the enumeration process automatically. If this is the first
time that a docking station connected to the NB/PC, the OS will proceed to install all the
required drivers. OS will prompt user to take some action if needed. The driver
installation process is only needed for the very first time of connecting docking station
and the NB/PC and is briefly introduced in this section.
Please note that only the installation processes of Windows® XP are demonstrated
here. For Windows® 98se and Windows® ME and Windows® 2000, the processes are
similar, just follow the prompts on the screen can finish the installation without a
problem since the OS will take care everything automatically.
LED Color
1 Red Turned on when the docking station is powered.
2 Green Indicate the card reader working state
Descriptions
