Outrigger Feet & Spike Installation (DFR52 Only)
Using the included outtrigger feet provide a wider support base for speaker cabinet. The included spikes
improve stability on uneven surfaces and thickly carpeted floors. Please, use cution when dealing with spikes as
they are sharp.
IMPORTANT! In order to prevent scratching or damage the cabinet, turn the speaker upside down onto a soft
surface while you attach the outrigger feet and spikes. We highly recomend a second person help with this
process.

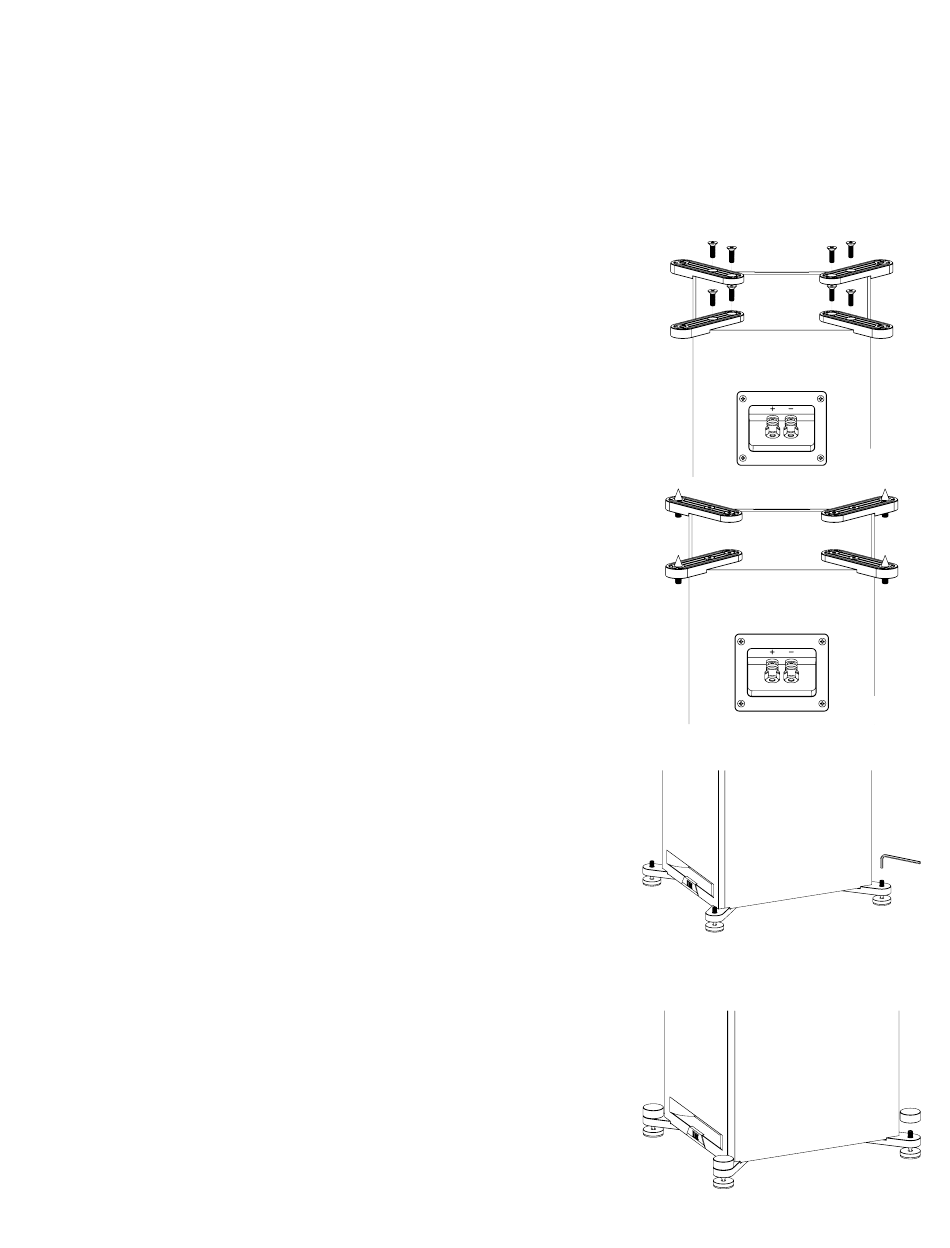

A. Attach the outrigger feet with provided machine screws (see fig.A).
B. Screw in the spikes as shown in FIG.B. The speaker can now be
turn back over. Please, be careful when handling the speaker with
the spikes installed. If you have hard wood tile floors, please usethe
provided floor discs (fig.B).
C. Using the supplied allen wrench adjust the height of the spikes until
the speaker sits level and all four spikes are toching the floor (fig.C).
D. Once the speaker is level, use the supplied covers to lock the
spikes into place (fig.D).
ELAC Debut Reference Speakers | www.elac.com | Page 4
FIG.A
FIG.B
FIG.C
FIG.D
