Calix BC 1207 Handbuch

Part no. 2200492
9
8
5
3
7
11
5
6
4
1 Anslutningssladd MS 8 Kupévägguttag
Liitäntäjohto / Connecting Sisätilapistorasia / Cab
cable / Anschlusskabel wall socket / Heizlüfter-
Steckdose
2 Intagskabel MK
9 Kupévärmare
Elementtikaapeli / Inlet
cable / Einbaukabel Sisätilanlämmitin / Cab
heater / Heizlüfter
3 Batteriladdare BL
10 App för Calix timer
Akkulaturi / Battery Charger
/ Batterielader Calix-timer applikaatio /
Application for Calix timer /
4 Bluetooth relä
App für Calix Timer
Bluetooth rele / Bluetooth
11 Strålningsskydd
relay / Bluetooth Relais
Lämpöeriste / Heat Shield /
5 Skarvkabel
Hitzeschutz
Jatkokaapeli / Extension
12 Pump
cable / Verlängerungskabel
Pumppu / Pump / Pumpe
6 Grenuttag
Haaroituspistorasia / Multi-
ple socket / Verteilerstück
7 Motorvärmare
Vastusosa / Engine heater /
Motorvor-wärmer
The products comply with the Low Voltage
Directive, 2006/95/EC, the EMC Directive,
2004/108/EC, including amendments by the CE
marking Directive 93/68/CE
10
Product
Battery charger ................................ BC 1207, BC 1207 S
The following harmonised European standards or technical
specifications have been applied:
Standards
EN 60 335-1 ......................SEMKO ..........electrical safety
12
EN 60 335-2-29, SS 4330770 ....SEMKO ..........electrical safety
EN 61204-3:2011 ..............SEMKO ........................ EMC
EN 62233:2008 EMF ..........SEMKO ......................... EMF
– The products comply with the LVD safety standards as per
above.
2
1
We have an internal production control system that ensures
compliance between the manufactured products and the
technical documentation.
As manufacturer, we declare under our sole responsibility
that the equipment follows the provisions of the Directives
stated above.
Calix AB
PO-Box 5026
SE-630 05 Eskilstuna
Sweden
medlem av
member of
mitglied von
Type designation
Test reports issued by Regarding
Eskilstuna, January, 2014
Fredrik Andreassen, President
Phone: E-mail:
+46 (0)16-10 80 00 info@calix.se
Support: E-mail:
+46 (0)16-10 80 90 teknik@calix.se
Fax: Internet:
+46 (0)16-10 80 60 www.calix.se
medlem av
member of
mitglied von

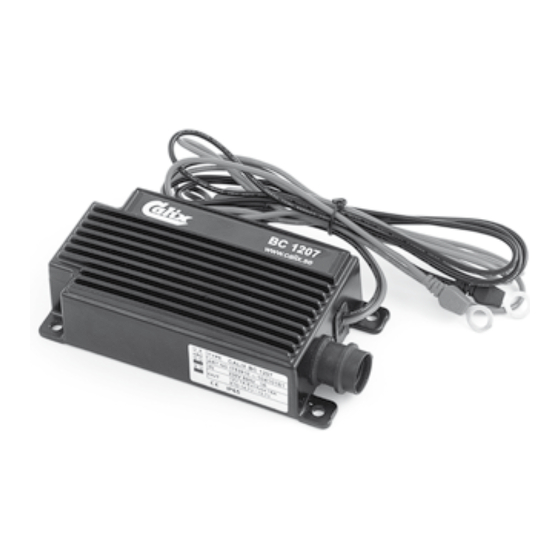

BATTERILADDARE
AKKUVARAAJA
BATTERY CHARGER
BATTERIELADER
BC 1207
BC 1207 S
EFFEKT: Max 1A (230W) / 230V ~
17.05.11.
IP46
12V
7A
