Setup Manual - RDM Isolator

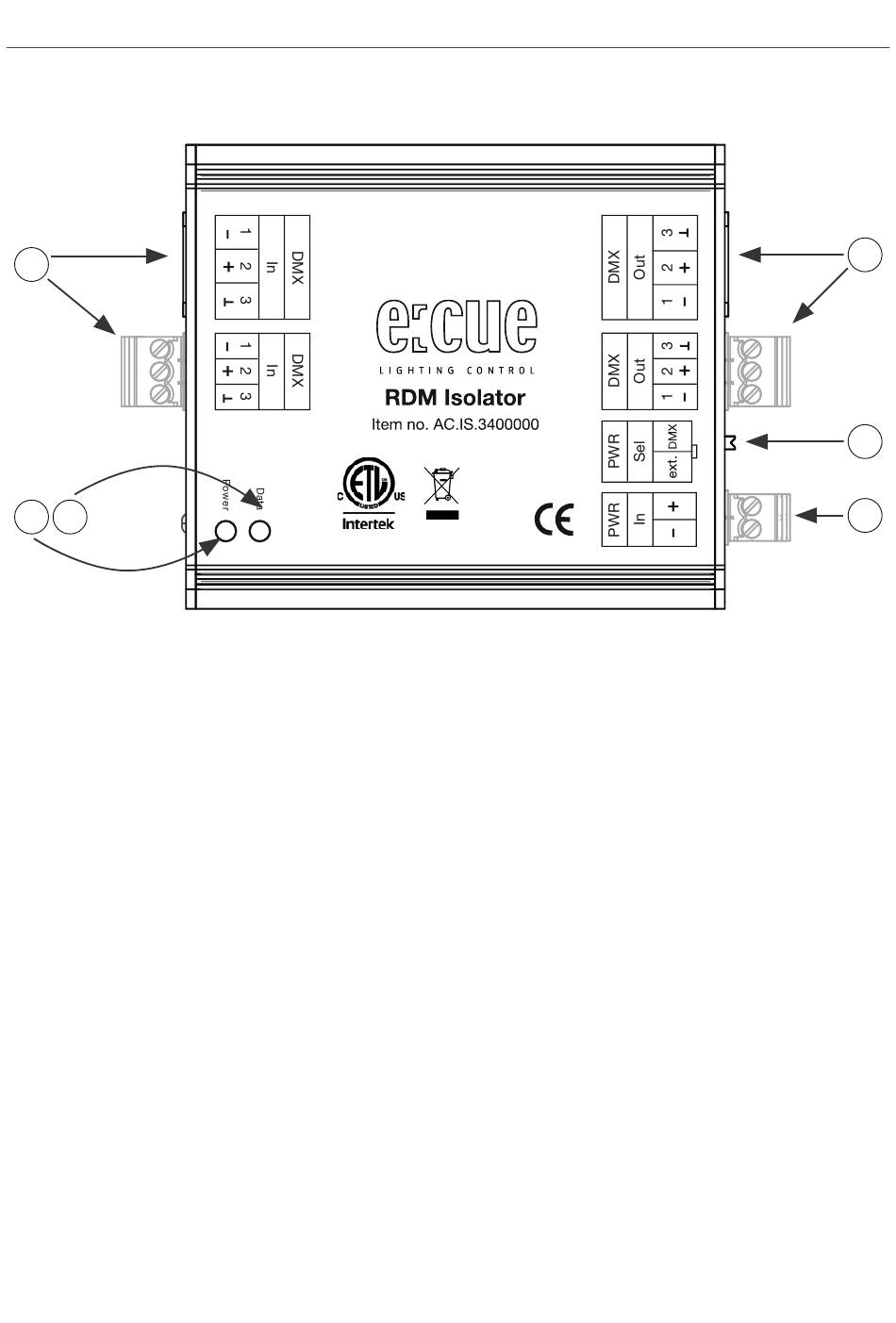

Connections

3
1 2
1. Power LED: Indicates operational device
2. Data LED: Indicates valid data input:
On = valid DMX/epix signal or RDM request detected
Blinking = valid RDM response detected
3. Data input port: Use either RJ45 (Traxon-e:cue pin assignment)
OR screw terminals.
4. Data output port: Use either RJ45 (Traxon-e:cue pin assignment)
OR screw terminals
Biased RDM command port
Power back function on pins 5 (24 V DC) and 3 (GND)
5. Power supply selector: Select „DMX" for Traxon-e:cue power back
function or „ext." for separate power supply unit.
6. Power supply port: If selected supply 9 ... 48 V DC with at least 1W.
8
Power input: 9 ... 48 V DC
Power max: 1 W, 120 mA
T a : 0 ... 50 °C
Made in Germany
4000805
www.traxontechnologies.com
4
5
6
