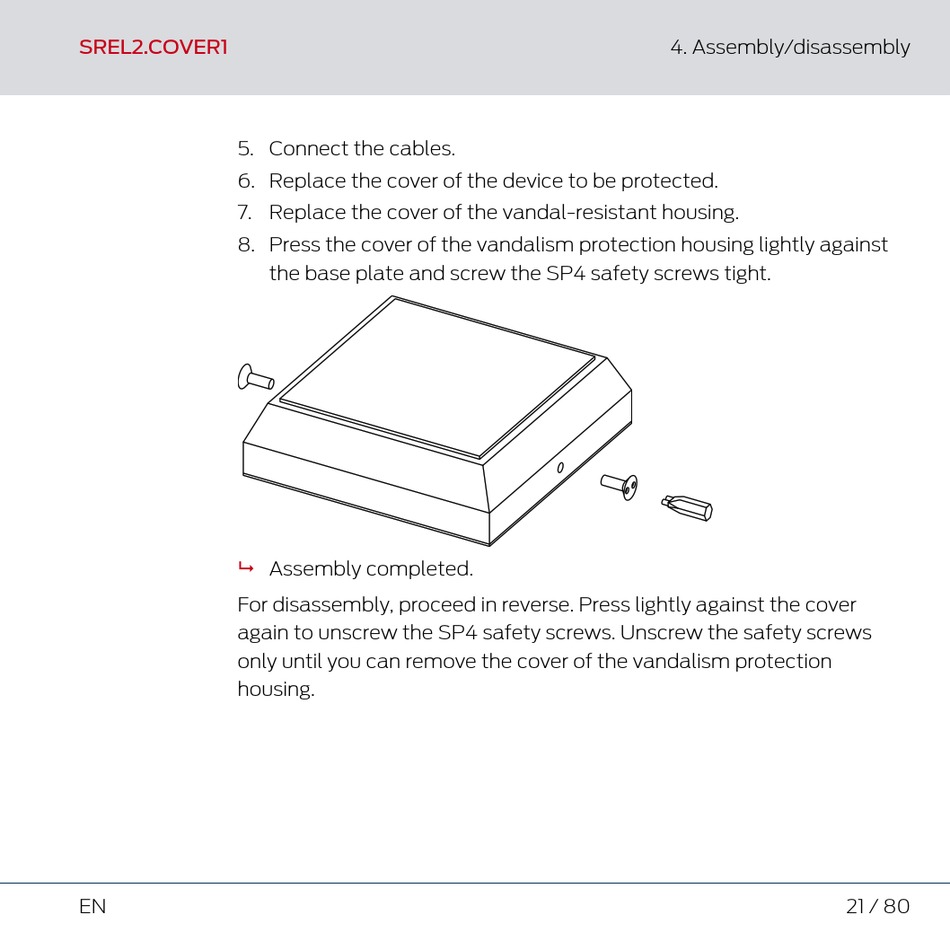

5. Connect the cables.
6. Replace the cover of the device to be protected.
7. Replace the cover of the vandal-resistant housing.
8. Press the cover of the vandalism protection housing lightly against
9
For disassembly, proceed in reverse. Press lightly against the cover
again to unscrew the SP4 safety screws. Unscrew the safety screws
only until you can remove the cover of the vandalism protection
housing.
EN
the base plate and screw the SP4 safety screws tight.
Assembly completed.
