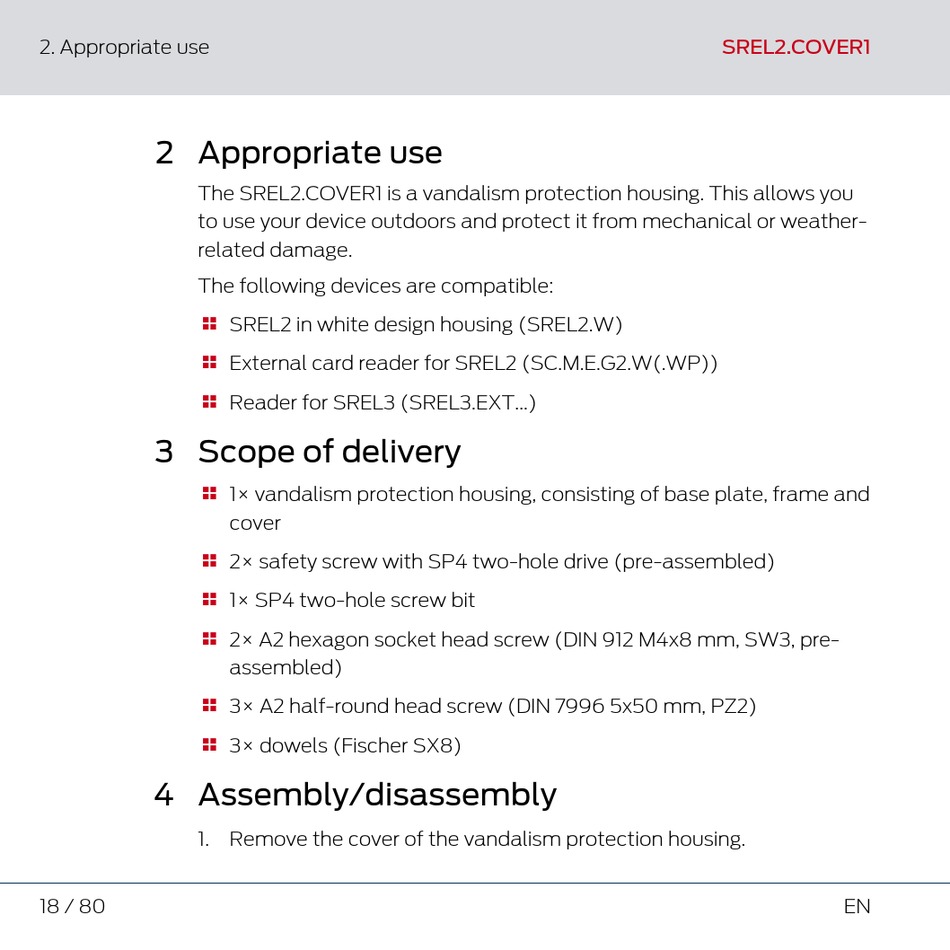

2. Appropriate use

2 Appropriate use
The SREL2.COVER1 is a vandalism protection housing. This allows you
to use your device outdoors and protect it from mechanical or weather-
related damage.
The following devices are compatible:




3 Scope of delivery








4 Assembly/disassembly

1. Remove the cover of the vandalism protection housing.
18 / 80
SREL2 in white design housing (SREL2.W)
External card reader for SREL2 (SC.M.E.G2.W(.WP))
Reader for SREL3 (SREL3.EXT...)
1× vandalism protection housing, consisting of base plate, frame and
cover
2× safety screw with SP4 two-hole drive (pre-assembled)
1× SP4 two-hole screw bit
2× A2 hexagon socket head screw (DIN 912 M4x8 mm, SW3, pre-
assembled)
3× A2 half-round head screw (DIN 7996 5x50 mm, PZ2)
3× dowels (Fischer SX8)
SREL2.COVER1
EN
