SilverCrest graphics tablet SGT 10.6 A2

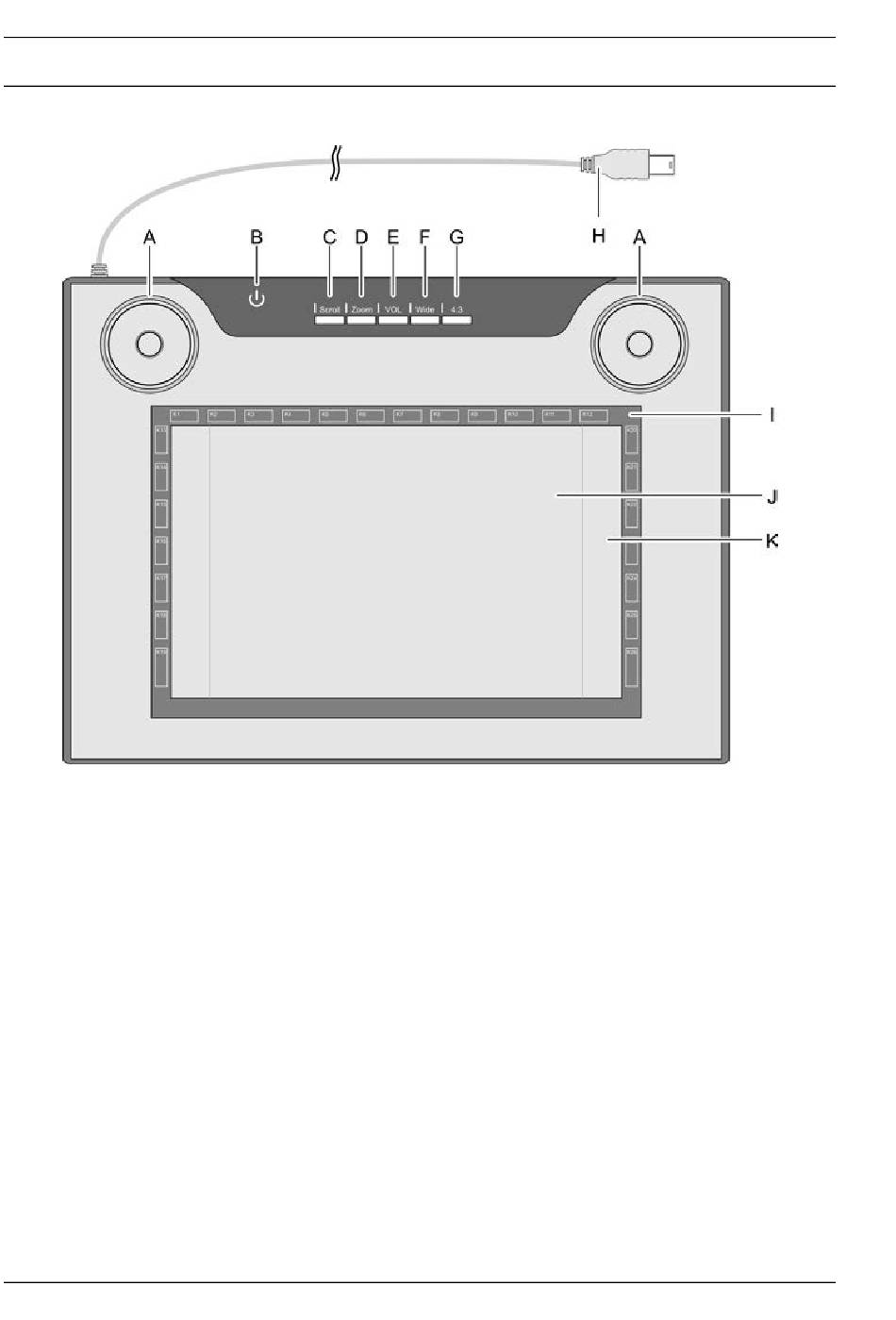

Operating elements and connections

Graphics tablet:
A: Control button (rotating control pad and
button) for scroll, zoom and volume
functions
B: Status indicator
Flashing: No pen nearby
On: Pen not on active area
Off: Pen on active area
C: Select scroll function; LED lights up when
the function is active
D: Select zoom function; LED lights up when
the function is active
E: Select VOL (volume) function; LED lights up
when the function is active
6 - English
F: Switch graphics tablet to widescreen
mode; LED lights up when the function is
active
G: Switch graphics tablet to standard screen
(4:3) mode; LED lights up when the
function is active
H: USB connector
I: Frame with programmable sensor keys
(macro keys)
J: Active area in 4:3 format (when LED "G"
lights up)
K: Active area in widescreen format (when
LED "F" lights up)
