Lenze L-force EWS-Serie Montageanleitung
Lenze L-force EWS-Serie Montageanleitung

Lenze L-force EWS-Serie Montageanleitung

Systemstecker für encoderanschluss (stift)

Werbung

EDKWS0070
.>^ó
L-force Drives
EWS
U
W
V
KTY
U
W
V
KTY
EWS0070, EWS1070, EWS0072, EWS1072
Systemstecker für Encoderanschluss (Stift)
System connector for encoder connection (male)
Connecteur système pour raccordement codeur
(fiche mâle)
Conector de sistema para conexión de encoder
(macho)
Connettore di sistema per collegamento encoder
(maschio)
Montageanleitung
Mounting Instructions
Instructions de montage
Instrucciones para el montaje
Istruzioni per il montaggio
U
V
W
PE

Werbung

loading

Inhaltszusammenfassung für Lenze L-force EWS-Serie

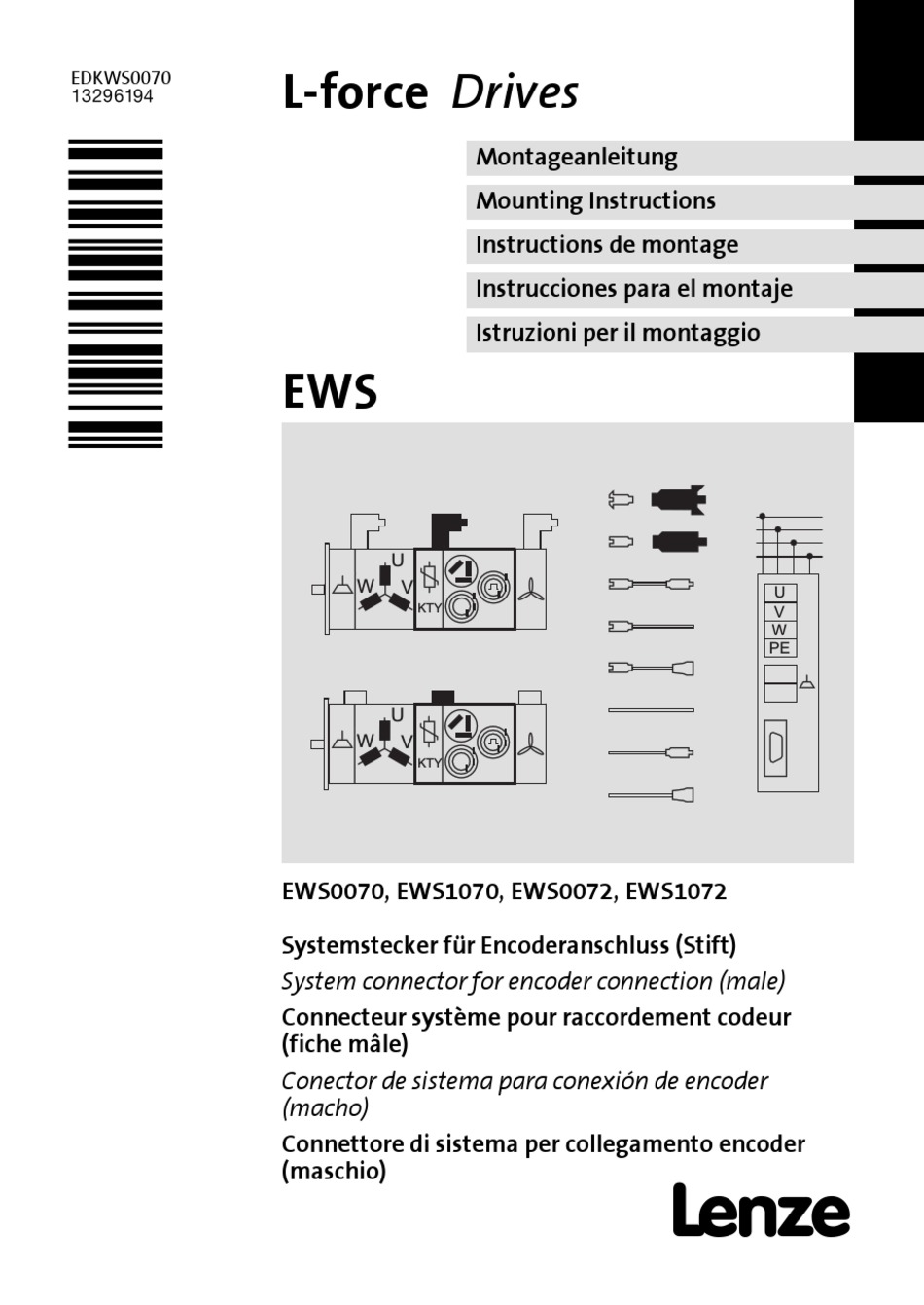

  • Seite 1 L-force Drives EDKWS0070 .>^ó Montageanleitung Mounting Instructions Instructions de montage Instrucciones para el montaje Istruzioni per il montaggio EWS0070, EWS1070, EWS0072, EWS1072 Systemstecker für Encoderanschluss (Stift) System connector for encoder connection (male) Connecteur système pour raccordement codeur (fiche mâle) Conector de sistema para conexión de encoder (macho) Connettore di sistema per collegamento encoder (maschio)
  • Seite 2  Lesen Sie die Dokumentationen zum Grundgerät und zum Motor und das Handbuch ”Systemleitungen und Systemstecker”, bevor Sie mit den Arbeiten beginnen.  Before your start working, please read the documentation for the basic unit and the motor as well as the manual ”System Cables and System Connectors”. ...
  • Seite 3 ews070_02 C0.101.00 (Intercontec) 4 mm 4 mm ews071_07 EWSx070 Æ 9 -13.2 mm ´ 4(2 0.14 mm²) ´ + (2 .0 mm²) ´ [4(2 AWG 26 ´ + (2 AWG 18 ews010_09 EWSx072 Æ 4.0 - 5.0 mm Æ 4.0 - 5.0 mm ´...
  • Seite 4 ews070_09  EDKWS0070 DE/EN/FR/ES/IT 4.1...
  • Seite 5 28 mm 5 mm 0.14 mm² (AWG 26) 1.0 mm² (AWG 18) 7 mm ews070_03  EDKWS0070 DE/EN/FR/ES/IT 4.1...
  • Seite 6 61.004.11 C0.101.00 (Intercontec) ews007_05 4 5 6   0.14 61.004.11 C0.101.00 61.004.11 C0.101.00  EDKWS0070 DE/EN/FR/ES/IT 4.1...
  • Seite 7 B (SIN) (RefSIN) 0.14 mm² (RefCOS) (AWG 26) (COS) 1.0 mm² (AWG 18) Z (-RS485) 0.14 mm² Z (+RS485) (AWG 26) +KTY -KTY ews011_06  EDKWS0070 DE/EN/FR/ES/IT 4.1...
  • Seite 8 1 mm Click! A - A 1 mm Click! ews071_05  EDKWS0070 DE/EN/FR/ES/IT 4.1...
  • Seite 9 5 … 5.5 Nm (44.3 … 48.7 lb-in) 7 … 7.5 Nm (62.0 … 66.4 lb-in) ews070_04  EDKWS0070 DE/EN/FR/ES/IT 4.1...
  • Seite 10 ews069_04 ews069_05  EDKWS0070 DE/EN/FR/ES/IT 4.1...
  • Seite 11 EWS0070, EWS0072 ews069_06 EWS1070, EWS1072 ews069_08  EDKWS0070 DE/EN/FR/ES/IT 4.1...
  • Seite 12 © 07/2010 Lenze Automation GmbH Service Lenze Service GmbH Hans-Lenze-Str. 1 Breslauer Straße 3 D-31855 Aerzen D-32699 Extertal Germany Germany +49 (0)51 54 / 82-0 00 80 00 / 24 4 68 77 (24 h helpline) +49 (0)51 54 / 82 - 28 00 +49 (0)51 54 / 82-11 12 Lenze@Lenze.de...
