KIRR SET 15
KIRR SET 25
KIRR SET 40
= A
01
Ø148 X 225
HOLE PATTERN
BAD
GOOD
ACCESSORY SET
1x
3x
3x
1x
4x
05
19
6x
20
18
06
12
13
4x
09
11
10
02
08
07
04
03

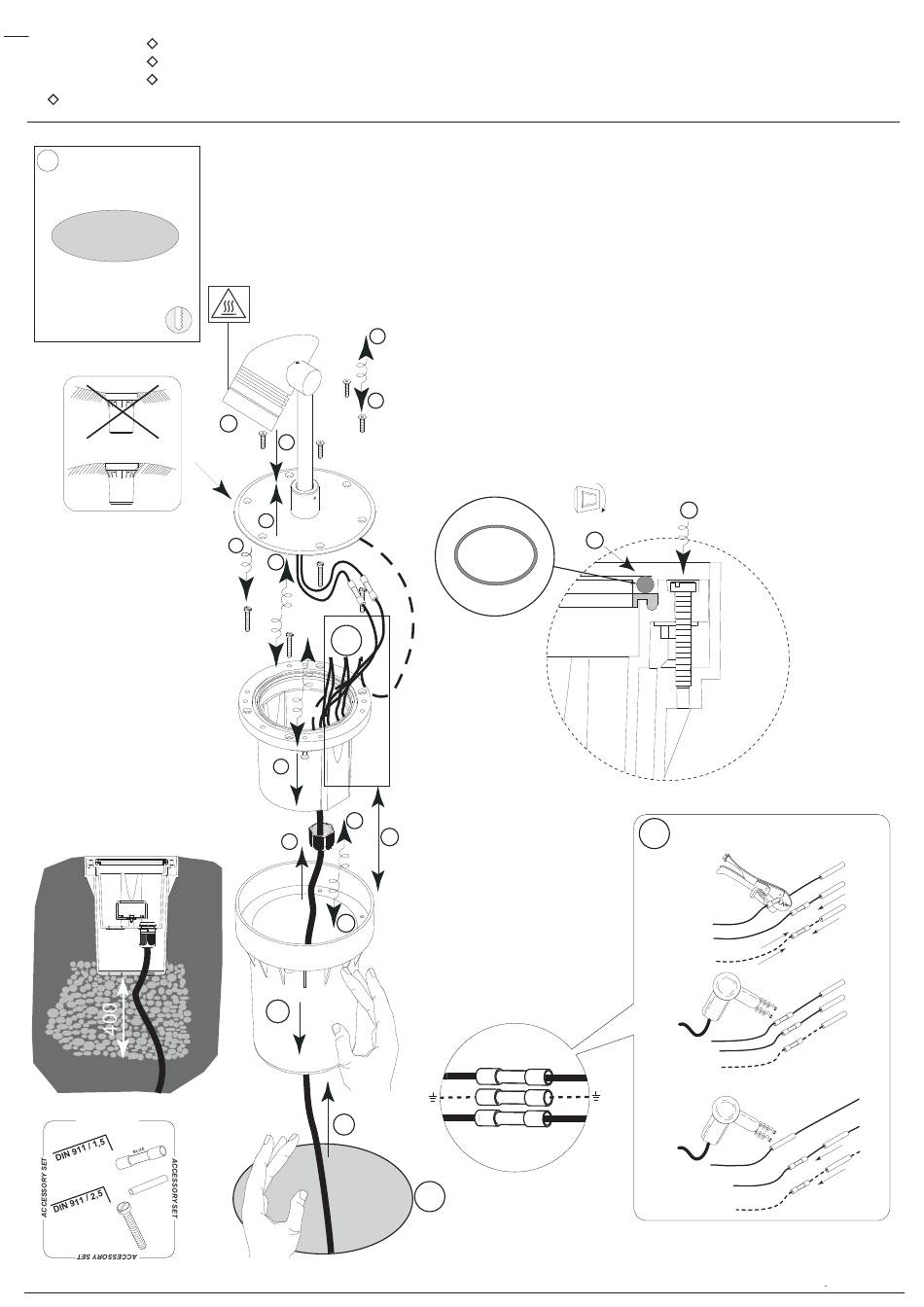

1. MAKE HOLE Ø148 x 225 mm
2. REMOVE THE BASIC SMALL BLACK ROUND GOBLET FROM
THE BASIC SMALL BLACK ROUND INNER CUP
3. PUSH THE CABLE IN THE GOBLET
4. PLACE THE GOBLET INTO THE GROUND
5. SCREW OPEN (6x)
6. REMOVE RECESSED ALU COVER
7. SCREW OPEN THE COUPLING SCREW
8. PUSH THE CABLE IN THE COUPLING SCREW AND THEN IN THE INNER CUP
9. MAKE ELECTRICAL CONNECTION
10. FASTEN THE COUPLING SCREW
11. PLACE THE BASIC SMALL BLACK ROUND INNER CUP INTO THE GOBLET
12. TAKE THE 4 SCREWS FROM THE ACCESSORY SET
AND FASTEN THE INNER CUP TO THE GOBLET
13. SCREW OPEN THE COUPLING SCREW
14. SCREW OPEN THE BASE OF THE COUPLING SCREW AND REMOVE IT
15. PLACE THE RUBBER WATERPROOF RING ON THE DEVICE
16. PLACE THE 2 RUBBER RINGS CORRECT
17. WATERPROOF CONNECTION BETWEEN THE DEVICE AND THE TRANSFO
18. PLACE THE RECESSED ALU COVER
19. FASTEN THE 6 SCREWS
20. PLACE THE LAMP OF THE DEVICE
21.SWITCH ON
OFF
ON
16
220-240V
N
N
L
L
01
INSTALLATION INSTRUCTIONS - PART A
12
4x
WATERPROOF CONNECT
09
A
TRANSFO
B
HEAT
TRANSFO
C
HEAT
TRANSFO
DELTA LIGHT nv Belgium
220-240V
220-240V
last update : 23/12/2009
