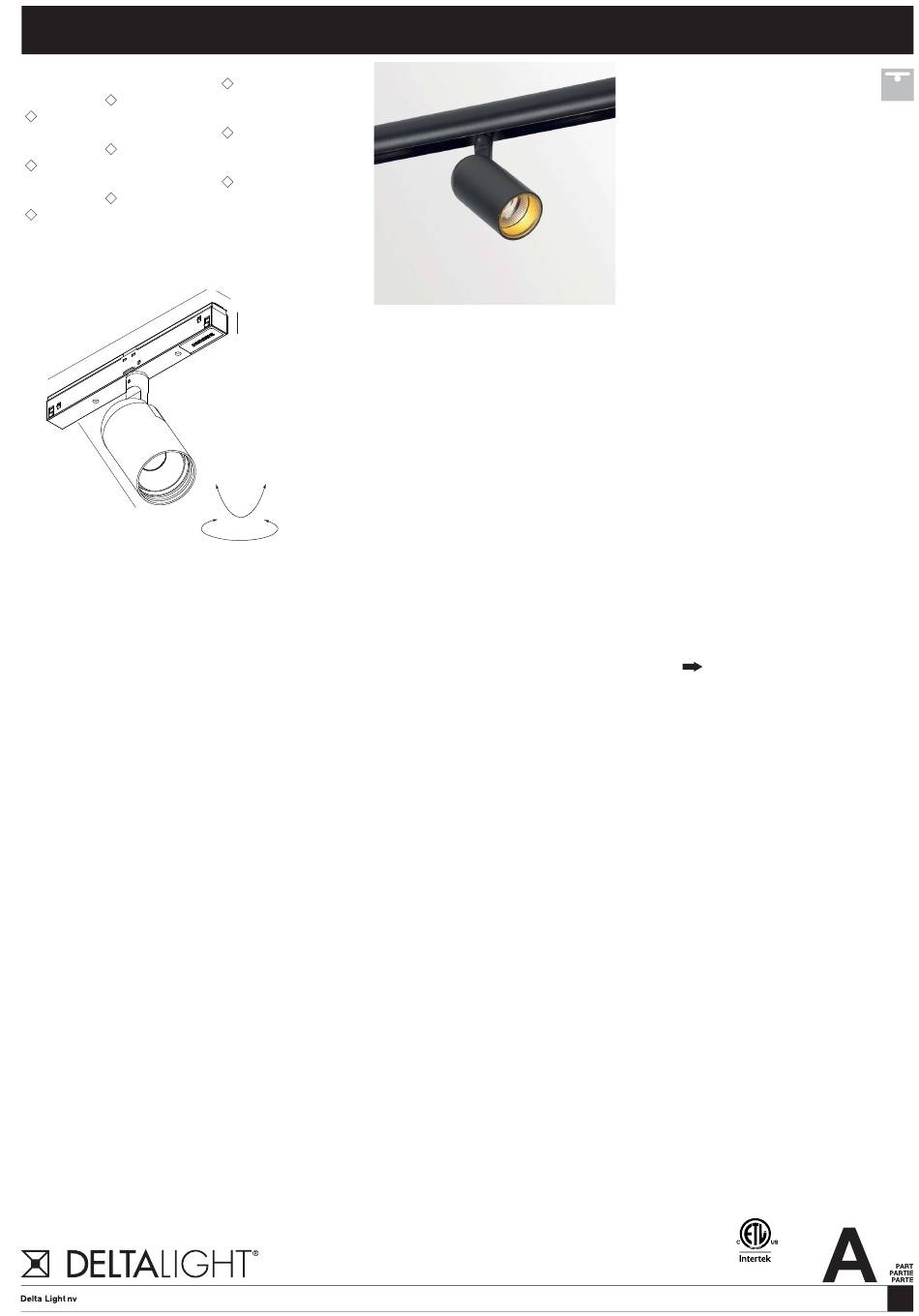

deltalight M26L/M35R - JAZZY 82720 MDL Installationsanleitung

Installation instruction
M26L/M35R - JAZZY 82720 MDL
6 23254 8220
= B / FBR / FG / W
M26L/M35R - JAZZY 83020 MDL
6 23254 8320
= B / FBR / FG / W
M26L/M35R - JAZZY 83520 MDL
6 23254 8520
= B / FBR / FG / W
170mm
6"-11/16
90mm
3"-9/16
Ø50
Ø2"
HEADQUARTERS - www.deltalight.com - USA - www.deltalight.us - CANADA - www.deltalight.ca
16mm
5/8"
22mm
Application
7/8"
Ceiling surface mounted, for SLM35R or SLM26L profiles only
For indoor use only
Color Finish
B - Black
W - White
FBR - Flemish Bronze
FG - Flemish Gold
Light source
0-90°
1x LED WHITE 6W

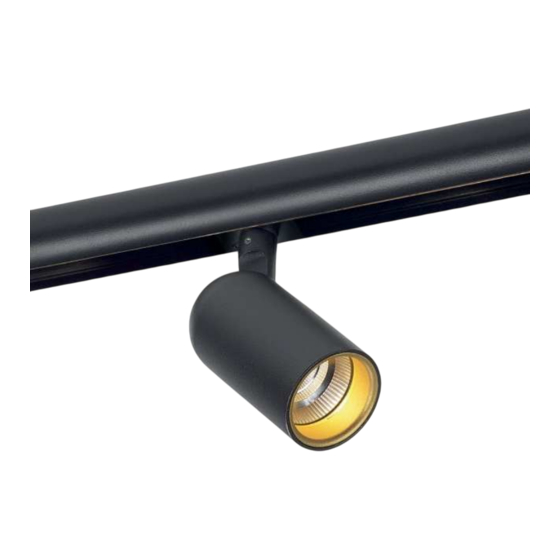

Product description
Surface treated aluminum construction
355°
Use only with SLM26L profile - 6 23358 0000
or
Use only with SLM35R profile - 6 23375 0000
Dimming by DALI / 1-10V control / PUSH button via 48V Modulator
Input voltage: 48V-DC
Suited for dry locations
Protected against solid objects greater than 12mm
Weight: 0,5lbs 0,25kg
Requirement
LED POWER SUPPLY 48V-DC / 90W
MIDISPY TUBE
Options
SMART 48 MODULATOR DIM9
NORTH AMERICAN EDITION
M26L/M35R - JAZZY MDL
IP20
6 300 89 48 96
414 03 00
6 300 90 011
LUMINARIES
Conforms to ANSI/UL Std. 1574
Cert. to CAN/CSA Std. 22.2 No. 9.0
Last Update ALLU 23/01/2020
1
