deltalight M26L/M35R - SPY FOCUS LP 927 DIM5 Installationsanleitung

Installation instruction

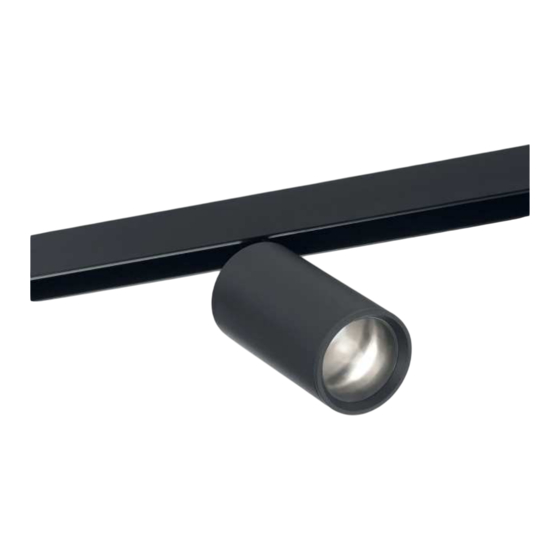

M26L/M35R - SPY FOCUS LP 927 DIM5
6 23231 9205
= B / W / FBR / FG
M26L/M35R - SPY FOCUS LP 930 DIM5
6 23231 9305
= B / W / FBR / FG
M26L/M35R - SPY FOCUS LP 935 DIM5
6 23231 9505
= B / W / FBR / FG
111mm
4"-3/8
Ø62mm
Ø2"-7/16
HEADQUARTERS - www.deltalight.com - USA - www.deltalight.us - CANADA - www.deltalight.ca
Application
Ceiling surface mounted, for SLM35R or SLM26L profiles only
For indoor use only
Color Finish
B - Black
W - White
FG - Flemish Gold
FBR - Flemish Bronze
Light source
1x LED WHITE 8,7W
INCL. Adjustable beam 8°- 43°
129mm
5"-1/16
Product description
Surface treated aluminum construction
Use only with SLM26L profile - 6 23358 0000
or
Use only with SLM35R profile - 6 23375 0000
0-90° Dimming by DALI / 1-10V control / PUSH button via 48V Modulator
Input voltage: 48V-DC
355°
Suited for dry locations
Protected against solid objects greater than 12mm
Weight: 1,1lbs 0,5kg
Required
LED power supply 48V-DC / 90W
NORTH AMERICAN EDITION
M26L/M35R - SPY FOCUS LP DIM5
IP20
6 300 89 48 96
LUMINARIES
Conforms to ANSI/UL Std. 1574
Cert. to CAN/CSA Std. 22.2 No. 9.0
Last Update ALLU 21/01/2020
