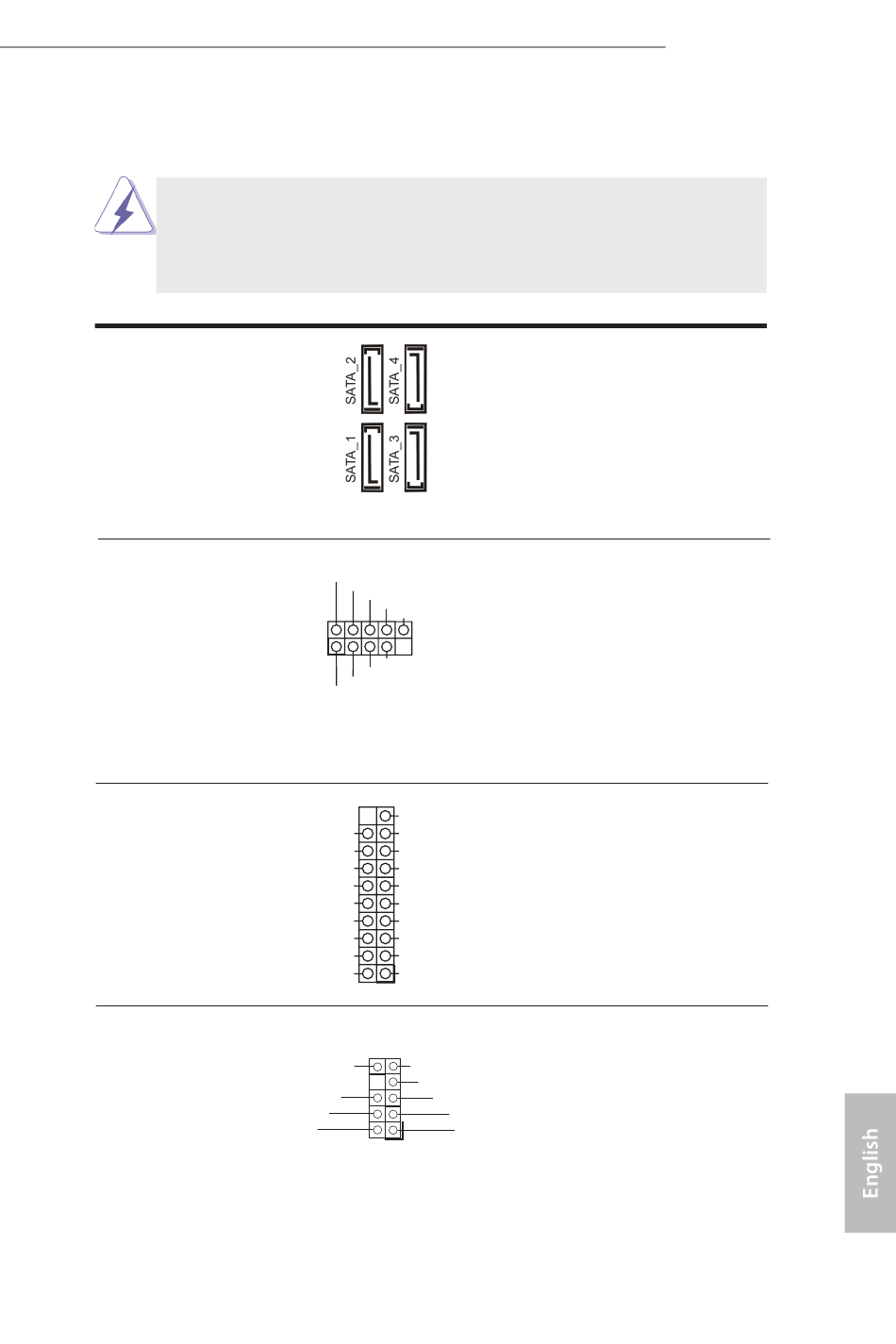

1.4 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA3 Connectors
(SATA_1: see p.1, No. 10)
(SATA_2: see p.1, No. 7)
(SATA_3: see p.1, No. 9)
(SATA_4: see p.1, No. 8)
USB 2.0 Headers
(9-pin USB_7_8)
(see p.1 No. 14)
(9-pin USB_9_10)
(see p.1 No. 13)
USB 3.0 Header
(19-pin USB_11_12)
(see p.1 No. 6)
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1 No. 20)
USB_PWR
P-
P+
GND
DUMMY
1
GND
P+
P-
USB_PWR
Vbus Vbus
Vbus IntA_PB_SSRX-
IntA_PA_SSRX- IntA_PB_SSRX+
IntA_PA_SSRX+ GND
GND IntA_PB_SSTX-
IntA_PA_SSTX-
IntA_PB_SSTX+
IntA_PA_SSTX+
GND
GND IntA_PB_D-
IntA_PA_D- IntA_PB_D+
IntA_PA_D+
Dummy
1
OUT_RET OUT2_L
J_SENSE
MIC_RED
OUT2_R
PRESENCE#
GND
1
These four Serial ATA3
(SATA3) connectors support
SATA data cables for internal
storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
Besides four default USB 2.0
ports on the I/O panel, there
are two USB 2.0 headers on
this motherboard. Each USB 2.0
header can support two USB
2.0 ports.
Besides two default USB 3.0
ports on the I/O panel, there is
one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB 3.0
ports.
This is an interface for the front
panel audio cable that allows
convenient connection and
MIC2_R
control of audio devices.
MIC2_L
FM2A78M-DG3+
11
