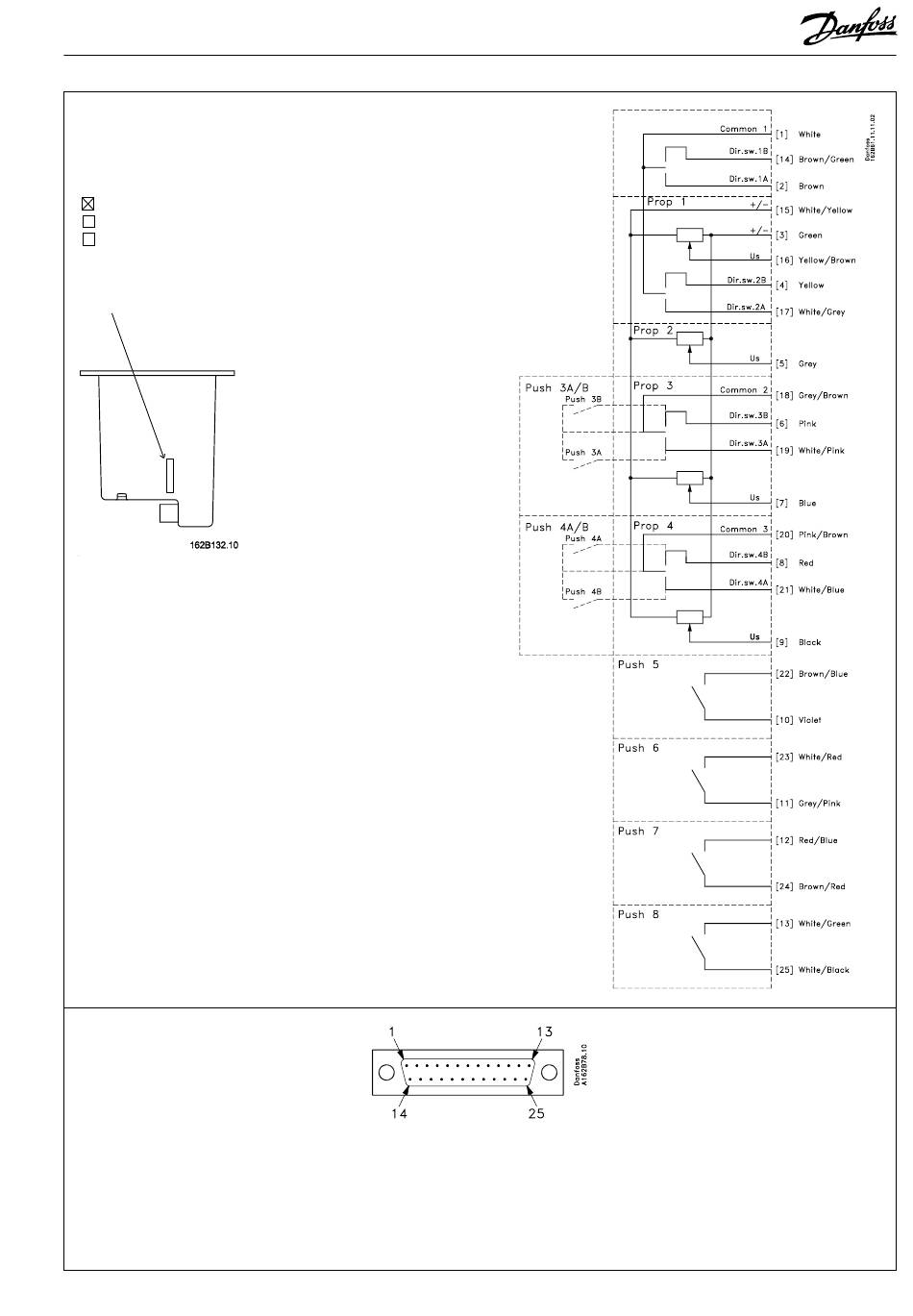

Ledningsfarver og elektrisk system
Lead colours and electrical system
Leiterfarben und elektrisches System
Couleur des fils et système électrique
Basic level
Standard level
Extended level
NO switch inside
Note
Push 8 er ikke tilgængelig
Push 8 is not accessible
Push 8 ist nicht zugängig
Push 8 n'est pas disponible
Note
Numre angivet i [ ] refererer til terminalnr. i joystick SUB-D stikket.
Farvemærkning refererer til ledningsfarver i Danfoss tilbehørskabel.
The numbers in [ ] refer to the terminal numbers in the SUB-D connector of
the joystick.
The indicated colours refer to the colours of the leads in Danfoss' accessory
cable.
Die Nummern in [ ] verweisen auf die Anschlußnummern im SUB-D Stecker
vom Joystick.
Die indizierten Farben verweisen auf die Farben der Leitungen im Danfoss
Zubehörkabel.
Les numéros indiqués entre [ ] renvoient aux numéros des bornes de jonction
du connecteur SUB-D du manipulateur.
Les couleurs indiquées renvoient aux couleurs des fils du câble accessoire
Danfoss.
25 pin SUB-D connector
with M3 screws
(MIL - DTL - 24308)
© Danfoss, 2014-03
520L0363 • Rev BB • Mar 2014
