Installation of chain mount kit for sensors with cleaning unit
Install the cleaning unit hose
Note: An air hose is required, to operate the sensor with the optional
cleaning unit. An oil-free compressed air (6 bar) and a solenoid valve or
the HOAB compressed air cleaning system is also required.
With the HOAB compressed air cleaning system, replace the end of the
hose connection that is connected to the compressed air on the
underside of the instrument with the straight 6 mm fitting (refer to
Figure 2 on page 7, item 5) supplied with the probe.

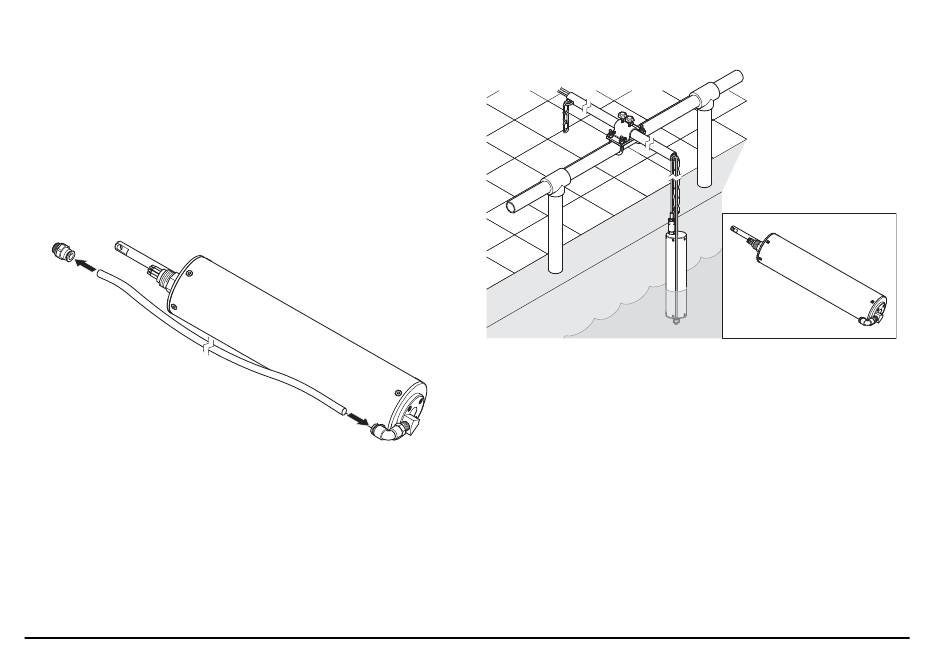

Figure 6 Install the cleaning unit hose
English 10
Figure 7 FP 360 sc measurement sensor with cleaning unit and
chain mount kit
