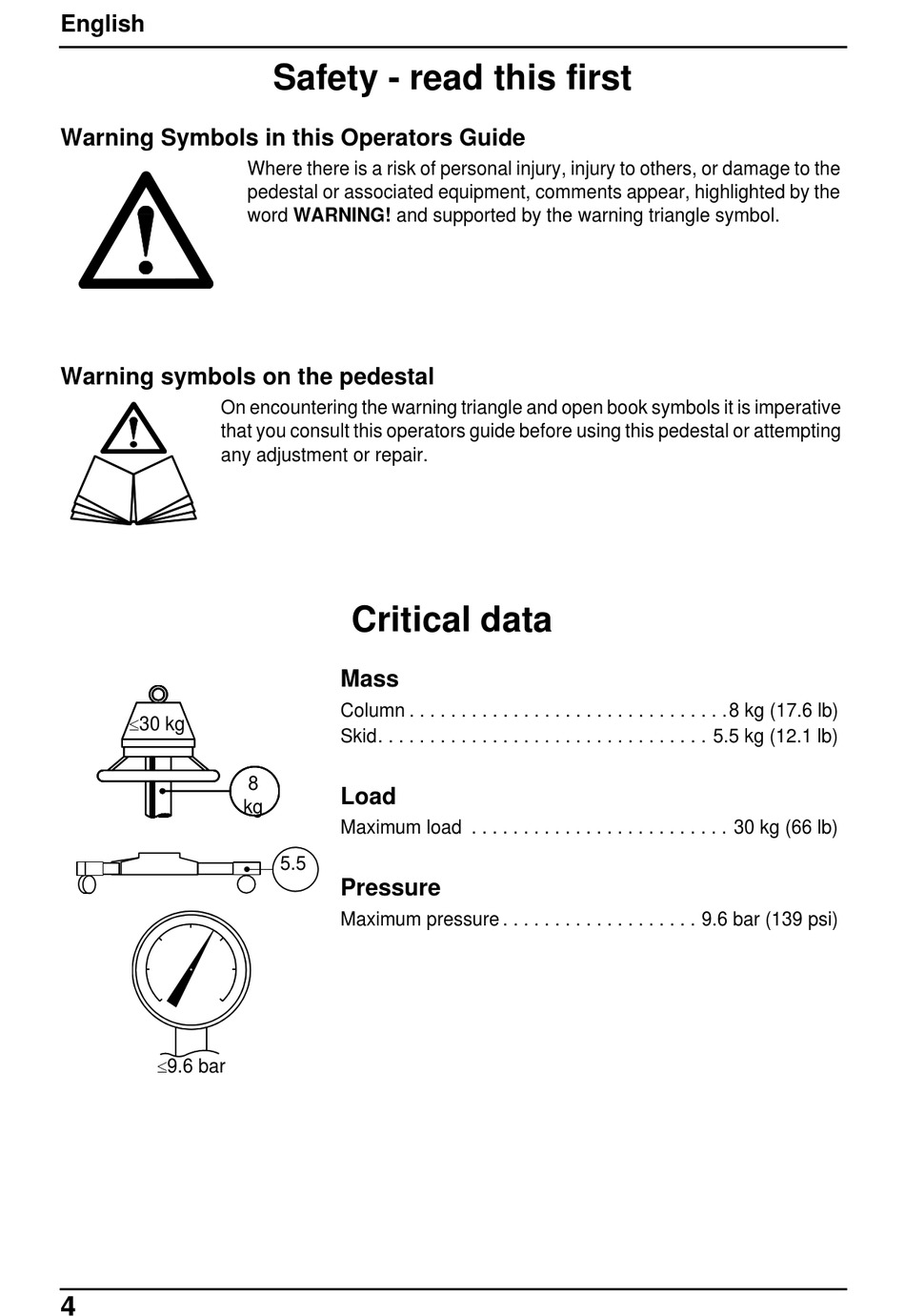

Safety - Read This First; Critical Data - Vinten Vision Ped Plus Bedienungsanleitung

English
Warning Symbols in this Operators Guide
Warning symbols on the pedestal
On encountering the warning triangle and open book symbols it is imperative
that you consult this operators guide before using this pedestal or attempting
any adjustment or repair.



30 kg
9.6 bar
4

Safety - read this first

Where there is a risk of personal injury, injury to others, or damage to the
pedestal or associated equipment, comments appear, highlighted by the
word WARNING! and supported by the warning triangle symbol.


Critical data

Mass
Column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 kg (17.6 lb)
Skid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 kg (12.1 lb)
8
Load
kg
Maximum load . . . . . . . . . . . . . . . . . . . . . . . . . 30 kg (66 lb)
5.5
Pressure
Maximum pressure . . . . . . . . . . . . . . . . . . . 9.6 bar (139 psi)
