MAC Audio MAC 310 Installationsanleitung Seite 7

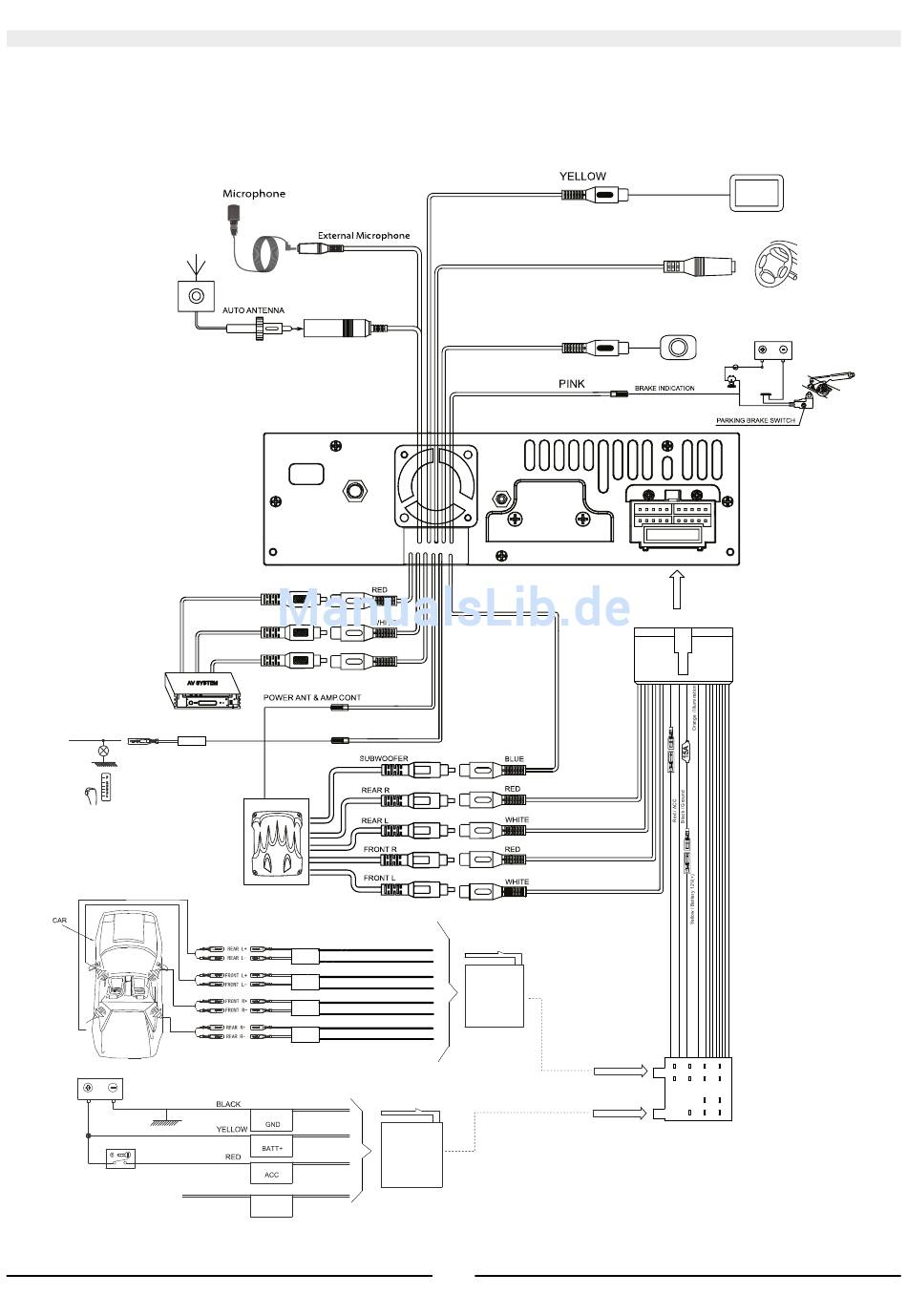

ANSCHLUSSDIAGRAMM / WIRING DIAGRAM
IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully, or have the installation
handled by an experienced technician.
Reversing
Fuse 100 mA
light
POWER AMPLIFIER
BLACK
AUX2 R
AUX2 L
AUX2 VIDEO IN
YELLOW
BLUE
REVERSE GREEN/WHITE
Green / Rear L (+)
Rear Left Green with black stripe / Rear L (-)
White / Front L (+)
Front Left White with black stripe / Front L (-)
Grey / Front R (+)
Front Right Grey with black stripe / Front R (-)
Purple / Rear R (+)
Purple with black stripe / Rear R (-)
Rear Right
ORANGE
Illumination
VIDEO OUT
Steering Wheel Control (SWC) requires
Dietz Interface Adapter (sold separately)
ANT
CAMERA
BRAKE
7
MONITOR
YELLOW CAMERA
BATTERY
GND
