Runpotec RT2008 Gebrauchsanleitung Seite 24

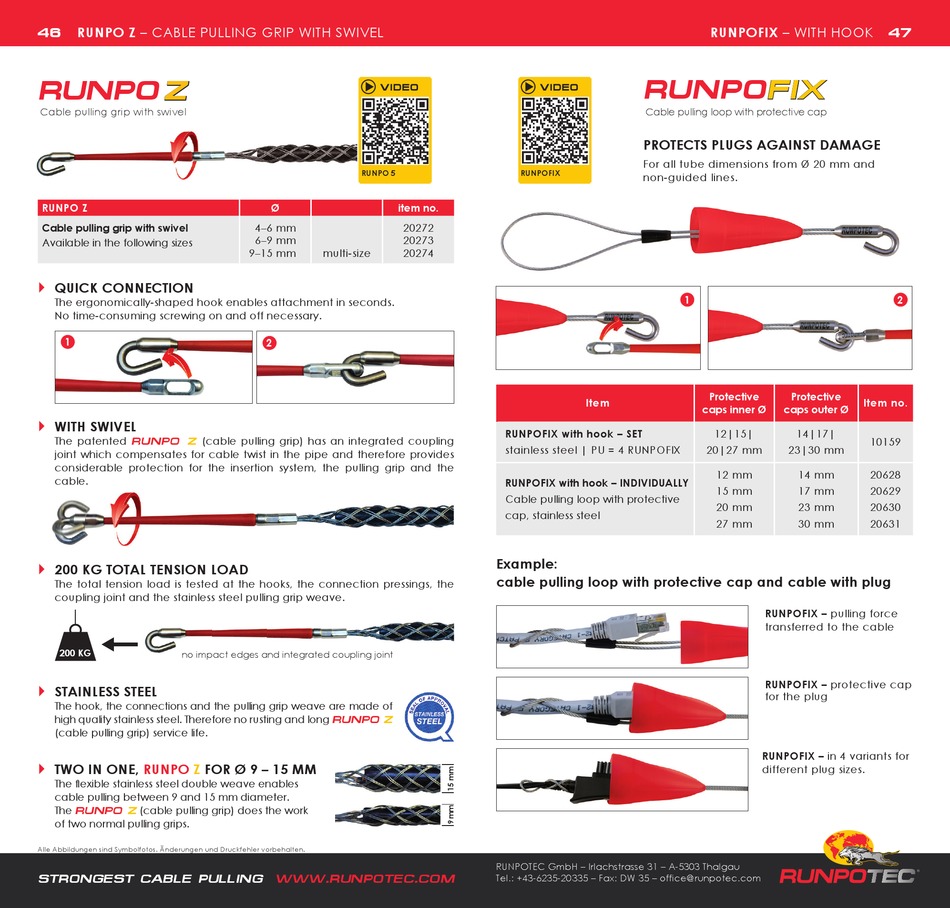

RUNPO Z – CABLE PULLING GRIP WITH SWIVEL
46
RUNPO Z
Cable pulling grip with swivel
RUNPO Z
Cable pulling grip with swivel
Available in the following sizes
QUICK CONNECTION

The ergonomically-shaped hook enables attachment in seconds.
No time-consuming screwing on and off necessary.
1
WITH SWIVEL

The patented (cable pulling grip) has an integrated coupling
RUNPO Z
joint which compensates for cable twist in the pipe and therefore provides
considerable protection for the insertion system, the pulling grip and the
cable.
200 KG TOTAL TENSION LOAD

The total tension load is tested at the hooks, the connection pressings, the
coupling joint and the stainless steel pulling grip weave.
200 KG
no impact edges and integrated coupling joint
STAINLESS STEEL

The hook, the connections and the pulling grip weave are made of
high quality stainless steel. Therefore no rusting and long
(cable pulling grip) service life.
TWO IN ONE, RUNPO Z FOR Ø 9 – 15 MM

The fl exible stainless steel double weave enables
cable pulling between 9 and 15 mm diameter.
The (cable pulling grip) does the work
RUNPO Z
of two normal pulling grips.
Alle Abbildungen sind Symbolfotos. Änderungen und Druckfehler vorbehalten.
STRONGEST CABLE PULLING
VIDEO
RUNPO 5
Ø item no.
4–6 mm 20272
6–9 mm 20273
9–15 mm multi-size 20274
2
RUNPO Z
www.RUNPOTEC.COm
RUNPOFIX
VIDEO
Cable pulling loop with protective cap
PROTECTS PLUGS AGAINST DAMAGE
For all tube dimensions from Ø 20 mm and
RUNPOFIX
non-guided lines.
Item
RUNPOFIX with hook – SET
stainless steel | PU = 4 RUNPOFIX
RUNPOFIX with hook – INDIVIDUALLY
Cable pulling loop with protective
cap, stainless steel
Example:
cable pulling loop with protective cap and cable with plug
RUNPOTEC GmbH – Irlachstrasse 31 – A-5303 Thalgau
Tel.: +43-6235-20 335 – Fax: DW 35 – office@runpotec.com
RUNPOFIX – WITH HOOK
1
Protective Protective
Item no.
caps inner Ø caps outer Ø
12|15| 14|17|
20|27 mm 23|30 mm
12 mm 14 mm
15 mm 17 mm
20 mm 23 mm
27 mm 30 mm
RUNPOFIX – pulling force
transferred to the cable
RUNPOFIX – protective cap
for the plug
RUNPOFIX – in 4 variants for
different plug sizes.
47
2
10159
20628
20629
20630
20631
