14. Input modes: Frequency meter

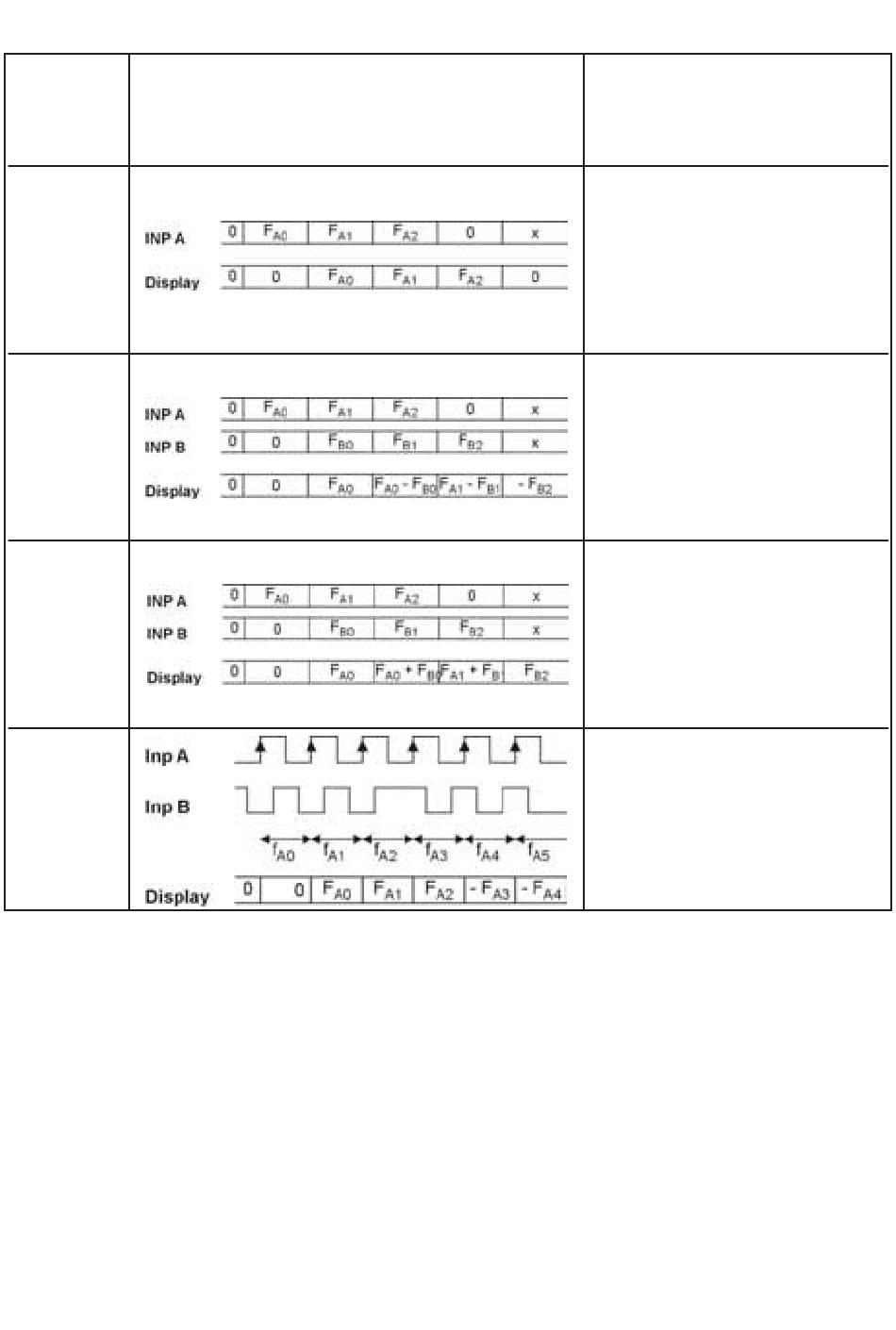

Function Diagram
Start
tA.A
Start
tA.AS
Start
tA.AA
Start
tA.PP
PnP: Count on rising edge
nPn: Count on falling edge
Inp A: Frequency input
Inp B: no function
Inp A: Frequency input 1
Inp B: Frequency input 2
Formula:
A - B
Inp A: Frequency input 1
Inp B: Frequency input 2
Formula:
A + B
A 90° B
Inp A: Frequency input 1
Inp B: Reverse direction
