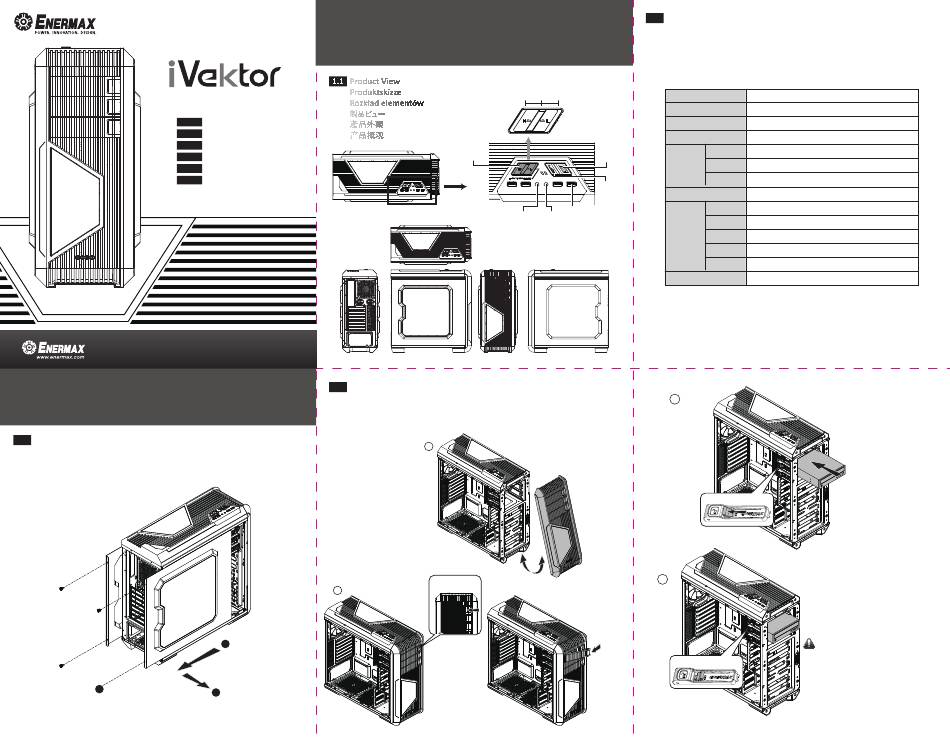

ENERMAX iVeltor ECA3310 serie Handbuch

ECA3310 series
English
Deutsch
Polski
日本語
繁中
简中
©2013 ENERMAX Technology Corporation. All rights reserved. Specifications are subject to
change without prior notice. Actual product and accessories may differ from illustrations.
Omissions and printing errors excepted. Content of delivery might differ in different countries or
areas. Some trademarks may be claimed as the property of others.
Chapter 2 :
•Installation Guide •Montageanleitung •Instrukcja montażu
• • 組裝說明
取り付けの説明
2.1 How to Remove Both Side Panels
Entfernen der Seitenwände
Demontaż panelów bocznych
両サイ ドパネルの取り外し
兩側側板拆卸
两侧侧板拆卸
1
Chapter 1 :
•Product Overview •Produkteinführung •Opis produktu
• •
製品の説明
1.1 Product View
Produktskizze
Rozkład elementów
製品ビュー
User's Manual
產品外觀
Handbuch 产品概观
Instrukcja obsługi
ユーザ マニュアル
使用手冊
使用手册
Top
Rear
2.2 How to Install Optical Drive
Installation von optischen Laufwerken
Instalacja napędów optycznych
光学ドライブの取り付け
光碟機安裝
光盘安装
B
2
3
產品槪觀
•产品概观
High
Stop Low
Fan speed
control
Power
Reset
USB
Mic
Headset
Left
Front Right
A
Unlock
ODD cover
Take out
ODD cover
1.2 Specs
Technische Daten
Dane techniczne
スペック
產品規格
产品规格
Model Name ECA3310 Series
Dimensions (mm)
D495 x W234 x H508
2 x USB 3.0 + 2 x USB 2.0, HD Audio, Fan Speed Control
I/O
Micro ATX / ATX
M/B
5.25"
3 x Exposed
Drive Bays
3.5" 7 x Hidden
2.5" 4 x Hidden
Expansion Slots
2 x 12cm fan slots
Front
1 x 12cm fan slot
Rear
Cooling
Top 2 x 12cm fan slots or 240mm radiator slot
Left
Acrylic window panel (Optional)
Bottom
1 x 12cm fan slot
240mm radiator installation
Water cooler support
*Product specifiations are subject to change without notice.
*Options vary by countries or regions. For detailed information please visit our website at www.enermax.com
C
UNLOCKED
D
Notice
To lock ODD, slide it until
LOCKED !
hearing click sound.
7
