Electrical Connection - Inventum IKI6010 Gebrauchsanweisung

ELECTRICAL CONNECTION

Attention: this hob includes a power cord with a plug. The connection is a 1 fase-connection.
• Check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
• The earthing of the appliance is compulsory by law.
• Attention: the connection point must always be accessible.
THE FITTING OF THE APPLIANCE

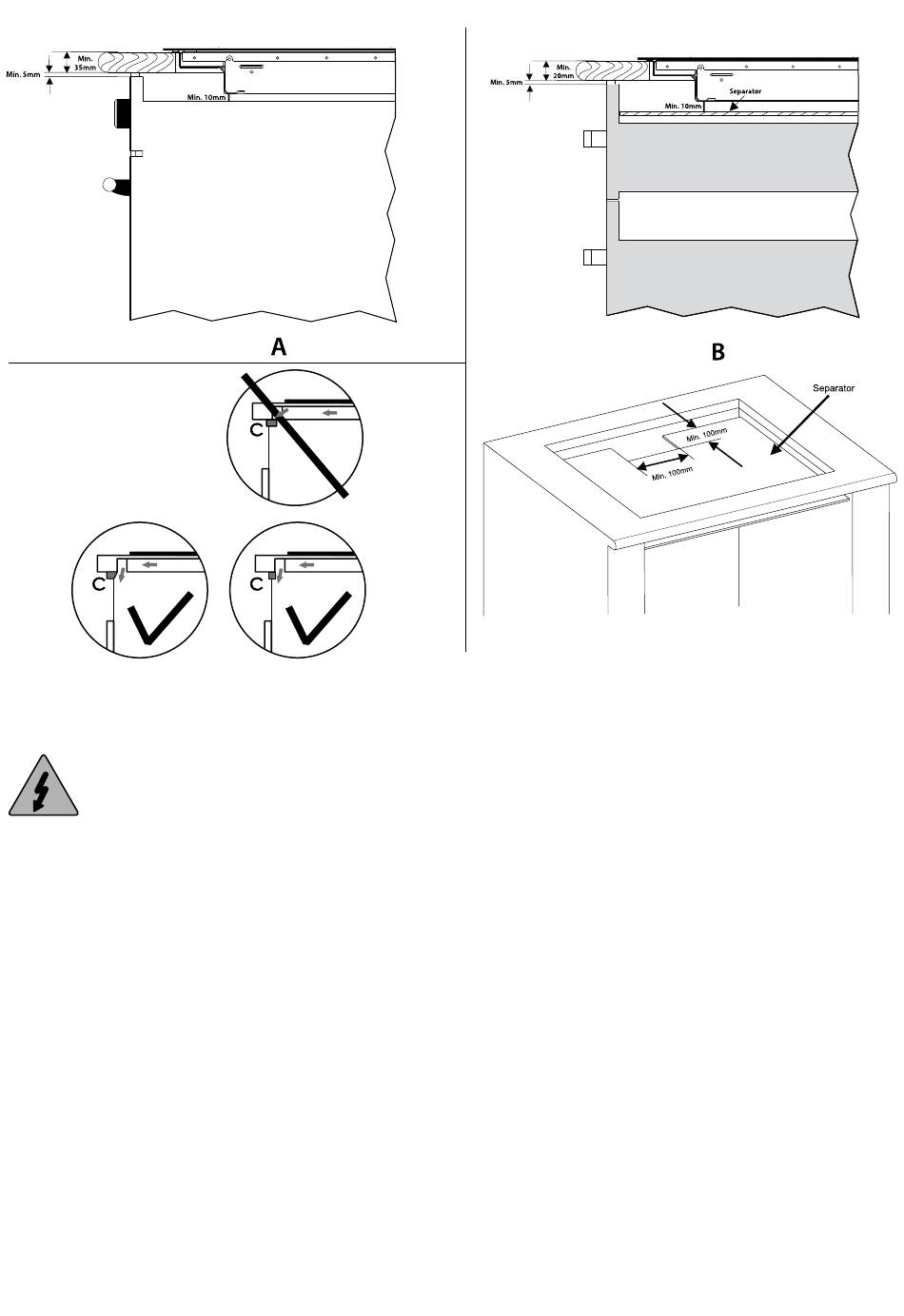

• Check that the cabinet and the cut-out meet the dimension and ventilation requirements.
• Remove the chips from the cutting job in the opening of the worktop and treat the saw ends of wooden or synthetic worktops
with sealing varnish if necessary, to prevent moisture causing the worktop to swell.
• Lay the hob upside down on the worktop.
• Fit the supllied mounting brackets on the appliance.
• Turn the hob over and lay it in the recess.
• Connect the appliance to the mains. The appliance is ready for use.
• Check that it works properly. If the appliance has been wrongly connected either a bleep will sound or an error code will appear
on the displays.
REMOVING THE HOB
Disconnect the hob from the mains. Remove the hob by pushing it upwards from the bottom. Attention! Beware of damage to
the appliance! Do not try to remove it from the top.
25
English •
