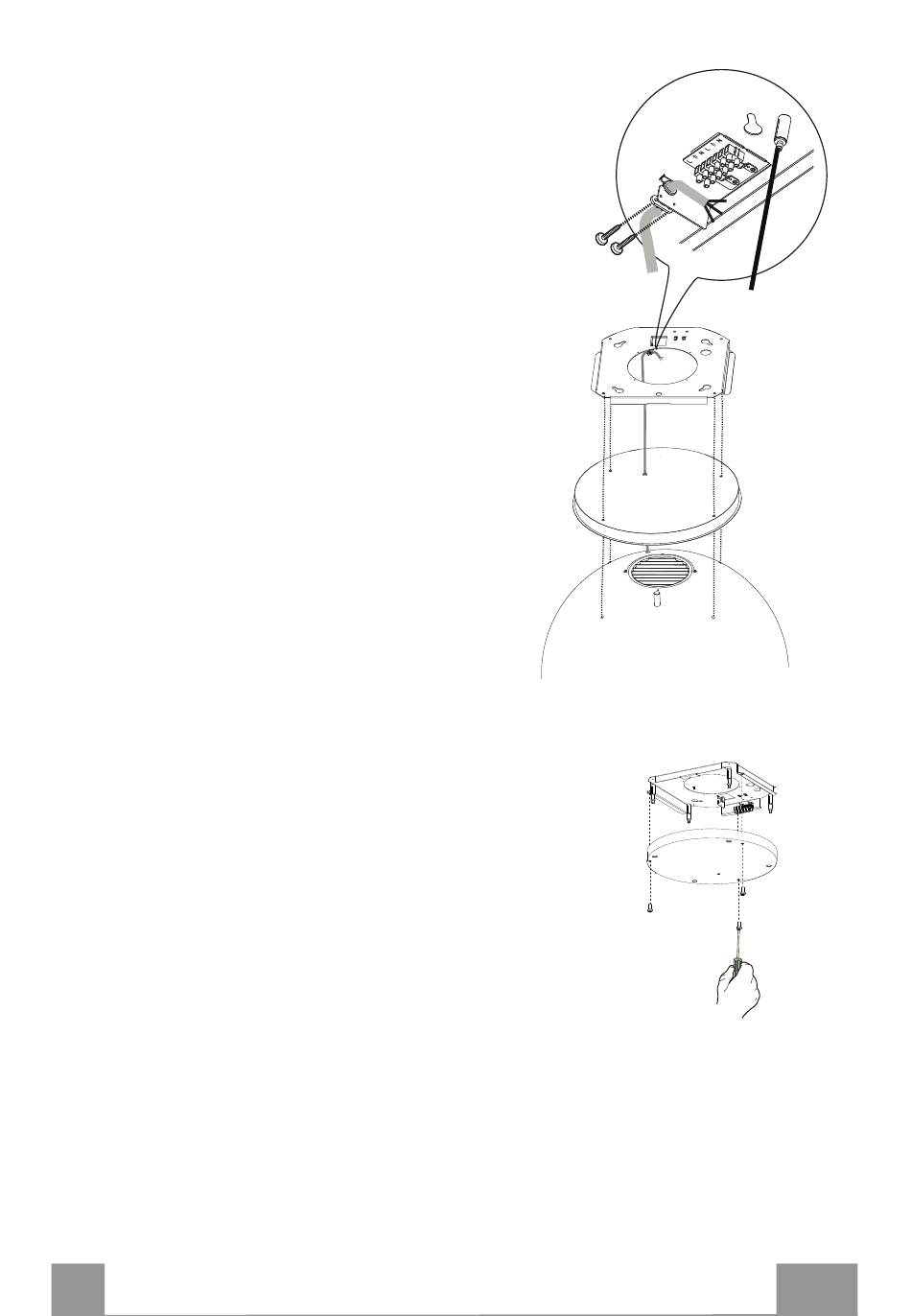

• Tighten the power supply cable and
fix it to the bracket on the ceiling-
mounted plate, using the tongue
already mounted and 2 screws.
• Slot the rubber cable raceway already
threaded onto the power cable into the
slot to prevent future damage.
• Connect the Hood to the Mains Power
Supply, inserting a bipolar switch
with a contact aperture of at least 3
mm.
• Remove the Grease filters (see
paragraph "Maintenance") and make
sure that the Power cable connector
has been properly inserted into the
Suction fan socket.
• At this point it is possible to remove
the tie fixing the power supply cable
to the hood canopy.
• Screw the cover back onto the plate
using the screws removed as
described above.
• Open the lighting unit by pulling on the notch provided.
• Remove the grease filter.
• Make sure that the Activated charcoal odour filter has been fitted.
EN
FIXING THE POWER SUPPLY CABLE
FITTING THE PLATE COVER
AIR OUTLET – RECIRCULATION VERSION
1
14
4
