INTRODUCTION
Thank you for purchasing the Projection Clock . Please read carefully through the following
information and keep these instructions, in case you need to refer to them in the future. If you
pass the product on to someone else, please also include these instructions.
The Radio-Controlled Projection Clock (Projection Clock) displays:
- indoor temperature
- date / time / weekday
- alarm
The Projection Clock is unsuitable for commercial use in weather forecasting or in temperature data
measurement.

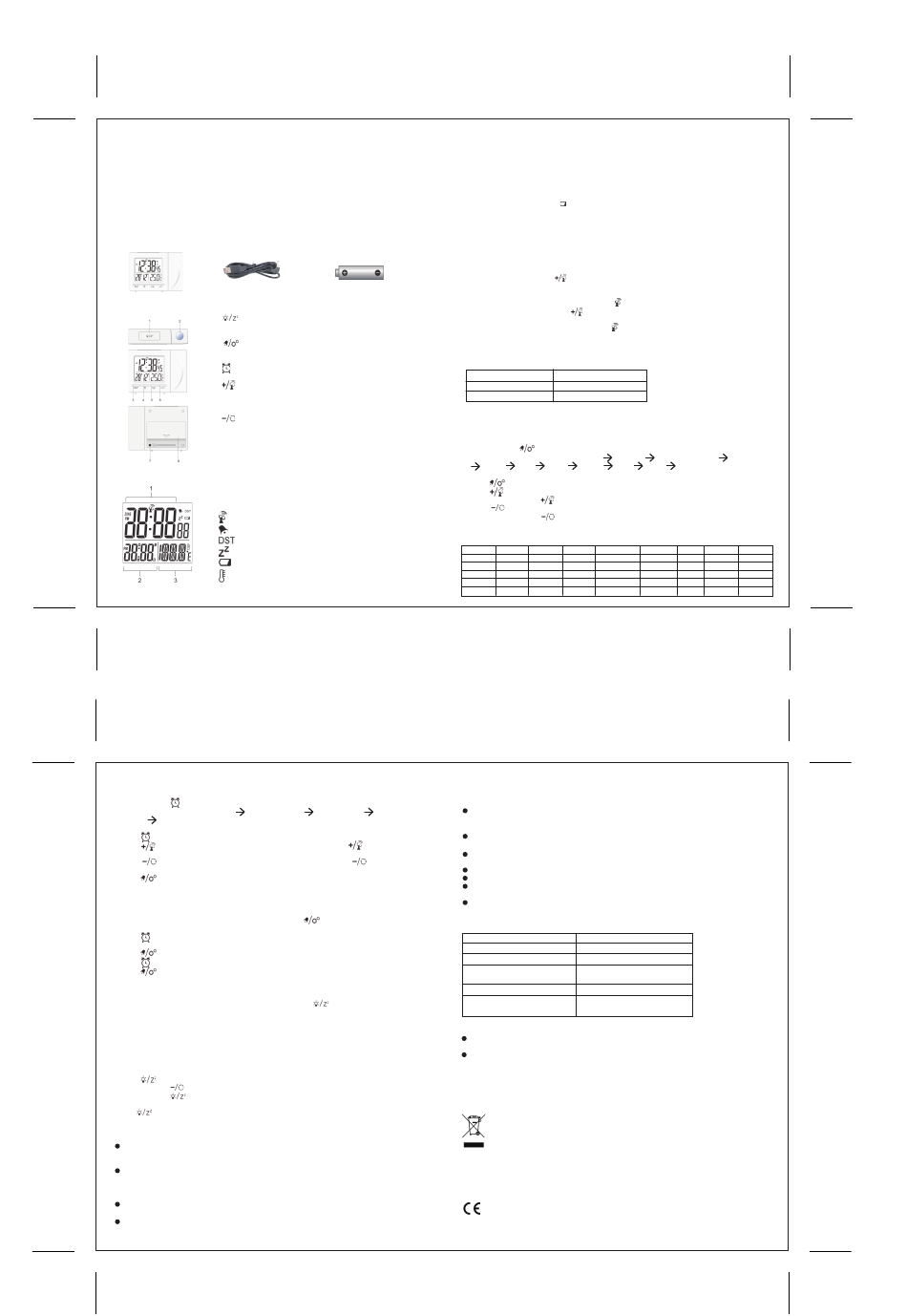

PACKAGE CONTENTS
Main unit Power cable
OVERVIEW
1： Press to activate the snooze functon,backlight and projection,
Press and hold to toggle projection on/off.
2：Projection lens
3： In Date mode, press to turn on/off zone. In Alarm time
mode, press to turn on/off alarm. Press and hold to enter time
and date setting.
4： Press to show alarm time of Alarm 1-5 and Alarm 6-7.
Press and hold to enter alarm setting.
5： Press to switch between Temperature and Week Day
display. Press and hold to start RCC signal receiving. In
setting mode, press to increase one unit, press and hold
to increase rapidly.
6: Press to switch between Date and the nearest coming
Alarm time. In projection, press and hold to flip the projection
display in 180 . In setting mode, press to decrease one unit, o
press and hold to decrease rapidly.
7：Power jack.
8：Battery compartment. Slide down to open.
LCD DISPLAY
1: Time Display
2: Date display or Alarm time display
3: Temperature display or Week Day display
RCC signal received
Alarm ON
DST ON
Snooze Activated
Low battery indicator
Temperature mode
back
ALARM
SETTING/ADJUSTING ALARM TIME
1. Press and hold button, enter alarm setting
2. Sequence of setting: weekday hour weekday minute
minute exit
3. During setting, the setting parameter will flash.
4. Press button to confirm setting and enter to next parameter
5. Press button once, the figure will increase 1 unit. Press and hold the
will increase rapidly.
6. Press button once, the figure will decrease 1 unit. Press and hold the
figures will decrease rapidly.
7. Press button to turn on/off alarm
8. Alarm will automatic turn on when alarm setting finish.
9. If there is no action in 20 seconds, the setting will be saved and will exit the setting mode.
TURN ON/OFF ALARM
1. When it is displaying the nearest coming Alarm time, press
alarm. (1-5) or (6-7) will flash to indicate which alarm displaying.
2. Press button once to switch to alarm mode. Monday to Friday alarm time will be shown and
(1-5) will flash.
3. Press button once to turn on/off Monday to Friday alarm
4. Press button again to show Saturday to Sunday alarm time. (6-7) will flash.
5. Press button once to turn on/off Saturday to Sunday alarm.
OPERATION
1. At the set time, alarm signal rings.
2. During alarm rings, press any keys to end the alarm. Or press
8 minutes.
3. If do not press any button to end the alarm, it will turn off automatically after 5 minutes.
4. Alarm will be start again at next alarm time, unless switch off the alarm function in alarm mode.
PROJECTION
The projector displays the time on your ceiling or wall and it can rotate 180 . It is easier to view in a
darkened room. For the optimal projection results, place the unit within 5-6.5 ft (1.5 - 2 m) from the
ceiling or wall.
1. Press button to activate the backlight and projection for 5 seconds.
2. Press and hold button, flip the projection display 180 .
3. Press and hold button, toggle continues projection on in case of using adapter power
source and toggle projection on for 5 minutes in case of using batteries power only. Press and
hold button again, turn off projection and toggle continues projection off
PRECAUTIONS
Hazards for children
Batteries can be life-endangering if swallowed. Please keep the Projection Clock and batteries
out of reach of children. If a battery has been swallowed, please seek medical assistance
immediately.
Keep children away from packaging material and the small parts in the scope of delivery.
Suffocation hazard if swallowed.
Injury hazard
Caution: Explosion hazard with improper handling of batteries. Batteries must not be charged,
reactivated with other means, dismantled, thrown into fire or short-circuited.
Avoid contact with skin, eyes and mucous membranes. When coming into contact with battery
acid, immediately rinse the affected areas with plenty of clear water and immediately contact a
GETTING STARTED
INSERT BATTERIES
1: Remove the battery door from the back
2: Insert 2 R03 (AAA)/ 1.5V batteries. Please ensure the polarities (+/-) of the
batteries match upon installation.
3: Reattach the battery door.
NOTE: Replace batteries when
DC POWER
Plug the power cable to the power jack and plug the USB plug to a
5V USB power adapter (Not included).
NOTE: It is suggested to insert batteries as backup power source.
CLOCK
CLOCK RECEPTION
1: Replace batteries or press
2: RCC receiving can be worked in both Date Mode and Alarm Mode.
AAA batteries
3: The receiving process duration is 7 minutes.
for main unit x 2
4: During receiving process, the RCC signal logo
5: During receiving process, press
can work normally.
6: If process is successful, completed RCC logo
7 minutes, RCC setting will be quit automatically.
7: RCC receiving will automatically start at 2:03, 3:03, 4:03, 5:03 every night. Auto
receiving function will cease if it is successful.
Different model receives different RCC signal:
NOTE: Please increase the separation of the main unit and the power adapter to avoid interference
of RCC signal receiving.
SET THE CLOCK MANUALLY
1. Press and hold
2. Sequence of setting: Week Day Language
3. During setting, the setting parameter will flash.
4. Press
5. Press
0). Press and hold the
6. Press
0). Press and hold the
7.If there is no action in 20 seconds, the setting will be saved and will exit the setting mode.
Five languages Week Day display: GER, ENG, FRE, ITA, DUT.
German
English
France
Italian
Dutch
Caution – property damage
weekend hour weekend
button, the figures
button, the
button once to turn on/off that
SPECIFICATIONS
L x W x H
Weight (Main unit)
Temperature display range
Accuracy
Resolution
Power
button to delay the alarm for
NOTE:
temperature is higher than 50℃(122℉), the temperature displays HH.H.
o
NOTE: The technical specifications for this product and the contents of the user manual are subject
to change without notice.
o
EU-DECLARATION OF CONFORMITY
Disposal:
The crossed symbol on a rubbish container indicates that the machine or device is not allowed to be
disposed of but it must be handed over to a suitably equipped collection centre for proper recycling
or disposal.
Directives:
displays, or when the display is dim.
button will initiate RCC receiving.
flashes.
button to quit receiving, press other buttons
will be shown in display. If it fails within
Region Signal
EU DCF
UK MSF
button, enter time and date setting
12/24 Hr
Month Date Hour Minute Zone
button to confirm setting and enter to next parameter
button once, the figure will increase 1 unit (when setting minute, second will reset to
button, the figures will increase rapidly.
button once, the figure will decrease 1 unit (when setting minute, second will reset to
button, the figures will decrease rapidly.
Symbol Monday Tuesday Wednesday Thursday
GER MON DIE MIT
ENG MON TUE WED
FRE LUN MAR MER
ITA LUN MAR MER
DUT MAA DIN WOE
physician.
Protect the Projection Clock from dust, impact, extreme temperatures and direct sunshine. Also
protect the Projection Clock from moisture. Exclusively position Projection Clock in a dry,
enclosed space.
Remove the batteries from the Projection Clock, if they become depleted or if you are not using
the Projection Clock for a longer period of time.
Do not expose the batteries to any extreme conditions by e.g. placing them on a radiator or
under direct sunlight.
Clean the battery and appliance contacts prior to insertion, if required.
Using same type of batteries. Do not use different types or used and new batteries together.
Do not carry out any changes to the device. Only allow repairs to be carried out by a
professional workshop.
Never use hard, scratching or abrasive detergents or similar, for cleaning the Projection Clock.
This could scratch the surfaces.
100 x 25 x 75 mm
97g (Exclude batteries)
-10℃ to +50℃ (14℉ to 122℉)
0℃ to +40℃: +/- 1.5℃ (+/-3℉)
<0℃ and >+40℃: +/- 2℃ (+/-4℉)
0.1℃ (0.2℉)
2 x R03 (AAA) 1.5V batteries
5V USB adapter (Not included)
When the temperature is lower than -10℃(14℉), the temperature displays LL.L. When the
During alarm rings or RCC receiving process, temperature detection will be stopped.
Guideline 2012/19/EC concerning the handling, collection, recycling and disposal of
electrical and electronic equipment and their components ('waste electrical and electronic
equipment', known as WEEE).
We declare that this device has been manufactured in accordance with the applicable rules
and regulations.
Year (2000 – 2099) Date format
℃/℉ exit
Friday Saturday Sunday
DON FRE SAM SON
THU FRI SAT SUN
JEU VEN SAM DIM
GIO VEN SAB DOM
DON VRI ZAI ZON
