1
20010001820
A
20010004620
C
20010008680
G
20010006820
K
If you have any assembly issues or are
If you are experiencing problems with this
You can also email us: help@mookie.co.uk
20010002820
B
20010003820
D
20010004820
H
20010007820
L
missing a part, please call us for
assistance. Our smarTrike® assembly
experts will assist you.
DO NOT RETURN TO THE STORE
product, please call our HELP LINE.
UK: 0845 5046410
9:30am – 5:00pm Monday to Friday
Not Bank Holidays or weekends.
for assistance and advice.
USA: 1-855-SMTRKUS
(1-855-768-7587)
20010006680
E
20010005820
I
2
20010008820
M
20010007680
F
20010014680
J
20010016680
N
Werbung
Verwandte Anleitungen für SmarTrike 820
Inhaltszusammenfassung für SmarTrike 820

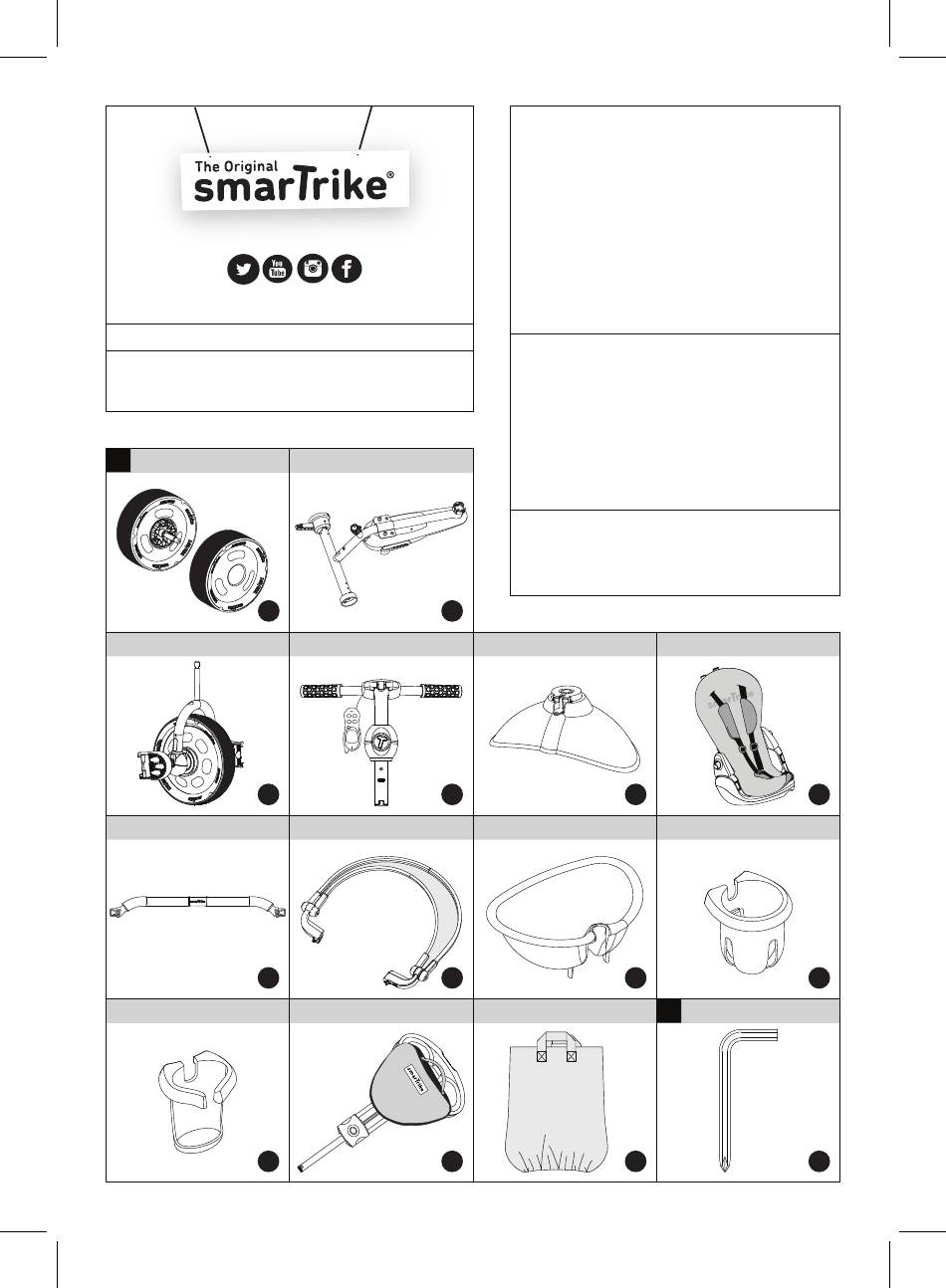

- Seite 1 If you have any assembly issues or are missing a part, please call us for assistance. Our smarTrike® assembly experts will assist you. DO NOT RETURN TO THE STORE If you are experiencing problems with this product, please call our HELP LINE.
