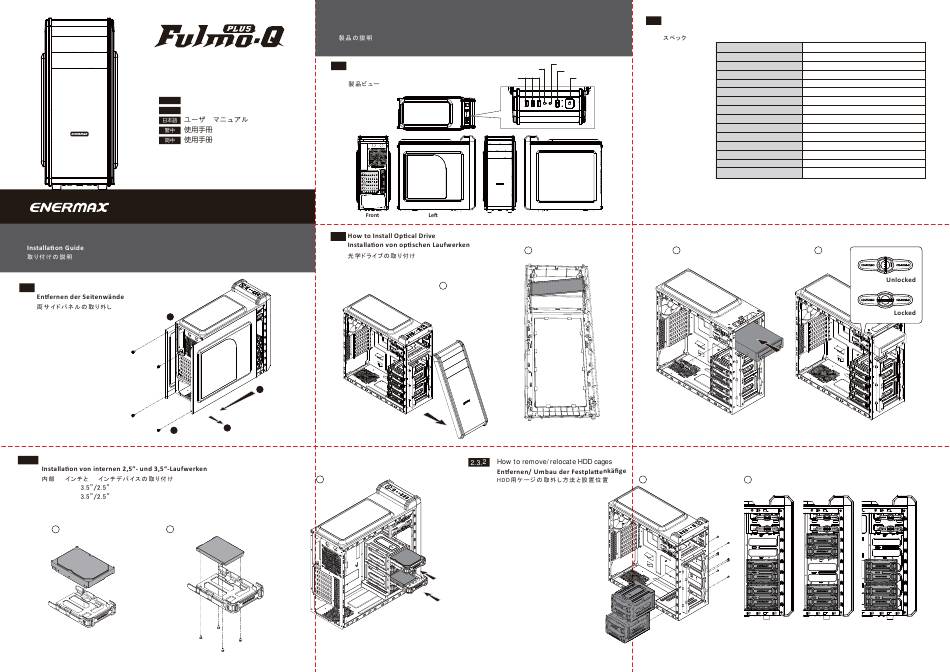

ENERMAX Fulmo.Q PLUS ECA3390 Handbuch

User's Manual
English
Handbuch
Deutsch
©2016 ENERMAX Technology Corporation. All rights reserved. Specifications are subject to
change without prior notice. Actual product and accessories may differ from illustrations.
Omissions and printing errors excepted. Content of delivery might differ in different countries or
areas. Some trademarks may be claimed as the property of others.
Chapter 2 :
• •Montageanleitung
•组装说明
• • 組裝說明
2.1 How to Remove Both Side Panels
1
兩側側板拆卸
两侧侧板拆卸
1
2.3.1 How to Install Internal 2.5" & 3.5" Device
2.5 3.5
安裝隱藏之 裝置
安装隐藏之 装置
3.5" 2.5"
A B
HDD HDD
Chapter 1 :
•Product Overview •Produkteinführung
• •產品槪觀
ECA3390
1.1 Product View
Produktskizze
產品外觀
产品概观
2.2
光碟機安裝
光盘安装
2
3
C
•产品概观
Headphone
MIC
Reset
USB Ports
Power
Top
Rear Right
B
A
1.2 Specs
Technische Daten
產品規格 Model Name
产品规格 Dimension DxWxH
1 x USB 3.0, 2 x USB 2.0, HD Audio
I/O
Motherboard
Expansion Slots
Material
5.25" Bays
3.5"/2.5" Trays
Front Fan Slot
Rear Fan Slot
Top Fan Slot
Power Supply
CPU cooler Height
Max VGA Length
Front Radiator Support
*Product specifiations are subject to change without notice.
*Options vary by countries or regions.
For detailed information please visit our website at www.enermax.com
C D
A B
Front Position Split Position
for fan installation for longer VGA
(42mm clearance) card installation
ECA3390
466*205*461mm
ATX / MicroATX
7
SPCC 0.5mm
2
4
2 x 120mm
1 x 120mm
2 x 120mm
ATX 12V
167 mm
399mm (HDD cage removed)
240mm
Rear Position
for liquid cooler installation
(60mm clearance)
