12.2- RS-485 CONNECTION

Connect the station to the RS485 bus using the 3-way connector in the top right of the electronic board
fixed inside the station.

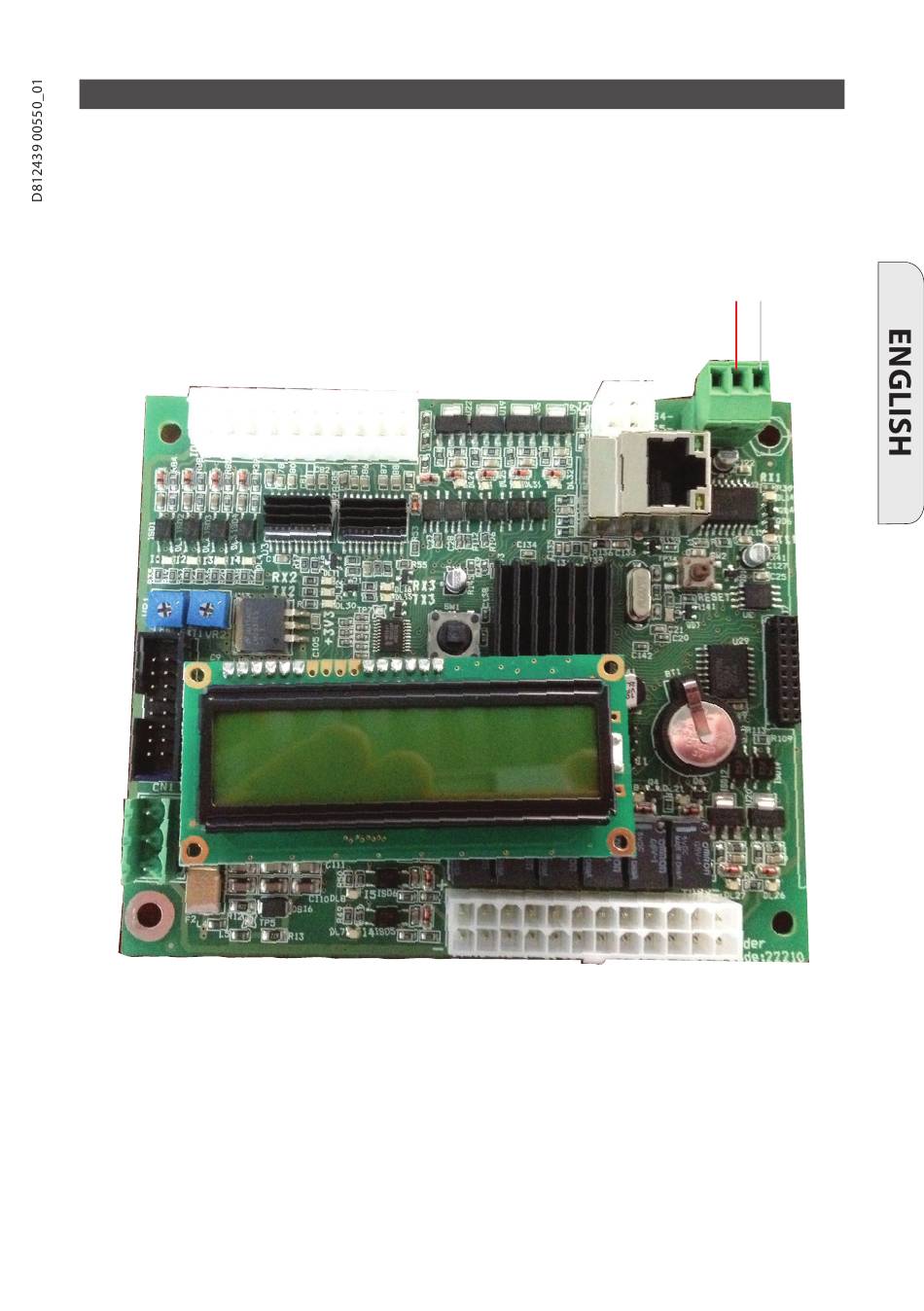

For the connection refer to the figure below.
HI LO
Espas30 I - 33
