Limited One Year Warranty
T&S warrants to the original purchaser (other than
for purposes of resale) that such product is free from
defects in material and workmanship for a period of
one (1) year from the date of purchase. During this
one-year warranty period, if the product is found to
be defective, T&S shall, at its options, repair and/
or replace it. To obtain warranty service, products
must be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other transpor-
tation charges of the product to T&S and the return
of repaired or replaced product to the purchaser are
the responsibility of the purchaser. Repair and/or
replacement shall be made within a reasonable time
after receipt by T&S of the returned product. This
warranty does not cover Items which have received
secondary finishing or have been altered or modi-
fied after purchase, or for defects caused by physi-
cal abuse to or misuse of the product, or shipment
of the products.
Any express warranty not provided herein, and
any remedy for Breach of Contract which might arise,
is hereby excluded and disclaimed. Any implied
warranties of merchantability or fitness for a particu-
lar purpose are limited to one year in duration. Under
no circumstances shall T&S be liable for loss of
use or any special consequential costs, expenses
or damages.
Some states do not allow limitations on how long
and implied warranty lasts or the exclusion or limi-
tation of incidental or consequential damages, so
the above limitations or exclusions may not apply
to you. Specific rights under this warranty and other
rights vary from state to state.
P/N: 098-009518-45 Rev.1
Date: 980716
Drawn: CW
Checked: MAB 9-8-98
Approved: MW 9-3-98
Installation and
Maintenance
Instructions

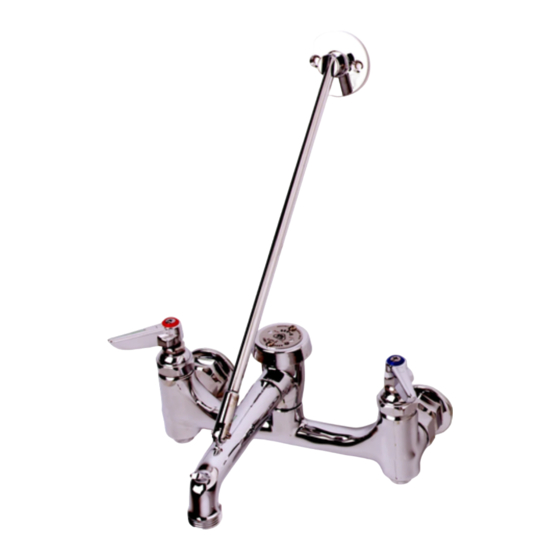

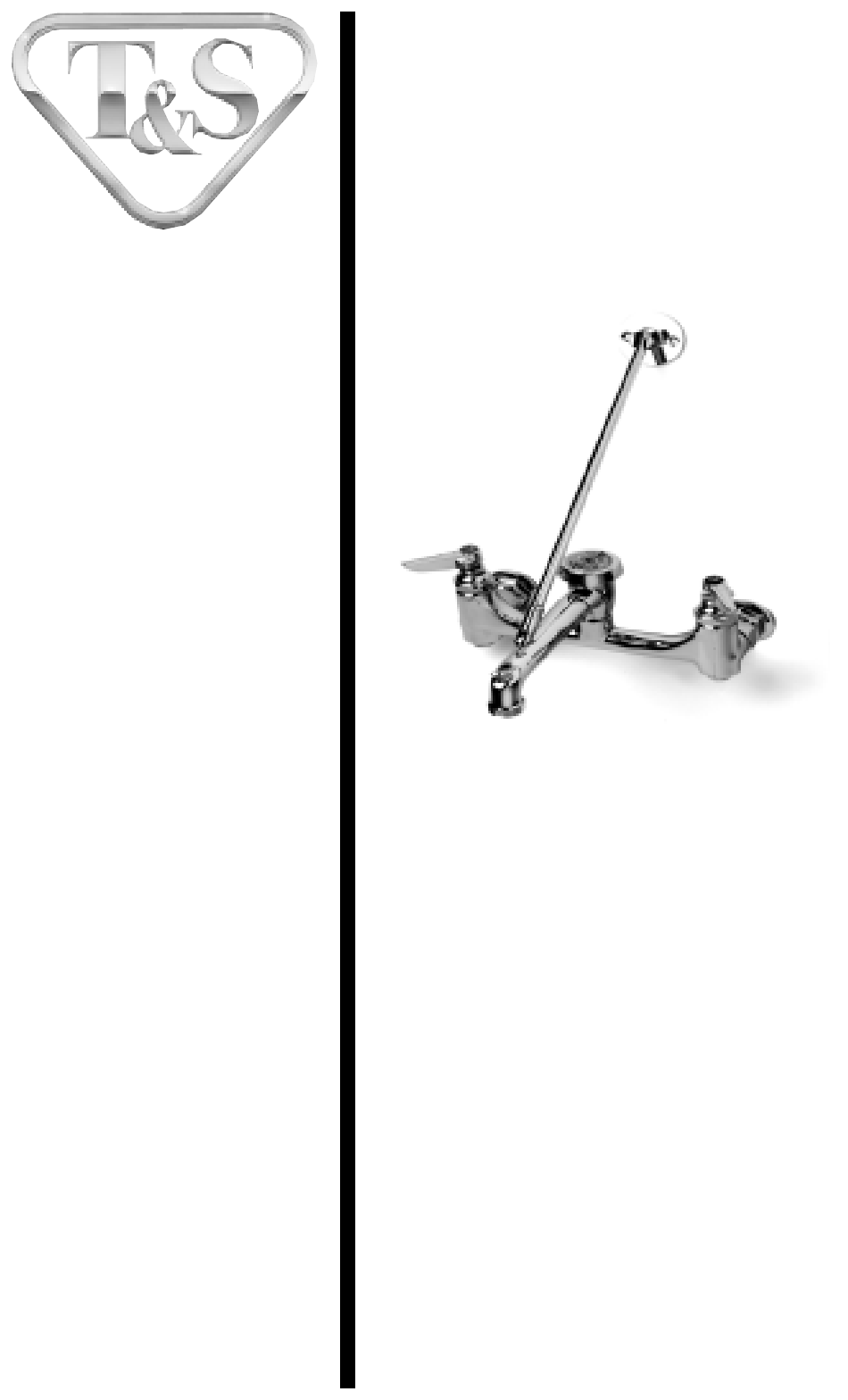

Surgical Sink and
Service Sink Faucets
with Built-In Stops
B-0665-BST Series
Deutsch:
Español:
Français:
Installations- und
Wartungsanleitungen
la Instalación y las
Instrucciones de
Mantenimiento
les Instructions
d'Installation et
d'Entretien

Werbung

loading

Inhaltszusammenfassung für T&S B-0665-BST Serie

  • Seite 1 Installation and Maintenance Instructions Limited One Year Warranty T&S warrants to the original purchaser (other than for purposes of resale) that such product is free from defects in material and workmanship for a period of one (1) year from the date of purchase. During this one-year warranty period, if the product is found to be defective, T&S shall, at its options, repair and/ or replace it.
  • Seite 2: Exploded View

    Exploded View apply loctite #680 * Some items are listed for instructional purposes and may not be sold as separate parts.
  • Seite 3 Part Number Guide Service Sink Faucet Assemblies Asm, Base Faucet B-0665-BSTP Body, Faucet Asm, Flange Coupling 002893-40 Washer, Coupling Flange 001019-45 Asm, Bst Spindle & Insert 002586-25 Nipple, Close 1/2 HWL 002534-25 Asm, Eterna LH Spindle 002713-40 Asm, Eterna RH Spindle 002714-40 Asm, Bonnet - Cold 005959-40...
  • Seite 4 Models with Built-in Stops (-BST) B-0230-BST Sink mixing faucet with 18” swing nozzle; lever handles B-0231-BST Sink mixing faucet with 12” swing nozzle; lever handles B-0232-BST Sink mixing faucet with 6” swing nozzle; lever handles B-0234-BST Sink mixing faucet with 6” cast nozzle; lever handles B-0265-BST Combo.
  • Seite 5 Note: This is a general instructional example of units using -BST. Nozzles should be installed on unit first. Nozzle Installation ex. model B-0665-BST 1. Remove no.6 from both sides of no.1. 2. Apply Loctite #680 to threads of no.5 and no.12. 3.
  • Seite 6 Nota: Esto es un ejemplo general instruccional de unidades que utilizan - BST. (Interceptor Incorporado.) Primero se debe de instalar las boquillas. Instalación De Boquilla: Ejem. Modelo B-0665-BST 1. Remuéva la parte No.6 de ambos lados de la parte No.1. 2.
  • Seite 7 Celui-ci être un exemple générale et instructif des élément s qui utiliser BST Les ajutages devoir être installer au début. L’Installation De L’Ajutage: ex. modèle B-0665 -BST 1. Enlever Nº.6 de chaque côté de Nº.1. 2. Appliquer “loctite #680” aux filets de Nº.5 et Nº.12. 3.
  • Seite 8 Anmerkung: Die ist ein allgemeines Installationsbeispiel für Armaturen, die BST verwenden. Düsen sollten zuerst auf die Einheit installiert werden. Einbau des Schwenkarms - Modell B-0665-BST 1. Nr. 6 beidseitig von Nr. 1 entfernen. 2. Für die Gewinde von Nr. 5 und Nr. 12 Loctite 680 verwenden. 3.
  • Seite 9 NOTES...
  • Seite 10 NOTES...
  • Seite 11 NOTES...
  • Seite 12 RELATED T&S BRASS PRODUCT LINE B-0657 Service Sink Faucet B-0669 Service Sink Faucet T&S BRASS AND BRONZE WORKS, INC. A firm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O. Box 1088, T & S Brass-Europe Travelers Rest, SC 29690 ‘De Veenhoeve’...
