BPW ECOMETER ( ECO Plus 2 )

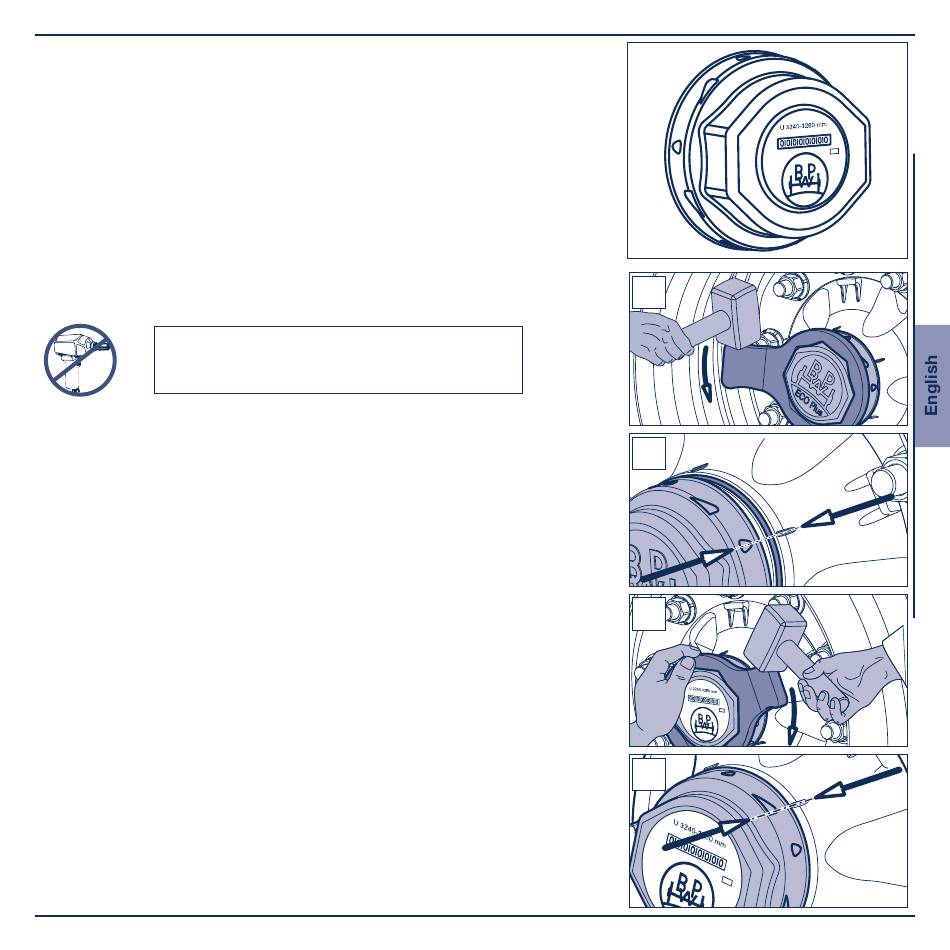

Hub caps with bayonet lock
Removal
Unscrew the hub cap with a 120 mm hub cap spanner.
Important: bayonet lock!
Do not use an impact driver.
Turn the hub cap back from position 1 to position 2 by turning
anti-clockwise about 30°. The hub cap lifts clearly off the ECO
unit in this position and can be pulled off axially.
Installation
Insert the new O-ring into the groove in the wheel hub. Apply
a thin layer of BPW ECO-Li Plus special longlife grease to the
hubcap in the area of the O-ring contact surface and the bayo-
net fi tting.
Push on the hub cap, see position 2, and turn it clockwise at the
same time as pressing on axially to lock it in place.
A tight seat is provided when position 4 is reached.
1
2
3
4
