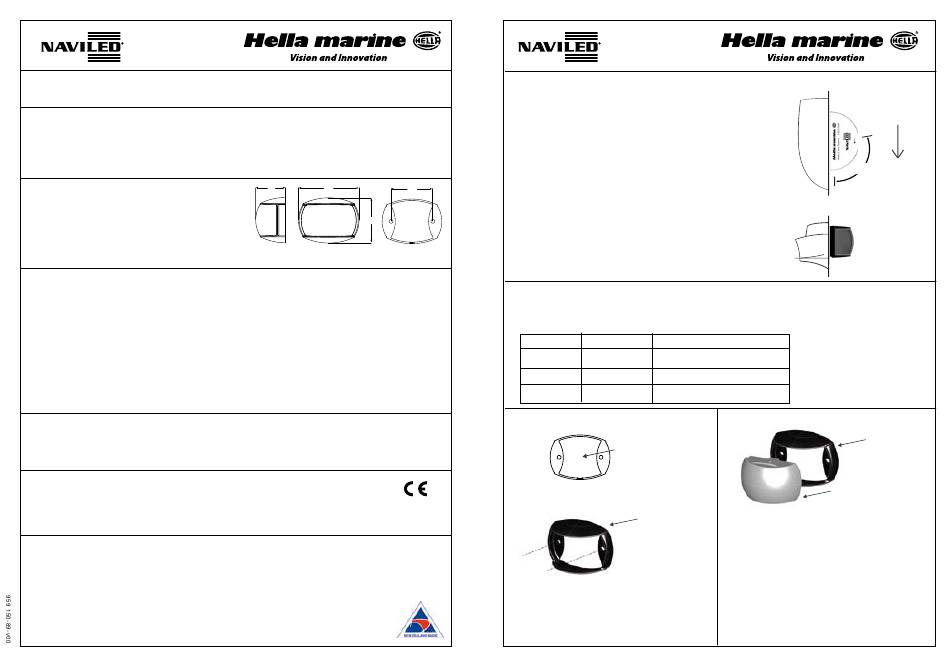

Hella marine NaviLED Installation

BSH-certified NaviLED
Port, Starboard, Stern Lamps
Introduction
Hella marine LED Navigation Lamps offer many advantages over conventional bulb lamps.
Significantly reduced power consumption, ultra long life and high tolerance to shock and vibration make Hella marine LED lamps the
ideal choice for the harsh marine environment.
Hella marine NaviLED ® Navigation Lamps are 'Precision Optical Instruments', tested and type approved to comply with international
maritime regulations.
Housing Description UV resistant lens, High impact shroud
Light source LED
Installation Pre-wired with marine cable
TM
Operating Voltage Multivolt 8-28V DC
Voltage Protection Spike protected to 500V
Reverse Polarity protected to -700V
Power Consumption Port and Starboard < 2W combined, Stern < 2W.
Protective System IP 67
2 Nautical Mile NaviLED ® International Approvals
This Hella marine 2 Nautical Mile NaviLED ® Navigation Lamp is tested and type approved for Powerboats and Sailboats to
comply with international maritime regulations.
Approval Type BSH (GermanFederal Maritime and Hydrographic Agency) for recreational craft of less than 50m in length,
Length (LOA) Approval No. BSH/4615/6010998/08 (Open Sea) und D.08.998 (German inland waterways)
Approval Type ABYC and NMMA
Length (LOA) Powerboats and Sailboats up to 20 meters in length.
Additional Approval USCG / IMO COL REG
Length (LOA) Powerboats and Sailboats up to 50 meters in length.
Approval Type RINA
Length (LOA) Powerboats and Sailboats up to 50 meters in length.
Please refer to www.hellamarine.com to view the certificates.
Service life time of BSH-certified NaviLED
® Port-, Starboard and Stern Lamps
Due to the degradation of LEDs, NaviLED ® Port-, Starboard and Stern lamps have to be replaced by new lamps after 12
years of service life on recreational vessels.
The manufacturing date marked on the forward edge of the outer lense counts as the starting date of these 12 years.
Electromagnetic Compatibility (EMC)
This LED lamp is an electronic device. The electrical circuits contain components that suppress possible interference,
both emission as well as susceptibility, to the limits prescribed in EN 60945.
Protection against damage due to voltage spikes
This lamp is protected against reverse polarity connection and negative voltage spikes of up to 700 volts.
Warranty Statement
Congratulations! The product you have selected comes from Hella marine - one of the world's leading
manufacturers marine lighting products.
Hella marine branded products are covered by a warranty against manufacturing or material defects. (For further details
please check the terms of trade with your Hella marine agent).
The lamp module is sealed and does not have any serviceable parts inside; opening the module will invalidate warranty.
In the unlikely event that you should experience a problem with your purchase, please contact your Hella marine agent
where you purchased the product.
For general comments products please contact us on E-mail at techfeedback@hellamarine.com
2 Nautical Mile
®
33 71 50
33 71 50
53
53
Positioning of Port and Starboard Lamps
Installation angle.
Parallel to the vessels centre line (see Fig.1) and so the rear surface of the
mounting shrouds are vertical (see Fig.2). Direction arrows point right ahead.
Position on a vessel.
Mounted in the same thwartships position and at the same height above the
water line and mark the effective beam of the vessel.
Positioning of Stern Lamps
Installation angle.
At right angles to the vessels centre line and so the rear surface of the mounting
shrouds are vertical. Direction arrow points right astern.
Position on a vessel.
As close as practical to the stern of the vessel.
When the lamps are operating, the light should not be obstructed or concealed
by superstructures or other objects.
Wiring Colour coding
LED modules are polarity conscious.
Reverse polarity will not damage this product but will inhibit its function.
Hella marine recommends wire connections be soldered, and heat shrink tubing applied to seal the joint.
Colour Connect to Power
Black Negative (-)
Red Signal (+) Port and Starboard <2W combined
Grey Signal (+) Stern <2W each
Installation Steps
Power cable position
Step 1
Make provisions for the power cable.
Markings
Step: 2 - Mount the Shroud
2.1 Shroud must be installed with markings on
the TOP horizontal surface.
2.2 Arrow must point right ahead for Port and Starboard
lamps and right astern for Stern lamps.
Fig.1 Parallel to the vessels centre line.
E.g. - Port Lamp
Top
view
112.5 Degrees.
Fig.2 Vertical to the vessels centre line.
E.g. - Port Lamp
Bow
view
Wiring
- Supply Voltage 8-28V DC
Nb: Lamp must be protected by a fuse
rated at 5 amperes maximum.
Shroud
Optic assembly
Step 3 - insert the Optic Assembly
Note - Arrow on top of Shroud and Arrow on top of Optic
Assembly must point right ahead for Port and Starboard
lamps and right astern for Stern lamps.
3.1 Connect power
3.2 Feed power cable
3.3 Push optic assembly into Shroud
www.hellamarine.com
