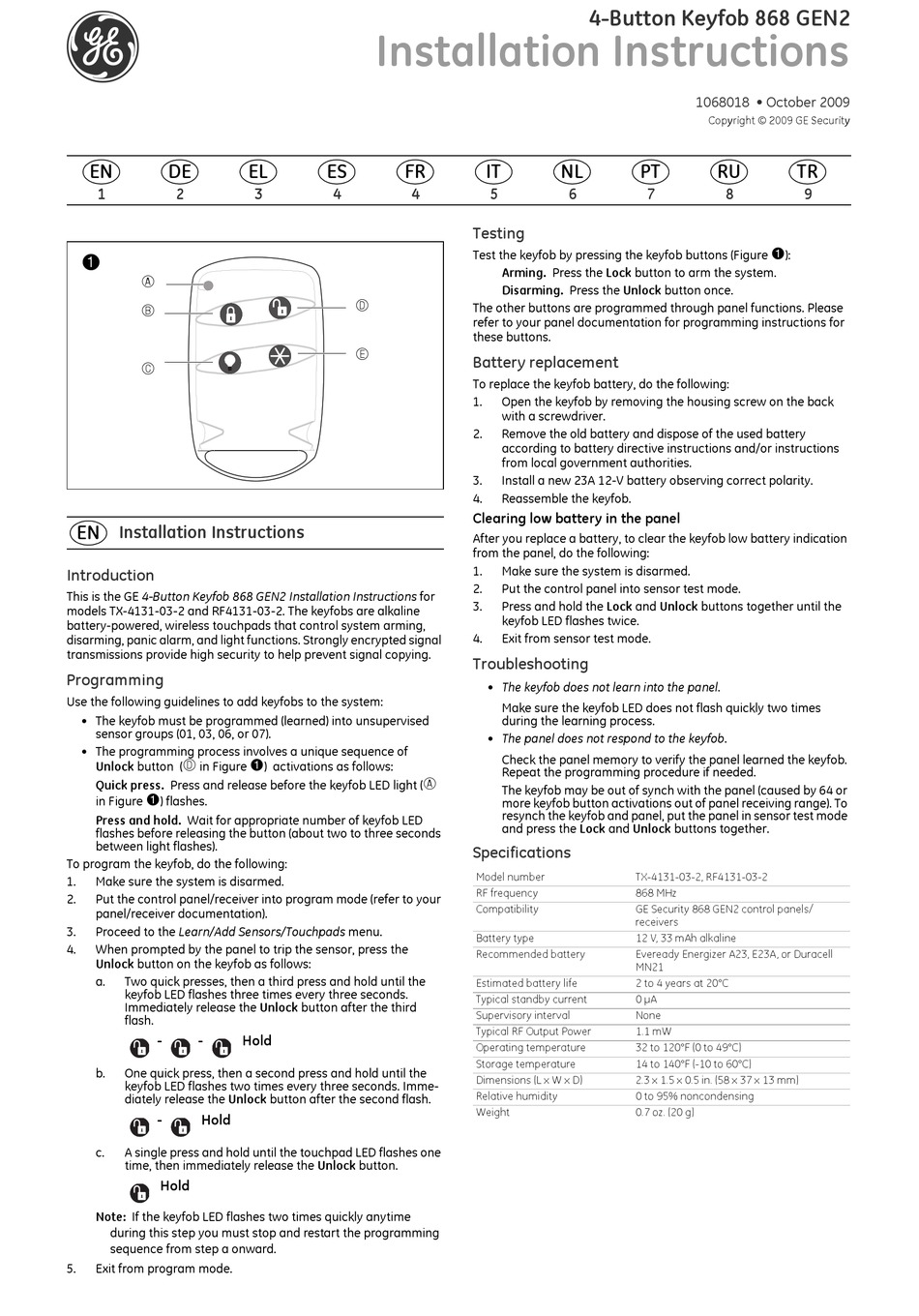

Installation Instructions
Introduction
This is the GE 4-Button Keyfob 868 GEN2 Installation Instructions for
models TX-4131-03-2 and RF4131-03-2. The keyfobs are alkaline
battery-powered, wireless touchpads that control system arming,
disarming, panic alarm, and light functions. Strongly encrypted signal
transmissions provide high security to help prevent signal copying.
Programming
Use the following guidelines to add keyfobs to the system:
• The keyfob must be programmed (learned) into unsupervised
sensor groups (01, 03, 06, or 07).
• The programming process involves a unique sequence of
Unlock button ( D in Figure
Quick press. Press and release before the keyfob LED light (
in Figure 1 ) flashes.
Press and hold. Wait for appropriate number of keyfob LED
flashes before releasing the button (about two to three seconds
between light flashes).
To program the keyfob, do the following:
1. Make sure the system is disarmed.
2. Put the control panel/receiver into program mode (refer to your
panel/receiver documentation).
3. Proceed to the Learn/Add Sensors/Touchpads menu.
4. When prompted by the panel to trip the sensor, press the
Unlock button on the keyfob as follows:
a. Two quick presses, then a third press and hold until the
keyfob LED flashes three times every three seconds.
Immediately release the Unlock button after the third
flash.
- -
b. One quick press, then a second press and hold until the
keyfob LED flashes two times every three seconds. Imme-
diately release the Unlock button after the second flash.
- Hold
c. A single press and hold until the touchpad LED flashes one
time, then immediately release the Unlock button.
Hold
Note: If the keyfob LED flashes two times quickly anytime
during this step you must stop and restart the programming
sequence from step a onward.
5. Exit from program mode.
Installation Instructions
EL ES FR
3 4 4
D
E
1 ) activations as follows:
Hold
4-Button Keyfob 868 GEN2
IT NL
5 6
Testing
Test the keyfob by pressing the keyfob buttons (Figure
Arming. Press the Lock button to arm the system.
Disarming. Press the Unlock button once.
The other buttons are programmed through panel functions. Please
refer to your panel documentation for programming instructions for
these buttons.
Battery replacement
To replace the keyfob battery, do the following:
1. Open the keyfob by removing the housing screw on the back
with a screwdriver.
2. Remove the old battery and dispose of the used battery
according to battery directive instructions and/or instructions
from local government authorities.
3. Install a new 23A 12-V battery observing correct polarity.
4. Reassemble the keyfob.
Clearing low battery in the panel
After you replace a battery, to clear the keyfob low battery indication
from the panel, do the following:
1. Make sure the system is disarmed.
2. Put the control panel into sensor test mode.
3. Press and hold the Lock and Unlock buttons together until the
keyfob LED flashes twice.
4. Exit from sensor test mode.
Troubleshooting
• The keyfob does not learn into the panel.
Make sure the keyfob LED does not flash quickly two times
during the learning process.
• The panel does not respond to the keyfob.
Check the panel memory to verify the panel learned the keyfob.
Repeat the programming procedure if needed.
A
The keyfob may be out of synch with the panel (caused by 64 or
more keyfob button activations out of panel receiving range). To
resynch the keyfob and panel, put the panel in sensor test mode
and press the Lock and Unlock buttons together.
Specifications
Model number
RF frequency
Compatibility
Battery type
Recommended battery
Estimated battery life
Typical standby current
Supervisory interval
Typical RF Output Power
Operating temperature
Storage temperature
Dimensions (L x W x D)
Relative humidity
Weight
1068018 • October 2009
Copyright © 2009 GE Security
PT RU TR
7 8 9
1 ):
TX-4131-03-2, RF4131-03-2
868 MHz
GE Security 868 GEN2 control panels/
receivers
12 V, 33 mAh alkaline
Eveready Energizer A23, E23A, or Duracell
MN21
2 to 4 years at 20°C
0 µA
None
1.1 mW
32 to 120°F (0 to 49°C)
14 to 140°F (-10 to 60°C)
2.3 x 1.5 x 0.5 in. (58 x 37 x 13 mm)
0 to 95% noncondensing
0.7 oz. (20 g)
