3-conductor track

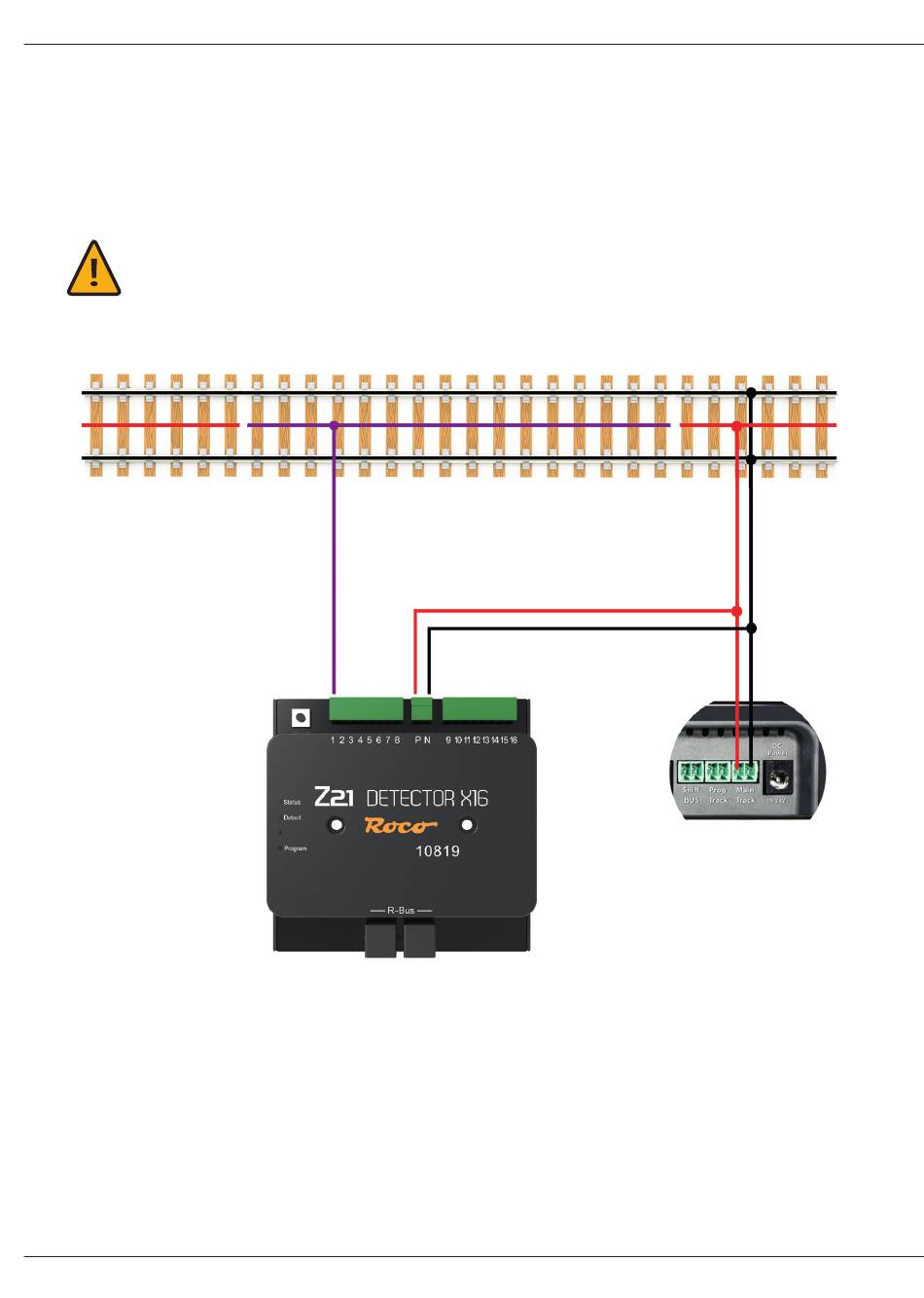

For the power supply, connect the inputs P and N to the corresponding booster outputs.
Separate both sides of the neutral conductor and connect the resulting occupied detector section to one
of the 16 occupied detector terminals.
Note: It is also the case here that both sides of the occupied detector sections are to be separated
from the system.
Please also ensure that the separation consistently takes place at the neutral conductor. Short
circuiting could otherwise occur when the separation points are crossed.
