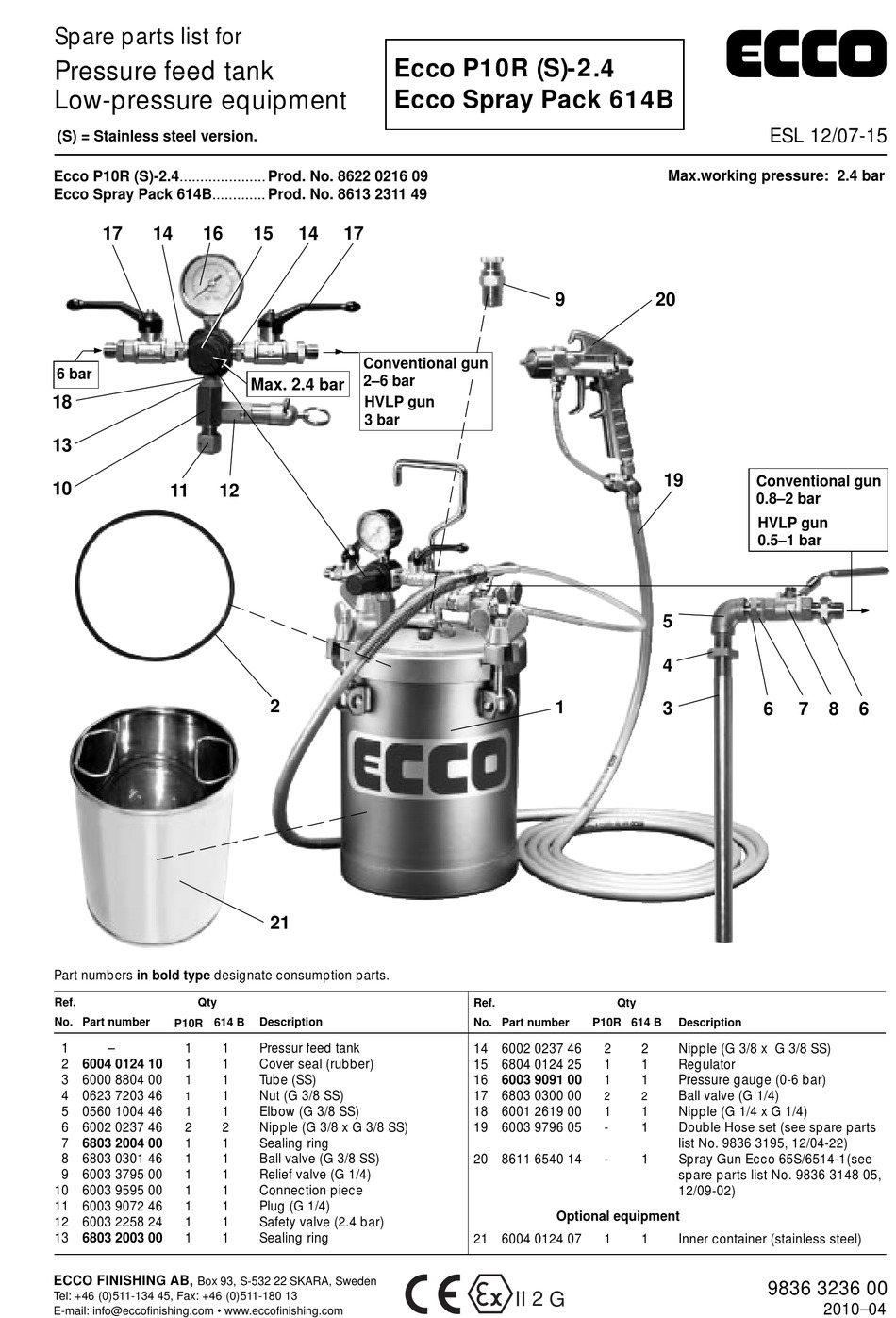

Spare parts list for
Pressure feed tank
Low-pressure equipment
(S) = Stainless steel version.
Ecco P10R (S)-2.4..................... Prod. No. 8622 0216 09
Ecco Spray Pack 614B............. Prod. No. 8613 2311 49
17
14
16
6 bar
18
13
10
11
12
Part numbers in bold type designate consumption parts.
Ref.
Qty
No. Part number
P10R 614 B
1
–
1
1
2 6004 0124 10
1
1
3 6000 8804 00
1
1
4 0623 7203 46
1
1
5 0560 1004 46
1
1
6 6002 0237 46
2
2
7 6803 2004 00
1
1
8 6803 0301 46
1
1
9 6003 3795 00
1
1
10 6003 9595 00
1
1
11 6003 9072 46
1
1
12 6003 2258 24
1
1
13 6803 2003 00
1
1
ECCO FINISHING AB,
Box 93, S-532 22 SKARA, Sweden
Tel: +46 (0)511-134 45, Fax: +46 (0)511-180 13
E-mail: info@eccofinishing.com • www.eccofinishing.com
Ecco P10R (S)-2.4
Ecco Spray Pack 614B
15
14
17
Conventional gun
2–6 bar
Max. 2.4 bar
HVLP gun
3 bar
2
21
Description
Pressur feed tank
Cover seal (rubber)
Tube (SS)
Nut (G 3/8 SS)
Elbow (G 3/8 SS)
Nipple (G 3/8 x G 3/8 SS)
Sealing ring
Ball valve (G 3/8 SS)
Relief valve (G 1/4)
Connection piece
Plug (G 1/4)
Safety valve (2.4 bar)
Sealing ring
9
1
Ref.
Qty
No. Part number
P10R 614 B
14 6002 0237 46
2
2
15 6804 0124 25
1
1
16 6003 9091 00
1
1
17 6803 0300 00
2
2
18 6001 2619 00
1
1
19 6003 9796 05
-
1
20 8611 6540 14
-
1
Optional equipment
21 6004 0124 07
1
1
II 2 G
ECCO
ESL 12/07-15
Max.working pressure: 2.4 bar
20
19
Conventional gun
0.8–2 bar
HVLP gun
0.5–1 bar
5
4
3
6
7
Description
Nipple (G 3/8 x G 3/8 SS)
Regulator
Pressure gauge (0-6 bar)
Ball valve (G 1/4)
Nipple (G 1/4 x G 1/4)
Double Hose set (see spare parts
list No. 9836 3195, 12/04-22)
Spray Gun Ecco 65S/6514-1(see
spare parts list No. 9836 3148 05,
12/09-02)
Inner container (stainless steel)
9836 3236 00
2010–04
8
6
