PROEM CIR10 Installationsanleitung Seite 3

INFRARED PHOTOCELLS
Thank you for your choice of a product PROEM. You are recommended to read
carefully this manual before tinstalling the product.
Description
The infrared photocells PROEM mod. CIR10 are a security device designed to the
protection of areas in which are operating automatic closing systems.
The product is composed by a couple of fixed optic infrared devices TX and RX,
operating at 880 nm wavelength.
The rated range is 10 mt under all whether conditions ( rain, fog, dust ).
The reduced dimensions allow an easy installation procedure on any type of
structure.
Technical specifications
Infrared emission with diode:
Continuous modulation:
Wavelength emission:
Power supply:
Current consumption at 12 Vac/dc
- receiver:
- transmitter:
Current consumption at 24 Vac/dc
- receiver:
- transmitter:
Double contact relay with serial exchange: yes
Output contacts:
Max DC power on the relay contacts:
Max AC power on the relay contacts:
Operating temperature:
Best alignment test point.
Base plate in thermoplastic rubber.
IP Grade:
Rated range in all conditions:
Dimensions (mm):
Conformity according to:
Marking:
Packing list
Seals
Transmitter
Receiver
Plastic covers
Photocell fixing screws
Cover fixing screws
Plastic plugs Ø5
Drilling template

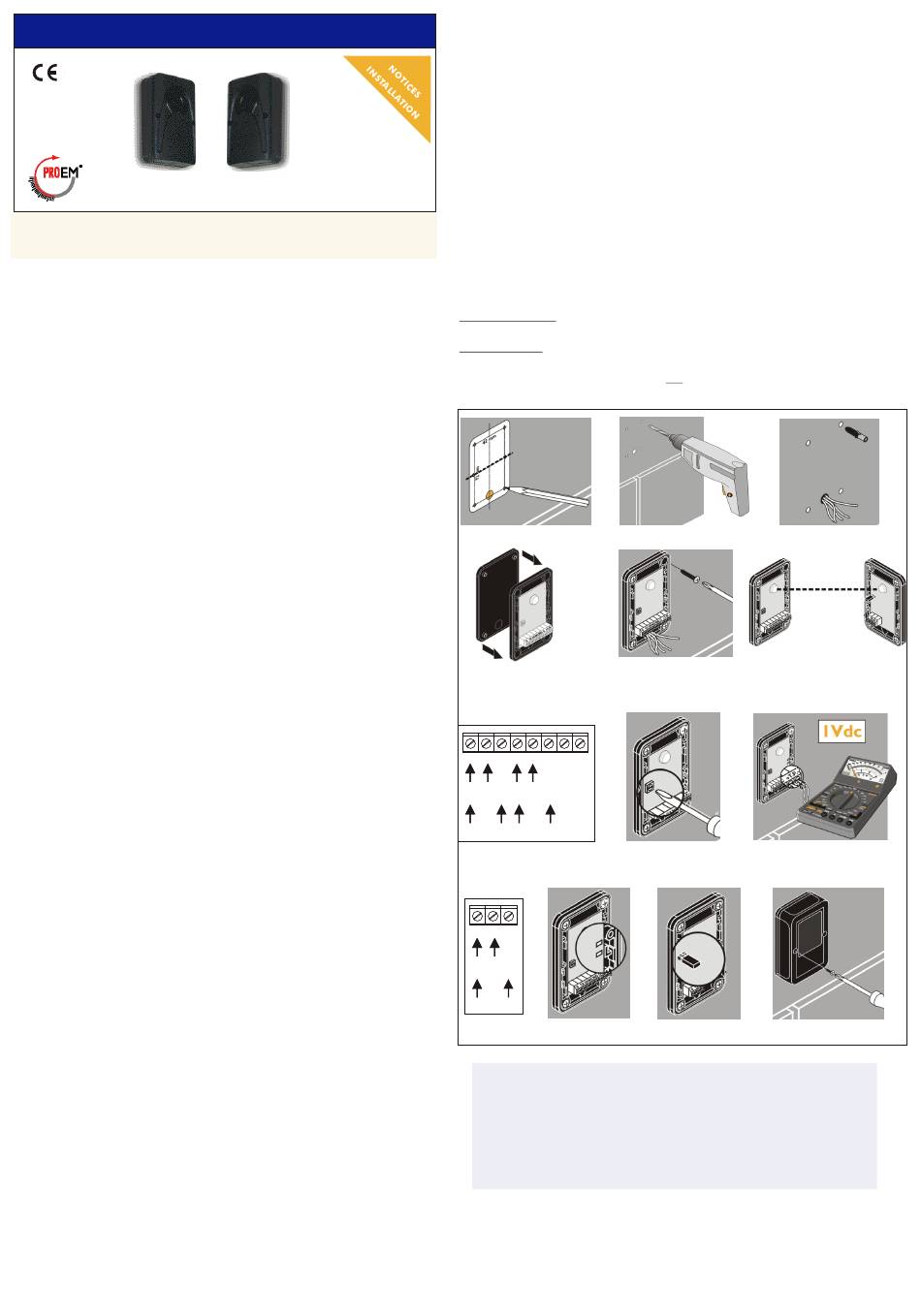

Installation phases
1 - Mark the location of the fixing holes using the drilling template supplied
with the photocells( Fig. 1);
2 - Drill the 4 fixing holes for base . (Hole diam: 5mm);
3 - Locate the 4 plastic plugs provided (Fig. 3);
4 - Assemble the seal and the photocells (Fig. 4);
5 - Mount the photocell with the screws supplied;
6 - Make the electrical connections, power the receiver ( Fig. 7) and the
transmitter ( Fig. 10);
- 12 Vac/dc : terminals 0 - 12;
- 24 Vac/dc : terminals 0 - 24.
7 - After the adjustment ( Fig. 8), fit the cover using the screws supplied (Fig.
13)
Recommended cable cross-section:
- transmitter photocells 2 x 0,6 mm
- receiver photocells 4 x 0,6 mm
CIR10
GaAlAs
1,5 KHz
880 nm
12 - 24 Vac/dc
34 mA
45 mA
34 mA
42 mA
1 NO / 1 NC
24 W / 48 V
60 VA / 48 V
-10°C /+55°C
IP55
20 m
98x 60 x 22
UNI8612
CE
2
1
1
2
8
4
8
1
2
2
Connect the output contact to the terminals C eand NO for a normally open
contact or C and NC for a normally closed contact ( Fig. 7 ).
Alignment
Align the transmitter and the receiver so that the beam is established and the red
led (LR) goes off ( Fig. 6 and Fig. 8 ).
Sensitivity adjustment
If the distance between the transmitter and the receiver is less than 5 metres remove
the bridge on the transmitter ( Fig. 12 ).
Adjust the sensitivity with the trimmer on the receiver ( Fig. 8 ).
The optimum detection is obtained when a voltage of 1 Vdc is read across
terminals T and P ( read the voltage with a voltmeter - Fig. 9).
On the transmitter
The green led is ON when the transmitter is powered.
On the receiver
- The green led is ON when the receiver is powered ( Fig. 11 );
- The red led is ON when the beam is not established (Fig. 11).
Fig. 1
Fig. 4
Receiver
0 12 24 C NO NC +T. P .
12 Vac/dc
N.A.
N.C.
24 Vac/dc
Fig. 7
Transmitter
0 12 24
12 Vac/dc
24 Vac/dc
Fig. 10
Fig. 11
GUARANTEE
The guarantee period of all PROEM products is 24 months, beginning
from the manufacturer date. During this period, if the product does
not work correctly, due to a defective component, the product will be
repaired or substituted at the discretion of the producer. The
guarantee does not cover the plastic container integrity. After-sale
service is supplied at the producer's factory.
