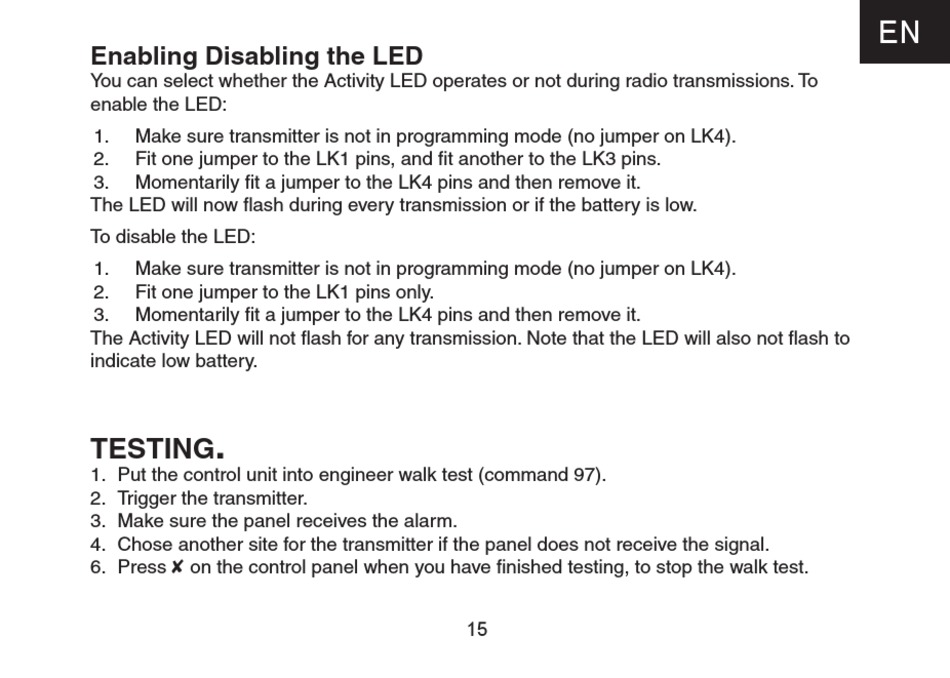

Enabling Disabling the LED
You can select whether the Activity LED operates or not during radio transmissions. To
enable the LED:
1. Make sure transmitter is not in programming mode (no jumper on LK4).
2. Fit one jumper to the LK1 pins, and fit another to the LK3 pins.
3. Momentarily fit a jumper to the LK4 pins and then remove it.
The LED will now flash during every transmission or if the battery is low.
To disable the LED:
1. Make sure transmitter is not in programming mode (no jumper on LK4).
2. Fit one jumper to the LK1 pins only.
3. Momentarily fit a jumper to the LK4 pins and then remove it.
The Activity LED will not flash for any transmission. Note that the LED will also not flash to
indicate low battery.
.
TESTING
1. Put the control unit into engineer walk test (command 97).
2. Trigger the transmitter.
3. Make sure the panel receives the alarm.
4. Chose another site for the transmitter if the panel does not receive the signal.
6. Press  on the control panel when you have finished testing, to stop the walk test.
