Preparations prior testing the vehicle
• The vehicle should be at operating temperature.
• Set the air conditioning system to maximum cold.
• Set the speed of the blower on maximum.
• Only use vents in the centre of the car (close others).
• The airflow should be positioned and set at face vent level. Position a temperature
probe in the centre allowing you to measure the air outlet temperature.
• Connect a gauge or A/C service station to allow you to view the operating
low and high side system pressures.
• Disconnect the plug on the A/C compressor control valve or control valve harness.
Connect the appropriate CLT1 Universal, VAG-group or Denso harness.
• Connect the simulator to the disconnected control valve plug.

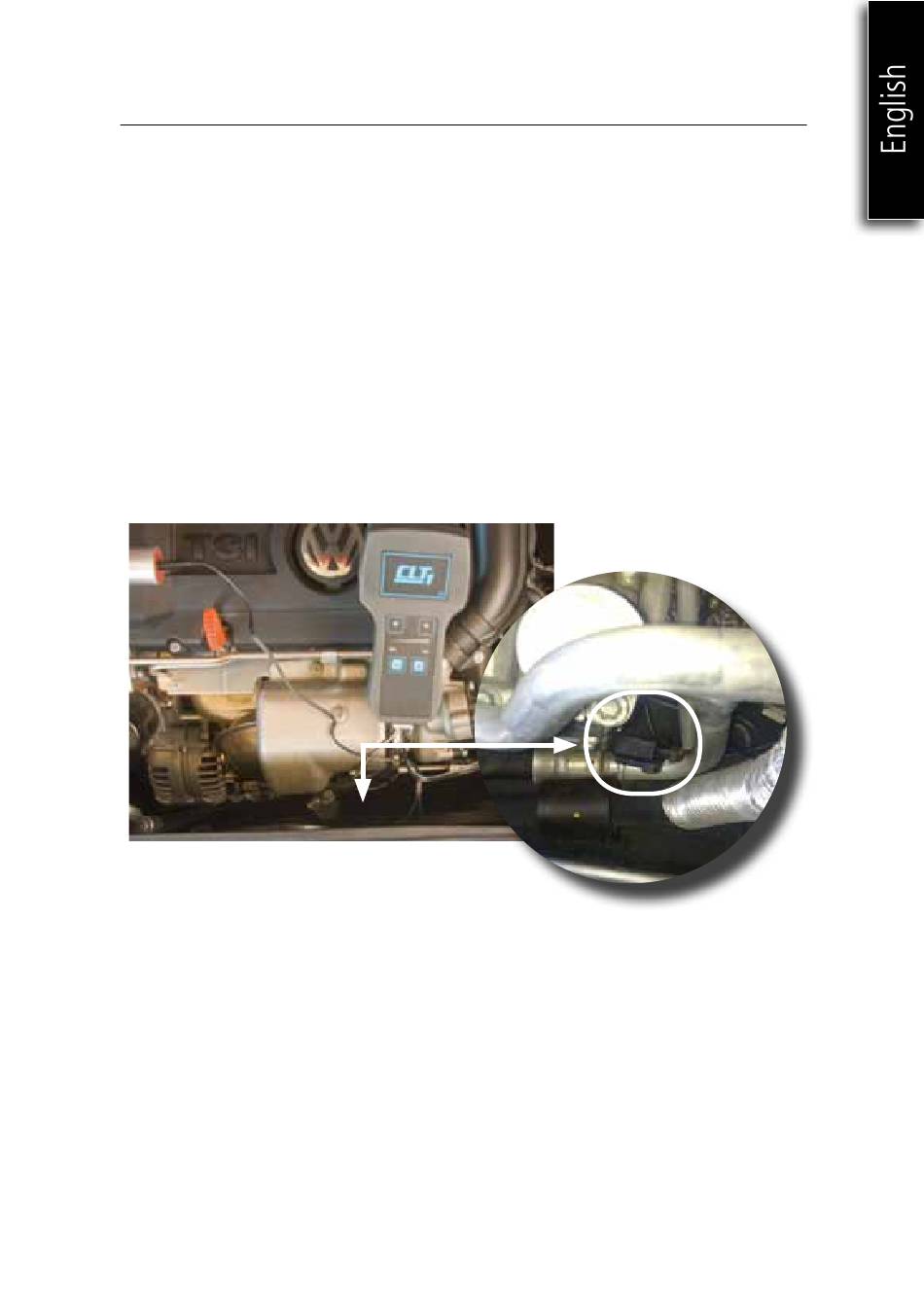

Shows you an example of the CLT1 connected to a compressor.
General Advice
The 12V battery power supply should be maintained for the protection of the test
equipment and the compressor.
