DIGITAL MEDIA RECEIVER
RÉCEPTEUR NUMÉRIQUE MULTIMÉDIA
RICEVITORE MULTIMEDIALE DIGITALE
RECEPTOR DE MEDIOS DIGITALES
DIGITALER MEDIA RECEIVER
DIGITALE MEDIA-RECEIVER

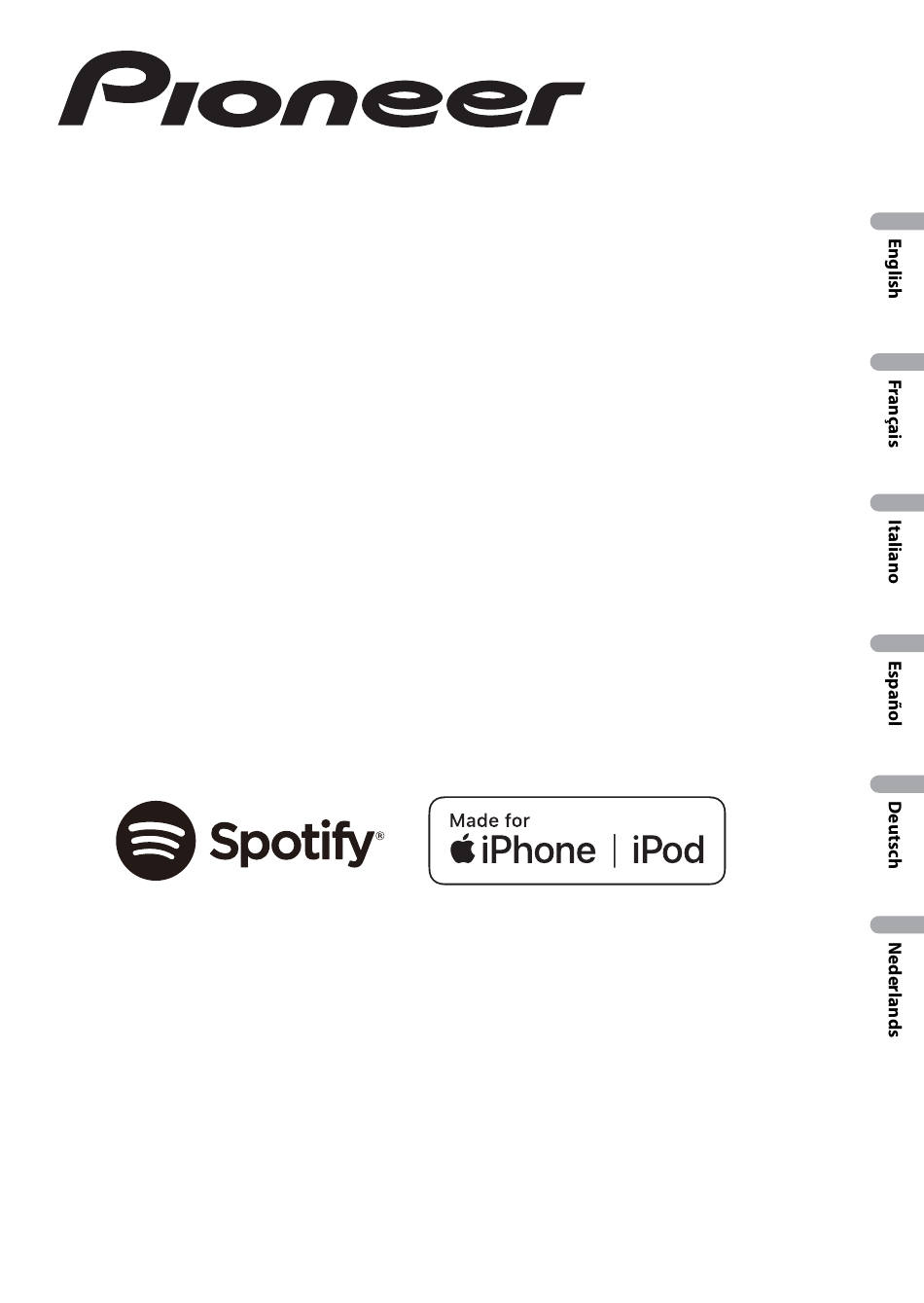

Operation Manual

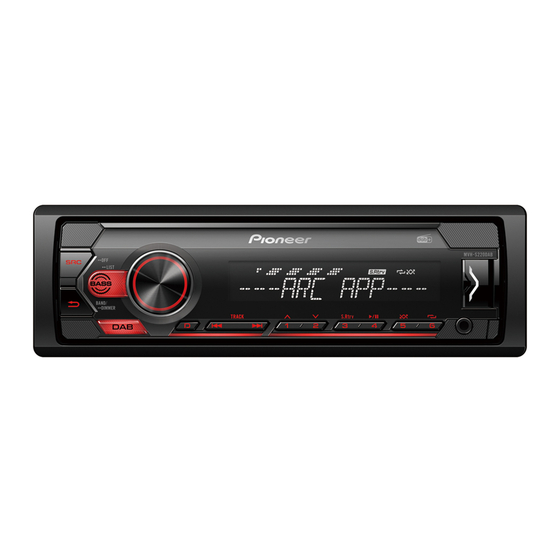

MVH-S220DAB
Mode d'emploi
Manuale d'istruzioni
Manual de instrucciones
Bedienungsanleitung
Bedieningshandleiding

Werbung

loading

Inhaltszusammenfassung für Pioneer MVH-S220DAB

  • Seite 1 DIGITAL MEDIA RECEIVER RÉCEPTEUR NUMÉRIQUE MULTIMÉDIA RICEVITORE MULTIMEDIALE DIGITALE RECEPTOR DE MEDIOS DIGITALES DIGITALER MEDIA RECEIVER DIGITALE MEDIA-RECEIVER Operation Manual MVH-S220DAB Mode d’emploi Manuale d’istruzioni Manual de instrucciones Bedienungsanleitung Bedieningshandleiding...
  • Seite 2: Inhaltsverzeichnis

    Digital Audio Broadcasting (DAB) ............6 Radio ......................7 USB/iPod®/AUX ..................9 App Mode ....................12 Spotify® ....................13 Using Pioneer ARC APP ............... 14 Settings ....................16 FUNCTION settings ................16 AUDIO settings ..................18 SYSTEM settings ..................20 ILLUMINATION settings................
  • Seite 3: Getting Started

    Getting Started Basic operation MVH-S220DAB BASS USB port M.C. (multi-control) dial SRC (source)/OFF DISP (display) Detach button Display window BAND/ AUX input jack (3.5 mm stereo jack) Frequently used operations Purpose Operation Turn on the power* Press SRC/OFF to turn on the power.
  • Seite 4: Display Indication

    Display indication Indication Description Appears when a lower tier of the menu or folder exists. Appears when the BASS button is pressed and held. Appears when the local seek tuning function is set (page 17). Appears when a traffic program is received. Appears when the TA (traffic announcements) function is set (page 17).
  • Seite 5: Initial Settings

    Turn the M.C. dial to select the options, then press to confirm. To proceed to the next menu option, you need to confirm your selection. Menu Item Description LANGUAGE Select the language to display the text information from a compressed audio file. [ENG](English), [РУС](Russian), [TUR](Turkish)
  • Seite 6: Digital Audio Broadcasting (Dab)

    Press and hold SRC/OFF to display the main menu. Turn the M.C. dial to select [INITIAL], then press to confirm. Turn the M.C. dial to select an option, then press to confirm. Menu Item Description FM STEP Select the FM tuning step from 100 kHz or 50 kHz. [100], [50] SP-P/O MODE Select when there is a full-range speaker connected to the rear...
  • Seite 7: Radio

    Seeking a service component/station Press SRC/OFF to select [DIGITAL RADIO]. Press BAND/ to select the band from [D1], [D2] or [D3]. Press to select a service component/station. NOTE Press and hold then release to seek an available service. Scanning stops when the unit receives a service.
  • Seite 8: Receiving Preset Stations

    Receiving preset stations Press SRC/OFF to select [RADIO]. Press BAND/ to select the band from [FM1], [FM2], [FM3], [MW] or [LW]. Press a number button (1/ to 6/ buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings (page 17).
  • Seite 9: Usb/Ipod®/Aux

    The unit begins to search for a station. When it is found, its program service name is displayed. NOTES • To cancel the search, press the M.C. dial. • The program of some stations may differ from that indicated by the transmitted PTY. •...
  • Seite 10 Insert the stereo mini plug into the AUX input jack. Press SRC/OFF to select [AUX] as the source. NOTE If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source (page 20). Operations You can make various adjustments in the FUNCTION settings (page 16). Note that the following operations do not work for an AUX device.
  • Seite 11: Ipod Control

    Purpose Operation Pause/resume playback Press 4/PAUSE. Sound retriever Press 3/S.Rtrv. [1]: Effective for low compression rates [2]: Effective for high compression rates Return to root folder (USB only)*1 Press and hold 1/ Change drives in USB device Press BAND/ (Devices that support the USB mass storage device class protocol only) *1 Compressed audio files only *2 When you use the fast forward or reverse function while playing a VBR file, the playback time may...
  • Seite 12: App Mode

    This function is compatible with iPhone and iPod touch® installed with iOS 5.0 or later. NOTE PIONEER IS NOT LIABLE FOR ANY THIRD PARTY APPS OR CONTENT, INCLUDING WITHOUT LIMITATION THEIR ACCURACY OR COMPLETENESS. THE CONTENT AND FUNCTIONALITY OF SUCH APPS ARE THE SOLE RESPONSIBILITY OF THE APP PROVIDER.
  • Seite 13: Spotify

    Spotify® (MVH-S220DAB is only compatible with Spotify installed on iPhone.) Spotify is a music streaming distribution service not affiliated with Pioneer. More information is available at http://www.spotify.com. The Spotify application is available for compatible smartphones, please visit https:// support.spotify.com/ for the latest compatibility information.
  • Seite 14: Using Pioneer Arc App

    Some functions of Spotify may not be operated from the unit. Using Pioneer ARC APP You can operate the unit from Pioneer ARC APP installed on an iPhone/Android device. In some cases, you can control aspects of the application, such as source selection, pause, etc., by using the unit.
  • Seite 15: When Making A Connection With An Android Device

    Pioneer ARC APP on the Android device starts automatically. NOTE If Pioneer ARC APP has not been installed on your Android device yet, a message that prompts you to install the application will appear on your Android device. Select [OFF] in [P.APP AUTO ON] to clear the message (page 21).
  • Seite 16: Settings

    Purpose Operation Pause/resume playback Press 4/PAUSE. Sound retriever Press 3/S.Rtrv. [1]: Effective for low compression rates [2]: Effective for high compression rates Settings You can adjust various settings in the main menu. Press the M.C. dial to display the main menu. Turn the M.C.
  • Seite 17 Menu Item Description ENSEMBLE Displays the list of relevant ensembles. FM SETTING [TALK], [STANDARD], [MUSIC] Match the sound quality level with the broadcast signal conditions of the FM band signal. (Available only when FM band is selected.) Store the six strongest stations on the number buttons (1/ to 6/ ) automatically.
  • Seite 18: Audio Settings

    Menu Item Description SAVE Store the information about the song currently being played to your music list on Spotify. UNSAVE Remove the song information stored in [SAVE]. S.RTRV iPod [1] (effective for low compression Enhance compressed audio and restore rich rates), sound.
  • Seite 19 Menu Item Description EQ SETTING [SUPER BASS], [POWERFUL], Select or customise the equalizer curve. [DYNAMIC], [NATURAL], [VOCAL], [CUSTOM1] can be set separately for each source. [VIVID], [CUSTOM1], [CUSTOM2], However, each of the below combinations are set [FLAT] to the same setting automatically. •...
  • Seite 20: System Settings

    SYSTEM settings You can also access to these menus when the unit is turned off. Menu Item Description LANGUAGE [ENG](English), [РУС](Russian), Select the language to display the text [TUR](Turkish) information from a compressed audio file. CLOCK SET Set the clock (page 5). 12H/24H [12H], [24H] Select the time notation.
  • Seite 21: Illumination Settings

    Menu Item Description P.APP AUTO ON [ON], [OFF] Select [ON] to automatically launch Pioneer ARC APP when an Android device is connected to the unit via AOA. (Not available when [MEMORY] is selected in [ANDROID WIRED].) USB AUTO [ON], [OFF]...
  • Seite 22: Additional Information

    ON again. If the message remains, the selected range may change when contact your dealer or an authorized another folder or track is being selected Pioneer Service Station for assistance. or during fast forwarding/reversing. – Select the repeat play range again. USB device/iPod A subfolder is not played back.
  • Seite 23 – Disconnect the cable from the iPod. N/A USB Once the iPod’s main menu is → The connected USB device is not displayed, reconnect the iPod and supported by this unit. reset it. – Disconnect your device and replace it with a compatible USB device.
  • Seite 24: Compressed Audio Compatibility

    Quantization bits 8 and 16 (LPCM) CAUTION Sampling frequency 16 kHz to 48 kHz • Pioneer cannot guarantee compatibility (LPCM) with all USB mass storage devices, and assumes no responsibility for any loss of AAC files data on media players, smartphones, or other devices while using this product.
  • Seite 25: Usb Device

    Playable folder Up to eight tiers (A CAUTION hierarchy practical hierarchy is Pioneer accepts no responsibility for data less than two tiers.) lost on the iPod, even if that data is lost Playable folders Up to 500 while this unit is used.
  • Seite 26 Copyright and trademark Specifications iTunes General Apple and iTunes are trademarks of Apple Power source: 14.4 V DC (10.8 V to 15.1 V Inc., registered in the U.S. and other allowable) countries. Grounding system: Negative type Maximum current consumption: 10.0 A Windows Media is either a registered Dimensions (W ×...
  • Seite 27: Dab Tuner

    MTP (Media Transfer Protocol) AOA (Android Open Accessory) 2.0 File system: FAT12, FAT16, FAT32 MP3 decoding format: MPEG-1 & 2 Audio Layer 3 WMA decoding format: Ver. 7, 8, 9, 9.1, 9.2 (2 ch audio) AAC decoding format: MPEG-4 AAC (iTunes encoded only) (Ver.
  • Seite 28 Radiodiffusion numérique (Digital Audio Broadcasting – DAB) ..7 Radio ......................8 USB/iPod®/AUX ..................10 Mode d’application ................13 Spotify® ....................15 Utilisation de Pioneer ARC APP ............16 Réglages....................18 Réglages FUNCTION ................19 Réglages AUDIO ..................21 Réglages SYSTEM .................. 22 Réglages ILLUMINATION..............
  • Seite 29: Mise En Route

    Mise en route Fonctionnement de base MVH-S220DAB BASS Port USB Molette M.C. (multi-contrôle) SRC (source)/OFF DISP (affichage) Touche de retrait Fenêtre d’affichage BAND/ Prise d’entrée AUX (prise stéréo 3,5 mm) Opérations fréquemment utilisées Objectif Opération Mettre l’appareil sous tension* Appuyez sur SRC/OFF pour mettre l’appareil sous tension.
  • Seite 30: Retrait De La Face Avant

    * Si le fil bleu/blanc de l’appareil est relié à la borne de commande du relais d’antenne automatique du véhicule, l’antenne se déploie lorsque la source de cet appareil est mise en service. Pour rétracter l’antenne, mettez la source hors service. Indication de l’affichage Indication Description...
  • Seite 31: Menu De Configuration

    Menu de configuration Lorsque vous mettez le contact sur ON après avoir installé l’appareil, [SET UP :YES] s’affiche. Appuyez sur la molette M.C.. Si vous n’utilisez pas l’appareil dans les 30 secondes qui suivent, le menu de configuration disparaît. Si vous préférez ne pas effectuer la configuration pour l’instant, tournez la molette M.C.
  • Seite 32 Annulation de l’affichage de démonstration (DEMO OFF) Appuyez sur la molette M.C. pour afficher le menu principal. Tournez la molette M.C. pour sélectionner [SYSTEM], puis appuyez pour valider. Tournez la molette M.C. pour sélectionner [DEMO OFF], puis appuyez pour valider. Tournez la molette M.C.
  • Seite 33: Radiodiffusion Numérique (Digital Audio Broadcasting - Dab)

    Élément de menu Description S/W UPDATE À sélectionner pour valider les dernières informations relatives au système de l’appareil. [SYSTEM INFO] [SYSTEM UPDATE] À sélectionner pour effectuer la dernière mise à jour des logiciels de l’appareil et réinitialiser ses réglages. Pour obtenir de plus amples informations sur les derniers logiciels et mises à...
  • Seite 34: Radio

    Pour sélectionner un composant de service ou une station dans des listes de services Pendant la réception DAB, appuyez longuement sur BASS. Affiche une liste de l’ensemble des composants de service/stations. Appuyez à nouveau longuement sur BASS pour rechercher un composant de service ou une station par ordre alphabétique.
  • Seite 35: Mémoire Des Meilleures Stations (Bsm)

    Appuyez sur BAND/ pour sélectionner la bande [FM1], [FM2], [FM3], [MW] ou [LW]. Appuyez sur l’une des touches numériques (1/ à 6/ CONSEIL Les touches peuvent également servir à sélectionner une station préréglée lorsque [SEEK] est réglé sur [PCH] dans les réglages FUNCTION (page 20). Mémoire des meilleures stations (BSM) Les six stations les plus puissantes sont mémorisées sur les touches numériques (1/ à...
  • Seite 36: Usb/Ipod®/Aux

    Tournez la molette M.C. pour sélectionner le type de programme [NEWS/INFO], [POPULAR], [CLASSICS] ou [OTHERS]. Appuyez sur la molette M.C.. L’appareil continue à rechercher une station. Lorsqu’il en trouve une, son nom de service de programme s’affiche. REMARQUES • Pour annuler la recherche, appuyez sur la molette M.C.. •...
  • Seite 37 REMARQUE Si vous utilisez une connexion MTP, vous devez régler [ANDROID WIRED] sur [MEMORY] dans les paramètres SYSTEM (page 23). Insérez la mini-fiche stéréo dans la prise d’entrée AUX. Appuyez sur SRC/OFF pour sélectionner la source [AUX]. REMARQUE Si [AUX] est réglé sur [OFF] dans les réglages SYSTEM, il est impossible de sélectionner [AUX] en tant que source (page 23).
  • Seite 38 Objectif Opération Recherche alphabétique (iPod uniquement) 1 Appuyez longuement sur BASS pour afficher la liste. 2 Tournez la molette M.C. pour sélectionner la liste de catégories de votre choix, puis appuyez longuement sur BASS pour accéder au mode de recherche alphabétique. (Pour accéder au mode de recherche alphabétique, vous pouvez également tourner deux fois la molette M.C..)
  • Seite 39: Mode D'application

    Fonctions utiles pour iPod Mode de lecture en lien Vous pouvez accéder à des morceaux en vous basant sur l’artiste, l’album ou le genre en cours de lecture. Pendant l’écoute d’un morceau, appuyez longuement sur 4/PAUSE pour entrer en mode de lecture en lien. Tournez la molette M.C.
  • Seite 40: Opérations De Base

    REMARQUE PIONEER DÉCLINE TOUTE RESPONSABILITÉ QUANT AUX APPLICATIONS OU AUX CONTENUS TIERS, Y COMPRIS, SANS S’Y LIMITER, QUANT À LEUR EXACTITUDE OU À LEUR EXHAUSTIVITÉ. LE CONTENU ET LA FONCTIONNALITÉ DE CES APPLICATIONS RELÈVENT DE LA SEULE RESPONSABILITÉ DU FOURNISSEUR DE L’APPLICATION.
  • Seite 41: Spotify

    (MVH-S220DAB est compatible uniquement avec les iPhone sur lesquels Spotify est installé.) Spotify est un service de diffusion de musique en continu non affilié à Pioneer. Des informations complémentaires sont disponibles sur http://www.spotify.com. L’application Spotify est disponible pour les smartphones compatibles ; veuillez consulter https://support.spotify.com/ afin d’obtenir les dernières informations sur la...
  • Seite 42: Utilisation De Pioneer Arc App

    Certaines fonctions de Spotify ne peuvent pas être activées à partir de cet appareil. Utilisation de Pioneer ARC APP Vous pouvez faire fonctionner l’appareil à partir de Pioneer ARC APP installé sur un périphérique iPhone/Android. Dans certains cas, vous pouvez commander des aspects de l’application, par exemple, la sélection de la source, la mise en pause, etc.
  • Seite 43 Pioneer ARC APP sur le périphérique Android démarre automatiquement. REMARQUE Si Pioneer ARC APP n’a pas encore été installée sur votre appareil Android, un message vous invitant à l’installer apparaîtra sur votre appareil Android. Sélectionnez [OFF] dans [P.APP AUTO ON] pour effacer le message (page 24).
  • Seite 44: Réglages

    Appuyez longuement sur la molette M.C.. Pioneer ARC APP sur le iPhone démarre. REMARQUE En cas d’échec de la connexion, lancez Pioneer ARC APP sur le iPhone. Écoute de musique sur Android Appuyez sur SRC/OFF pour sélectionner [ANDROID]. Opérations de base Objectif Opération...
  • Seite 45: Réglages Function

    Réglages FUNCTION Les éléments de menu varient selon la source. Élément de menu Description S.FOLLOW [ON], [OFF] Recherchez un autre ensemble prenant en charge le même composant de service ou la même station avec une meilleure réception. Si aucun autre composant de service ou aucune autre station n’est trouvée ou si la réception reste médiocre, l’appareil passe automatiquement à...
  • Seite 46 Élément de menu Description LOCAL FM : [OFF], [LV1], [LV2], [LV3], Restreignez la station d’accord suivant la [LV4] puissance du signal. MW/LW : [OFF], [LV1], [LV2] [DAB+RDS TA] Recevez les bulletins d’informations routières pour DAB et RDS (DAB est prioritaire) selon les disponibilités.
  • Seite 47: Réglages Audio

    Élément de menu Description S.RTRV iPod [1] (efficace pour les taux de Améliorez l’audio compressé et restaurez un son compression faibles), riche. [2] (efficace pour les taux de compression élevés), [OFF] AUDIO BOOK iPod [FASTER], [NORMAL], [SLOWER] Modifiez la vitesse de lecture. (Indisponible lorsque [CONTROL iPod] est sélectionné...
  • Seite 48: Réglages System

    Élément de menu Description LOUDNESS [OFF], [LOW], [MID], [HI] Compensez pour obtenir un son net à faible volume. SUB.W*2 [NOR], [REV], [OFF] Sélectionnez la phase du haut-parleur d’extrêmes graves. SUB.W CTRL*2*3 Fréquence de coupure : [50HZ], Seules les fréquences inférieures à celles de la [63HZ], [80HZ], [100HZ], [125HZ], gamme sélectionnée sont émises par le haut- [160HZ], [200HZ]...
  • Seite 49 Élément de menu Description LANGUAGE [ENG] (anglais), [РУС] (russe), Sélectionnez la langue d’affichage des [TUR] (turc) informations textuelles à partir d’un fichier audio compressé. CLOCK SET Réglez l’horloge (page 5). 12H/24H [12H], [24H] Sélectionnez la notation de l’heure. SCROLL SET [ONCE], [LOOP], [OFF] Sélectionnez la manière de dérouler le texte dans la fenêtre d’affichage.
  • Seite 50: Réglages Illumination

    Élément de menu Description P.APP AUTO ON [ON], [OFF] Sélectionnez [ON] pour lancer automatiquement Pioneer ARC APP lorsqu’un périphérique Android est connecté à l’appareil via AOA. (Indisponible lorsque [MEMORY] est sélectionné sous [ANDROID WIRED].) USB AUTO [ON], [OFF] Sélectionnez [ON] pour basculer automatiquement sur la source [USB] lorsqu’un...
  • Seite 51: Informations Complémentaires

    à ordinaire. → Vous n’avez exécuté aucune opération votre revendeur ou à un centre d’entretien agréé par Pioneer. pendant environ 30 secondes. – Exécutez une opération. NO XXXX (ex. : NO TITLE) → Aucune information textuelle n’est L’étendue de lecture répétée change de...
  • Seite 52 • Changez de source. SKIPPED → Panne de l’iPod. → Le périphérique USB connecté contient – Débranchez le câble de l’iPod. Une fois des fichiers protégés par DRM. le menu principal de l’iPod affiché, – Les fichiers protégés sont sautés. reconnectez et réinitialisez l’iPod.
  • Seite 53 – Le périphérique de stockage peut ne PRÉCAUTION pas être reconnu. • Pioneer ne garantit pas la compatibilité – Les fichiers peuvent ne pas être lus correctement. avec tous les périphériques de stockage – Le périphérique peut générer des de masse USB et décline toute...
  • Seite 54: Périphérique Usb

    Débit binaire 8 kbps à 320 kbps Hiérarchie des Jusqu’à huit niveaux (CBR), VBR dossiers lisibles (dans la pratique, la hiérarchie compte Fréquence 8 kHz à 48 kHz moins de d’échantillonnage (32 kHz, 44,1 kHz, deux niveaux) 48 kHz pour accentuation) Dossiers lisibles Jusqu’à...
  • Seite 55 Apple et iTunes sont des marques commerciales d’Apple Inc., enregistrées PRÉCAUTION aux États-Unis et dans d’autres pays. Pioneer n’accepte aucune responsabilité en cas de perte de données sur l’iPod, Windows Media est une marque déposée même si la perte de données se produit ou une marque commerciale de Microsoft pendant l’utilisation de cet appareil.
  • Seite 56: Caractéristiques Techniques

    nécessaires, le cas échéant, consultez le Plage d’égalisation : ±12 dB (par pas site https://www.spotify.com. de 2 dB) Haut-parleur d’extrêmes graves (mono) : Fréquence : 50 Hz/63 Hz/80 Hz/ Caractéristiques 100 Hz/125 Hz/160 Hz/200 Hz techniques Pente : –12 dB/oct, –24 dB/oct Gain : +6 dB à...
  • Seite 57 Syntoniseur DAB Gamme de fréquences (Bande III) : 174,928 MHz à 239,200 MHz (5 A à 13 F) Gamme de fréquences (Bande L) : 1 452,960 MHz à 1 490,624 MHz (LA à Sensibilité utile (bande III) : –100 dBm Sensibilité...
  • Seite 58 Digital Audio Broadcasting (DAB) ............7 Radio ......................8 USB/iPod®/AUX ..................10 Modalità app ..................13 Spotify® ....................14 Utilizzare Pioneer ARC APP..............15 Impostazioni..................17 Impostazioni FUNCTION..............18 Impostazioni AUDIO ................20 Impostazioni SYSTEM................21 Impostazioni ILLUMINATION .............. 23 Informazioni aggiuntive ..............
  • Seite 59: Operazioni Preliminari

    Operazioni preliminari Funzionamento di base MVH-S220DAB BASS Porta USB Ghiera M.C. (multi-controllo) SRC (sorgente)/OFF DISP (display) Pulsante di sgancio Finestra di visualizzazione BAND/ Jack di ingresso AUX (jack stereo da 3,5 mm) Operazioni frequenti Scopo Operazione Accendere l’alimentazione* Premere SRC/OFF per accendere l’alimentazione.
  • Seite 60: Rimozione Del Frontalino

    * Quando l’interlinea blu/bianca dell’unità è collegata al terminale di controllo relè dell’antenna automatica del veicolo, l’antenna del veicolo si estende quando la sorgente dell’unità è attivata. Per ritirare l’antenna, disattivare la sorgente. Indicazione del display Indicazione Descrizione Viene visualizzata quando esiste un livello inferiore del menu o della cartella.
  • Seite 61: Menu Di Configurazione

    Menu di configurazione Quando, dopo l’installazione, si imposta l’interruttore di accensione su ON, sul display viene visualizzato [SET UP :YES]. Premere la ghiera M.C.. Il menu di configurazione scompare dopo 30 secondi di attività. Se si desidera effettuare l’impostazione in seguito, ruotare la ghiera M.C. per selezionare [NO], quindi premere per confermare.
  • Seite 62 Annullamento della visualizzazione di dimostrazione (DEMO OFF) Premere la ghiera M.C. per visualizzare il menu principale. Ruotare la ghiera M.C. per selezionare [SYSTEM], quindi premere per confermare. Ruotare la ghiera M.C. per selezionare [DEMO OFF], quindi premere per confermare. Ruotare la ghiera M.C. per selezionare [YES], quindi premere per confermare. Impostazioni INITIAL Tenere premuto SRC/OFF finché...
  • Seite 63: Digital Audio Broadcasting (Dab)

    Voce del menu Descrizione S/W UPDATE Selezionare per confermare le più recenti informazioni di sistema sull’unità. [SYSTEM INFO] [SYSTEM UPDATE] Selezionare per aggiornare l’unità al software più recente e avviare le impostazioni dell’unità. Per dettagli sul software più recente e sull’aggiornamento, visitare il nostro sito Web. DAB ANT PW Alimentare un’antenna DAB.
  • Seite 64: Radio

    Consente di visualizzare un elenco di tutti i componenti di servizi/stazioni. Tenere premuto nuovamente BASS per cercare un componente di servizio/stazione in ordine alfabetico. Selezionare un componente di servizio/stazione dall’elenco selezionato, quindi premere la ghiera M.C. per confermare. NOTA È possibile aggiornare l’elenco dei servizi premendo DAB. Per annullare l’aggiornamento, premere nuovamente DAB.
  • Seite 65: Best Stations Memory (Bsm)

    Best stations memory (BSM) Le sei stazioni più forti vengono memorizzate sui pulsanti numerici (da 1/ a 6/ Una volta selezionata la banda, premere la ghiera M.C. per visualizzare il menu principale. Ruotare la ghiera M.C. per selezionare [FUNCTION], quindi premere per confermare.
  • Seite 66: Usb/Ipod®/Aux

    USB/iPod®/AUX Riproduzione Scollegare le cuffie dal dispositivo prima di collegarlo all’unità. Dispositivi USB (incluso Android™)/iPod Aprire il coperchio della porta USB. Collegare il dispositivo USB/iPod utilizzando un cavo idoneo. NOTA Per passare automaticamente alla sorgente [USB] quando un dispositivo USB/iPod è collegato all’unità, impostare [USB AUTO] su [ON] nelle impostazioni SYSTEM (pagina 22).
  • Seite 67 Operazioni È possibile effettuare diverse regolazioni nelle impostazioni FUNCTION (pagina 18). Si prega di notare che le seguenti operazioni non funzionano su un dispositivo AUX. Per utilizzare un dispositivo AUX, utilizzare il dispositivo stesso. Scopo Operazione Selezionare una cartella/album*1 Premere 1/ o 2/ Selezionare una traccia/brano (capitolo) Premere...
  • Seite 68: Controllo Ipod

    Scopo Operazione Sospendere/riprendere la riproduzione Premere 4/PAUSE. Sound retriever Premere 3/S.Rtrv. [1]: efficace per velocità di compressione basse [2]: efficace per velocità di compressione alte Tornare alla cartella principale (solo USB)*1 Tenere premuto 1/ Cambiare le unità nel dispositivo USB Premere BAND/ (dispositivi che supportano solo il protocollo di classe dispositivo di...
  • Seite 69: Modalità App

    Questa funzione è compatibile con iPhone e iPod touch® installati con iOS 5.0 o versioni successive. NOTA PIONEER NON È RESPONSABILE DELLE APP DI TERZE PARTI O DEI RELATIVI CONTENUTI, SENZA ALCUNA LIMITAZIONE ALL’ACCURATEZZA O ALLA COMPLETEZZA. IL CONTENUTO E LA FUNZIONALITÀ DI TALI APPLICAZIONI SONO DI SOLA RESPONSABILITÀ...
  • Seite 70: Operazioni Di Base

    Spotify® (MVH-S220DAB è compatibile solo con Spotify installato su iPhone.) Spotify è un servizio di distribuzione musicale in streaming non affiliato con Pioneer. Maggiori informazioni sono disponibili alla pagina http://www.spotify.com. L’applicazione Spotify è disponibile per gli smartphone compatibili. Per informazioni aggiornate sulla compatibilità, visitare la pagina https://support.spotify.com/.
  • Seite 71: Utilizzare Pioneer Arc App

    Alcune funzioni di Spotify potrebbero non funzionare dall’unità. Utilizzare Pioneer ARC APP È possibile utilizzare l’unità dall’applicazione Pioneer ARC APP installata su un dispositivo iPhone/Android. In alcuni casi, è possibile controllare aspetti dell’applicazione utilizzando l’unità, quali selezione della sorgente, pausa e così via.
  • Seite 72 Pioneer ARC APP sul dispositivo Android si avvia automaticamente. NOTA Nel caso in cui l’applicazione Pioneer ARC APP non sia ancora stata installata sul dispositivo Android, viene visualizzato un messaggio che richiede di installare l’applicazione sul dispositivo Android. Selezionare [OFF] in [P.APP AUTO ON] per annullare il messaggio (pagina 22).
  • Seite 73: Impostazioni

    Premere SRC/OFF per selezionare qualsiasi sorgente. Tenere premuta la ghiera M.C.. Pioneer ARC APP sull’ iPhone viene avviata. NOTA Se il collegamento non riesce, avviare Pioneer ARC APP sull’iPhone. Ascoltare musica su Android Premere SRC/OFF per selezionare [ANDROID]. Operazioni di base...
  • Seite 74: Impostazioni Function

    Impostazioni FUNCTION Le voci del menu variano a seconda della sorgente. Voce del menu Descrizione S.FOLLOW [ON], [OFF] Cercare un altro ensemble che supporti il medesimo componente di servizio/stazione con una ricezione migliore. Nel caso in cui non sia possibile trovare un componente di servizio/ stazione alternativo o la ricezione rimane debole, l’unità...
  • Seite 75 Voce del menu Descrizione LOCAL FM: [OFF], [LV1], [LV2], [LV3], [LV4] Limitare la stazione di sintonizzazione in base MW/LW: [OFF], [LV1], [LV2] alla potenza del segnale. [DAB+RDS TA] Ricevere le informazioni correnti sul traffico per DAB e RDS (DAB ha la priorità), se disponibili. [RDS TA ONLY] Ricevere le informazioni correnti sul traffico solo per RDS, se disponibili.
  • Seite 76: Impostazioni Audio

    Voce del menu Descrizione AUDIO BOOK iPod [FASTER], [NORMAL], [SLOWER] Modificare la velocità di riproduzione. (Non disponibile quando [CONTROL iPod] è selezionato nella modalità di controllo.) PAUSE Sospendere o riprendere la riproduzione. *1 Disponibile solo nelle aree in cui viene supportata la funzione [SOFT LINK]. *2 Non disponibile quando la funzione [S.FOLLOW] è...
  • Seite 77: Impostazioni System

    Voce del menu Descrizione SUB.W CTRL*2*3 Frequenza di cutoff: [50HZ], Il subwoofer emette solo le frequenze inferiori a [63HZ], [80HZ], [100HZ], [125HZ], quelle presenti nell’intervallo selezionato. [160HZ], [200HZ] Livello di output: da [–24] a [+6] Livello di pendenza: [–12], [–24] BASS BOOST Da [0] a [+6] Selezionare il livello di incremento dei bassi.
  • Seite 78 Selezionare il metodo di connessione idoneo in base al dispositivo Android. P.APP AUTO ON [ON], [OFF] Selezionare [ON] per avviare automaticamente Pioneer ARC APP quando all’unità è collegato un dispositivo Android mediante AOA. (Non disponibile quando [MEMORY] è selezionato in [ANDROID WIRED].) USB AUTO...
  • Seite 79: Impostazioni Illumination

    * [PW SAVE] è annullato se la batteria del veicolo è scollegata e dovrà essere riattivato una volta ricollegata la batteria. Quando [PW SAVE] è disattivato, in base ai metodi di connessione, l’unità può continuare a ricavare energia dalla batteria se l’interruttore di accensione del veicolo non dispone di una posizione ACC (accessorio).
  • Seite 80: Informazioni Aggiuntive

    ON. Se il messaggio rimane, contattare visualizzazione normale. → Non è stata effettuata alcuna il rivenditore o una Stazione di servizio Pioneer per ottenere assistenza. operazione per circa 30 secondi. – Eseguire un’operazione. NO XXXX (NO TITLE, a esempio) → Non sono presenti informazioni di testo Il range della riproduzione ripetuta incorporate.
  • Seite 81 – Scollegare il cavo dall’iPod. Una volta SKIPPED visualizzato il menu principale → Il dispositivo USB connesso contiene file dell’iPod, ricollegare e reimpostare protetti da DRM. l’iPod. – I file protetti vengono ignorati. ERROR-23 PROTECT → Il dispositivo USB non è formattato →...
  • Seite 82 USB, potrebbero verificarsi i seguenti problemi. ATTENZIONE – Le operazioni possono variare. • Pioneer non può garantire la – Il dispositivo di archiviazione potrebbe compatibilità con tutti i dispositivi di non essere riconosciuto. archiviazione di massa USB e non si –...
  • Seite 83: Dispositivo Usb

    Velocità di Da 8 kbps a 320 kbps Gerarchia cartella Fino a otto livelli (una trasmissione (CBR), VBR riproducibile gerarchia pratica presenta meno di due Frequenza di Da 8 kHz a 48 kHz (32 livelli). campionamento kHz, 44,1 kHz, 48 kHz per enfasi) Cartelle riproducibili Fino a 500...
  • Seite 84 Questo prodotto include tecnologie di proprietà della Microsoft Corporation e ATTENZIONE non è utilizzabile senza licenza della Pioneer declina ogni responsabilità per la Microsoft Licensing, Inc. perdita di dati sull’iPod, anche se i dati iPhone, iPod e Lightning vengono persi durante l’utilizzo dell’unità.
  • Seite 85: Tuner Dab

    Testata: 170 mm × 46 mm × 17 mm Formato di decodifica AAC: MPEG-4 AAC Peso: 0,7 kg (solo iTunes codificati) (ver. 10.6 e precedenti) Audio Formato segnale WAV: PCM lineare (non Potenza massima: compresso) • 50 W × 4 canali/4 Ω (senza Tuner FM subwoofer) •...
  • Seite 86 Digital Audio Broadcasting (DAB) ............7 Radio ......................8 USB/iPod®/AUX ..................10 Modo app....................13 Spotify® ....................14 Uso de Pioneer ARC APP ..............16 Ajustes ....................18 Ajustes de FUNCTION................18 Ajustes de AUDIO .................. 20 Ajustes de SYSTEM................22 Ajustes de ILLUMINATION ..............
  • Seite 87: Procedimientos Iniciales

    Procedimientos iniciales Funcionamiento básico MVH-S220DAB BASS Puerto USB Selector M.C. (control múltiple) SRC (fuente)/OFF DISP (visualización) Botón de extracción Visor BAND/ Toma de entrada AUX (toma estéreo de 3,5 mm) Operaciones más frecuentes Función Operación Encendido* Pulse SRC/OFF para encender la unidad.
  • Seite 88: Indicaciones En Pantalla

    * Si el cable azul/blanco de esta unidad está conectado al terminal de control de relé de antena de automóvil, la antena del vehículo se extiende cuando se activa la fuente de esta unidad. Para replegar la antena, apague la fuente. Indicaciones en pantalla Indicación Descripción...
  • Seite 89 Presione el selector M.C.. El menú de configuración desaparece después de 30 segundos sin realizar operaciones. Si prefiere realizar la configuración en otro momento, gire el selector M.C. para seleccionar [NO] y presione para confirmar. Gire el selector M.C. para seleccionar las opciones y, a continuación, presione para confirmar.
  • Seite 90 Gire el selector M.C. para seleccionar [DEMO OFF] y, a continuación, presione para confirmar. Gire el selector M.C. para seleccionar [YES] y, a continuación, presione para confirmar. Ajustes de INITIAL Mantenga pulsado SRC/OFF hasta que se apague la unidad. Mantenga pulsado SRC/OFF para mostrar el menú principal. Gire el selector M.C.
  • Seite 91: Digital Audio Broadcasting (Dab)

    Opción del menú Descripción S/W UPDATE Seleccione para confirmar la información más reciente del sistema en la unidad. [SYSTEM INFO] [SYSTEM UPDATE] Seleccione esta opción para actualizar la unidad con el software más reciente e inicializar los ajustes de la unidad. Para obtener más información sobre el software y las actualizaciones más recientes, visite nuestro sitio web.
  • Seite 92: Radio

    Muestra la lista de todos los componentes de servicios o emisoras. Mantenga pulsado BASS de nuevo para buscar un componente de un servicio o una emisora alfabéticamente. Seleccione un componente de un servicio o emisora en la lista seleccionada y presione el selector M.C.
  • Seite 93 SUGERENCIA Los botones también pueden utilizarse para seleccionar una emisora memorizada cuando [SEEK] está ajustado en [PCH] en los ajustes de FUNCTION (página 20). Memoria de mejores emisoras (BSM) Las seis emisoras con mejor señal se guardan en los botones numéricos (de 1/ a 6/ Después de seleccionar la banda, presione el selector M.C.
  • Seite 94: Usb/Ipod®/Aux

    NOTAS • Para cancelar la búsqueda, presione el selector M.C.. • El programa de algunas emisoras puede no coincidir con la indicación del PTY transmitido. • Si ninguna emisora emite el tipo de programa que ha buscado, aparecerá [NOT FOUND] durante aproximadamente dos segundos y el sintonizador volverá...
  • Seite 95 NOTA Si [AUX] está ajustado en [OFF] en los ajustes de SYSTEM, [AUX] no puede seleccionarse como fuente (página 22). Operaciones Puede realizar varios ajustes en los ajustes de FUNCTION (página 18). Tenga en cuenta que las siguientes operaciones no pueden realizarse en un dispositivo AUX.
  • Seite 96: Control De Ipod

    Función Operación Reproducción repetida Pulse 6/ Reproducción aleatoria Pulse 5/ Reproducción aleatoria de todo (solo iPod) Mantenga pulsado 5/ Poner en pausa/reanudar la reproducción Pulse 4/PAUSE. Recuperación de sonido Pulse 3/S.Rtrv. [1]: funciona con índices de compresión bajos [2]: funciona con índices de compresión altos Volver a la carpeta raíz (solo USB)*1 Mantenga pulsado 1/...
  • Seite 97: Modo App

    Esta función es compatible con dispositivos iPhone y iPod touch® con iOS 5.0 o una versión posterior. NOTA PIONEER NO SE HACE RESPONSABLE DE APPS O CONTENIDOS DE OTROS PROVEEDORES, EN RELACIÓN CON ASPECTOS COMO SU PRECISIÓN, SU EXACTITUD Y OTROS ASPECTOS. EL CONTENIDO Y LAS FUNCIONALIDADES DE DICHAS APPS SON RESPONSABILIDAD EXCLUSIVA DEL PROVEEDOR DE CADA APP.
  • Seite 98: Funcionamiento Básico

    Poner en pausa/reanudar la reproducción Pulse BAND/ Spotify® (MVH-S220DAB solo es compatible con Spotify instalado en iPhone.) Spotify es un servicio de distribución de música en streaming que no está afiliado a Pioneer. Más información disponible en http://www.spotify.com. La aplicación de Spotify está disponible para teléfonos compatibles. Visite https:// support.spotify.com/ para consultar la información sobre compatibilidad más reciente.
  • Seite 99 • iPhone a través de USB (página 10) Pulse SRC/OFF para seleccionar [SPOTIFY]. Abra la aplicación Spotify en el dispositivo móvil e inicie la reproducción. Funcionamiento básico Puede realizar varios ajustes en los ajustes de FUNCTION (página 18). NOTA Las operaciones disponibles pueden variar en función del tipo de contenidos (pista/álbum/artista/lista de reproducción/radio) que desee reproducir.
  • Seite 100: Uso De Pioneer Arc App

    Algunas funciones de Spotify no pueden controlarse desde esta unidad. Uso de Pioneer ARC APP Puede utilizar la unidad desde la Pioneer ARC APP instalada en un dispositivo iPhone/ Android. En algunos casos, puede controlar aspectos de la aplicación, como por ejemplo selección de fuente, pausa, etc., al utilizar la unidad.
  • Seite 101 Se inicia automáticamente Pioneer ARC APP en el dispositivo Android. NOTA Si la Pioneer ARC APP no está instalada en su dispositivo Android, aparece un mensaje que le pide que instale la aplicación en su dispositivo Android. Seleccione [OFF] en [P.APP AUTO ON] para borrar el mensaje (página 23).
  • Seite 102: Ajustes

    Ajustes Puede ajustar diferentes valores en el menú principal. Presione el selector M.C. para que aparezca el menú principal. Gire el selector M.C. para seleccionar una de las categorías siguientes y, a continuación, presione para confirmar. • Ajustes de FUNCTION (página 18) •...
  • Seite 103 Opción del menú Descripción FM SETTING [TALK], [STANDARD], [MUSIC] Ajusta el nivel de calidad del sonido a las condiciones de señal de la emisión de la banda FM. (Disponible solo si se selecciona la banda FM.) Las seis emisoras con mejor señal se guardan en los botones numéricos (de 1/ a 6/ automáticamente.
  • Seite 104: Ajustes De Audio

    Opción del menú Descripción SEEK [MAN], [PCH] Permite utilizar los botones para buscar emisoras una a una (sintonización manual) o seleccionar una emisora a partir de los canales memorizados. SAVE Almacena la información sobre la canción que se está reproduciendo en su lista de música en Spotify.
  • Seite 105 Opción del menú Descripción EQ SETTING [SUPER BASS], [POWERFUL], Seleccione o personalice la curva del ecualizador. [DYNAMIC], [NATURAL], [VOCAL], [CUSTOM1] puede ajustarse por separado para [VIVID], [CUSTOM1], [CUSTOM2], cada fuente. Sin embargo, cada una de las [FLAT] siguientes combinaciones presenta automáticamente el mismo ajuste.
  • Seite 106: Ajustes De System

    *1 No está disponible si [SUB.W/SUB.W] está seleccionado en [SP-P/O MODE], en los ajustes de INITIAL (página 6). *2 No está disponible si [REAR/REAR] está seleccionado en [SP-P/O MODE], en los ajustes de INITIAL (página 6). *3 No está disponible si [OFF] está seleccionado en [SUB.W]. Ajustes de SYSTEM También puede acceder a estos menús cuando la unidad está...
  • Seite 107: Ajustes De Illumination

    Seleccione el método de conexión adecuado en función de su dispositivo Android. P.APP AUTO ON [ON], [OFF] Seleccione [ON] para iniciar Pioneer ARC APP automáticamente si se conecta un dispositivo Android a la unidad a través de AOA. (No está disponible si [MEMORY] está seleccionado en [ANDROID WIRED].)
  • Seite 108: Información Complementaria

    El visor vuelve automáticamente a la con su distribuidor o con un centro de visualización normal. → No se han realizado operaciones en asistencia Pioneer autorizado para obtener ayuda. aproximadamente 30 segundos. – Realice una operación. NO XXXX (NO TITLE, por ejemplo) →...
  • Seite 109 – Siga las instrucciones de seguridad del – Realice una de las operaciones dispositivo USB para desactivar la siguientes y, a continuación, vuelva a protección. la fuente USB. • Desconecte el dispositivo USB. SKIPPED • Seleccione una fuente diferente. → El dispositivo USB conectado contiene →...
  • Seite 110: Instrucciones De Manipulación

    – Las operaciones pueden variar. PRECAUCIÓN – Es posible que no se reconozca el • Pioneer no garantiza la compatibilidad dispositivo de almacenamiento. con todos los dispositivos de – Es posible que los archivos no se almacenamiento masivo USB y no asume reproduzcan correctamente.
  • Seite 111 una jerarquía de carpetas compleja Archivos MP3 podría tardar un poco en empezar. Extensión del archivo .mp3 Jerarquía de carpetas Hasta ocho niveles reproducibles (una jerarquía práctica Tasa de bits De 8 kbps a 320 kbps debe tener menos de (CBR), VBR dos niveles) Frecuencia de...
  • Seite 112 • Audiolibro, podcast: compatible PRECAUCIÓN De 01 a 05: número de carpeta Pioneer declina toda responsabilidad por : secuencia de reproducción la pérdida de datos del iPod, aunque la pérdida se produzca durante la utilización Copyright y marcas de esta unidad.
  • Seite 113 Tenga en cuenta que la utilización de este 22 W × 4 (de 50 Hz a 15 000 Hz, 5% accesorio con un producto Apple puede THD, 4 Ω carga, ambos canales perjudicar el correcto funcionamiento de la activados) conectividad inalámbrica. Impedancia de carga: 4 Ω...
  • Seite 114 Sensibilidad utilizable: 11 dBf (1,0 μV/75 Ω, mono, señal/ruido: 30 dB) Relación señal/ruido: 72 dB (red IEC-A) Sintonizador MW Intervalo de frecuencias: de 531 kHz a 1 602 kHz Sensibilidad utilizable: 25 μV (señal/ruido: 20 dB) Relación señal/ruido: 62 dB (red IEC-A) Sintonizador LW Intervalo de frecuencias: de 153 kHz a 281 kHz...
  • Seite 115 Erste Schritte .................... 3 Digitaler Hörfunk (Digital Audio Broadcasting) (DAB)..... 7 Radio ......................8 USB/iPod®/AUX ..................10 App-Modus.................... 13 Spotify® ....................14 Verwenden von Pioneer ARC APP ............. 16 Einstellungen ..................18 FUNCTION-Einstellungen ..............18 AUDIO-Einstellungen ................21 SYSTEM-Einstellungen ................. 22 ILLUMINATION-Einstellungen............. 24 Zusätzliche Informationen ..............
  • Seite 116: Erste Schritte

    Erste Schritte Grundlagen der Bedienung MVH-S220DAB BASS USB-Anschluss M.C.-(Mehrfunktions-)Regler SRC (Quelle)/OFF DISP (Display) Entriegelungstaste Anzeigefenster BAND/ AUX-Eingangsbuchse (3,5-mm-Stereobuchse) Häufig verwendete Bedienvorgänge Zweck Bedienung Gerät einschalten* Drücken Sie SRC/OFF, um das Gerät einzuschalten. Halten Sie SRC/OFF gedrückt, um das Gerät auszuschalten.
  • Seite 117: Anzeige Im Display

    * Wenn das blauweiße Kabel dieses Geräts an der Steuerklemme des Automatikantennenrelais des Fahrzeugs angeschlossen ist, fährt die Fahrzeugantenne aus, wenn die Quelle dieses Geräts eingeschaltet wird. Um die Antenne einzuziehen, schalten Sie die Quelle aus. Anzeige im Display Anzeige Beschreibung Erscheint, wenn eine untere Ebene des Menüs oder Ordners existiert.
  • Seite 118: Einrichtungsmenü

    Einrichtungsmenü Wenn Sie nach dem Einbau die Zündung einschalten, erscheint [SET UP :YES] im Display. Drücken Sie den M.C.-Regler. Das Einrichtungsmenü verschwindet, wenn 30 Sekunden lang kein Bedienvorgang ausgeführt wird. Wenn Sie die Einrichtung im Moment nicht durchführen möchten, drehen Sie den M.C.-Regler, um [NO] auszuwählen, und drücken Sie ihn dann, um den Vorgang zu bestätigen.
  • Seite 119: Abbrechen Der Demoanzeige (Demo Off)

    Abbrechen der Demoanzeige (DEMO OFF) Drehen Sie den M.C.-Regler, um das Hauptmenü anzuzeigen. Drehen Sie den M.C.-Regler, um [SYSTEM] auszuwählen, und drücken Sie ihn dann, um den Vorgang zu bestätigen. Drehen Sie den M.C.-Regler, um [DEMO OFF] auszuwählen, und drücken Sie ihn dann, um den Vorgang zu bestätigen.
  • Seite 120: Digitaler Hörfunk (Digital Audio Broadcasting) (Dab)

    Menüpunkt Beschreibung S/W UPDATE Wählen Sie diese Option, um die neuesten Systeminformationen des Geräts zu bestätigen. [SYSTEM INFO] [SYSTEM UPDATE] Wählen Sie diese Option, um das Gerät auf die neueste Software zu aktualisieren und die Einstellungen des Geräts zu initialisieren. Einzelheiten zur neuesten Software und zur Aktualisierung finden Sie auf unserer Website.
  • Seite 121: Voreinstellen Von Dienstkomponenten/Stationen

    Zeigt die Liste aller Dienstkomponenten/Stationen an. Halten Sie BASS erneut gedrückt, um alphabetisch nach einer Servicekomponente/einem Sender zu suchen. Wählen Sie aus der von Ihnen ausgewählten Liste eine Dienstkomponente/Station aus, und drücken Sie dann den M.C.-Regler, um den Vorgang zu bestätigen. HINWEIS Sie können die Dienstliste durch Drücken von DAB aktualisieren.
  • Seite 122: Speicher Der Besten Sender (Bsm: Best Stations Memory)

    TIPP -Tasten können auch verwendet werden, um einen voreingestellten Sender auszuwählen, wenn [SEEK] in den FUNCTION-Einstellungen auf [PCH] eingestellt ist (Seite 20). Speicher der besten Sender (BSM: Best Stations Memory) Die sechs stärksten Sender werden auf den Zifferntasten (1/ bis 6/ ) gespeichert.
  • Seite 123: Usb/Ipod®/Aux

    Das Gerät beginnt, nach einem Sender zu suchen. Wenn ein Sender gefunden wurde, wird der Sendername angezeigt. HINWEISE • Um die Suche abzubrechen, drücken Sie den M.C.-Regler. • Das Sendeprogramm einiger Sender kann von der übertragenen PTY-Klassifizierung abweichen. • Wenn kein Sender den Programmtyp überträgt, nach dem Sie suchen, wird etwa zwei Sekunden lang [NOT FOUND] angezeigt, und der Tuner kehrt dann zum ursprünglichen Sender zurück.
  • Seite 124 Schließen Sie den Stereo-Mini-Stecker an der AUX-Eingangsbuchse an. Drücken Sie SRC/OFF, um [AUX] als Quelle auszuwählen. HINWEIS Wenn in den SYSTEM-Einstellungen [AUX] auf [OFF] eingestellt ist, lässt sich [AUX] nicht als Quelle auswählen (Seite 23). Bedienvorgänge In den FUNCTION-Einstellungen können Sie verschiedene Anpassungen vornehmen (Seite 18).
  • Seite 125: Nützliche Funktionen Für Ipods

    Zweck Bedienung 1 Halten Sie BASS gedrückt, um die Liste Alphabetische Suche (nur iPod) anzuzeigen. 2 Drehen Sie den M.C.-Regler, um die gewünschte Kategorieliste auszuwählen, und halten Sie dann BASS gedrückt, um den alphabetischen Suchmodus aufzurufen. (Zweimaliges Drehen des M.C.-Reglers ruft ebenfalls den alphabetischen Suchmodus auf.) 3 Drehen Sie den M.C.-Regler, um einen...
  • Seite 126: Steuerung Über Ipod

    Halten Sie, während Sie einen Titel anhören, 4/PAUSE gedrückt, um in den Modus der verknüpften Wiedergabe zu wechseln. Drehen Sie den M.C.-Regler, um den Modus auszuwählen ([ARTIST], [ALBUM], [GENRE]), und drücken Sie dann den Regler, um den Vorgang zu bestätigen. Der ausgewählte Titel/das ausgewählte Album wird nach dem momentan wiedergegebenen Titel gespielt.
  • Seite 127: Wiedergabe Einer Anwendung Über Das Gerät

    Wiedergabe pausieren/fortsetzen Drücken Sie BAND/ Spotify® (MVH-S220DAB ist nur kompatibel mit Spotify bei Installation auf iPhone.) Spotify ist ein Musikstreaming-Dienst, der nicht mit Pioneer verbunden ist. Weitere Informationen sind unter http://www.spotify.com verfügbar. Die Spotify-Anwendung ist für kompatible Smartphones verfügbar, bitte besuchen Sie https://support.spotify.com/, um die neuesten Kompatibilitätsinformationen zu...
  • Seite 128: Spotify Hören

    Um Spotify während der Fahrt zu nutzen, müssen Sie zunächst die Spotify-App auf Ihr iPhone herunterladen. Sie können sie über den iTunes App Store herunterladen. Wählen Sie ein kostenloses Konto oder ein kostenpflichtiges Premium-Konto, entweder in der App oder auf spotify.com. Mit einem Premium-Konto erhalten Sie mehr Funktionen wie beispielsweise Musikhören offline.
  • Seite 129: Verwenden Von Pioneer Arc App

    Einige Funktionen von Spotify lassen sich möglicherweise nicht mit dem Gerät bedienen. Verwenden von Pioneer ARC APP Sie können das Gerät von der auf einem iPhone/Android-Gerät installierten Pioneer ARC APP aus bedienen. In einigen Fällen können Sie mit dem Gerät Aspekte der Anwendung steuern wie beispielsweise Quellenauswahl, Pause usw.
  • Seite 130: Herstellen Einer Verbindung Mit Pioneer Arc App

    Pioneer ARC APP wird auf dem Android-Gerät automatisch gestartet. HINWEIS Wenn Pioneer ARC APP noch nicht auf Ihrem Android-Gerät installiert wurde, erscheint eine Meldung, die Sie auffordert, die Anwendung auf Ihrem Android-Gerät zu installieren. Wählen Sie [OFF] unter [P.APP AUTO ON] zum Löschen der Meldung (Seite 23).
  • Seite 131: Musik Hören Auf Android

    HINWEIS Wenn die Verbindung fehlschlägt, starten Sie Pioneer ARC APP auf dem iPhone. Musik hören auf Android Drücken Sie SRC/OFF, um [ANDROID] auszuwählen. Grundlegende Bedienvorgänge Zweck Bedienung Track auswählen Drücken Sie bzw. Vor- oder zurückspulen Halten Sie bzw. gedrückt. Wiedergabe pausieren/fortsetzen Drücken Sie 4/PAUSE.
  • Seite 132 Menüpunkt Beschreibung S.FOLLOW [ON], [OFF] Nach einem anderen Ensemble suchen, das dieselbe Dienstkomponente/Station mit besserem Empfang unterstützt. Wenn keine alternative Dienstkomponente/Station gefunden wird oder der Empfang schlecht bleibt, schaltet das Gerät automatisch auf eine identische FM-Übertragung um. SOFT LINK*1*2 [ON], [OFF] Wenn der Empfang der momentan empfangenen Dienstkomponente/Station zu schlecht wird, wechselt das Gerät automatisch zu...
  • Seite 133 Menüpunkt Beschreibung [DAB+RDS TA] Aktuelle Verkehrsinformationen für DAB und RDS (DAB hat Priorität) empfangen, wenn verfügbar. [RDS TA ONLY] Aktuelle Verkehrsinformationen nur für RDS empfangen, wenn verfügbar. [TA OFF] Deaktiviert diese Funktion. [ON], [OFF] Dem Gerät erlauben, auf eine andere Frequenz umzuschalten, die den gleichen Sender überträgt.
  • Seite 134: Audio-Einstellungen

    Menüpunkt Beschreibung AUDIO BOOK iPod [FASTER], [NORMAL], [SLOWER] Wiedergabegeschwindigkeit ändern. (Nicht verfügbar, wenn im Steuerungsmodus [CONTROL iPod] ausgewählt ist.) PAUSE Wiedergabe pausieren oder fortsetzen. *1 Nur in Gebieten verfügbar, in denen die [SOFT LINK]-Funktion unterstützt wird. *2 Nicht verfügbar, wenn die [S.FOLLOW]-Funktion ausgeschaltet ist. AUDIO-Einstellungen Menüpunkt Beschreibung...
  • Seite 135: System-Einstellungen

    Menüpunkt Beschreibung SUB.W CTRL*2*3 Grenzfrequenz: [50HZ], [63HZ], Der Subwoofer gibt nur Signale unterhalb des [80HZ], [100HZ], [125HZ], ausgewählten Bereichs aus. [160HZ], [200HZ] Ausgabepegel: [–24] bis [+6] Steilheit: [–12], [–24] BASS BOOST [0] bis [+6] Auswahl des Bassverstärkungspegels. HPF SETTING Grenzfrequenz: [OFF], [50HZ], Die Lautsprecher geben nur Signale oberhalb [63HZ], [80HZ], [100HZ], [125HZ], der Grenzfrequenz des Hochpassfilters (HPF) aus.
  • Seite 136 Wählen Sie die für ein Android-Gerät geeignete Verbindungsmethode. P.APP AUTO ON [ON], [OFF] Wählen Sie [ON], um automatisch Pioneer ARC APP zu starten, wenn ein Android-Gerät über AOA mit dem Gerät verbunden ist. (Nicht verfügbar, wenn [MEMORY] unter [ANDROID WIRED] ausgewählt ist.)
  • Seite 137: Illumination-Einstellungen

    * [PW SAVE] wird abgebrochen, wenn die Fahrzeugbatterie getrennt wird, und muss nach erneutem Anschließen der Batterie wieder eingeschaltet werden. Wenn [PW SAVE] ausgeschaltet ist, kann es abhängig von den Verbindungsmethoden sein, dass das Gerät weiterhin Strom von der Batterie bezieht, wenn die Zündung Ihres Fahrzeugs keine ACC-Stellung (Stromversorgung über Starterbatterie) hat.
  • Seite 138: Zusätzliche Informationen

    → Es wurden etwa 30 Sekunden lang weiter angezeigt werden, wenden Sie sich zur Unterstützung an Ihren keine Bedienvorgänge ausgeführt. Händler oder eine Pioneer- – Führen Sie einen Bedienvorgang aus. Kundendienststelle. Der Wiederholbereich ändert sich NO XXXX (beispielsweise NO TITLE) unerwartet.
  • Seite 139 → Auf dem angeschlossenen USB-Gerät ist ERROR-19 die Sicherheitsfunktion aktiviert. → Kommunikation fehlgeschlagen. – Folgen Sie den Anweisungen des USB- – Führen Sie einen der folgenden Geräts, um die Sicherheitsfunktion zu Bedienvorgänge aus, und kehren Sie deaktivieren. dann zur USB-Quelle zurück. •...
  • Seite 140: Kompatibilität Komprimierter Audioformate

    – Die Bedienung kann unterschiedlich verzögern. sein. – Möglicherweise wird das Speichergerät VORSICHT nicht erkannt. • Pioneer kann nicht die Kompatibilität mit – Möglicherweise werden Dateien nicht allen USB-Massenspeichergeräten richtig wiedergegeben. gewährleisten und übernimmt keine – Das Gerät kann Störgeräusche Verantwortung für eventuelle...
  • Seite 141: Mp3-Dateien

    Windows Media™ Nicht kompatibel USB-Gerät Audio Professional, • Der Beginn der Wiedergabe von auf Lossless, Voice/DRM einem USB-Gerät mit komplexer Stream/Stream mit Ordnerstruktur gespeicherten Video Audiodateien kann sich geringfügig verzögern. MP3-Dateien Abspielbare Bis zu acht Ebenen Dateierweiterung .mp3 Ordnerstruktur (Praktikabel sind Bitrate 8 Kbit/s bis 320 Kbit/s weniger als zwei...
  • Seite 142: Beispielstruktur

    Formatkompatibilität finden Sie in den iPod-Handbüchern. • Hörbücher, Podcast: Kompatibel VORSICHT 01 bis 05: Ordnernummer Pioneer übernimmt keine Haftung für den : Wiedergabereihenfolge Verlust von iPod-Daten, auch dann nicht, wenn der Verlust der betreffenden Daten Urheberrechte und während der Verwendung dieses Geräts aufgetreten ist.
  • Seite 143: Technische Daten

    Bitte beachten Sie, dass die Verwendung 22 W × 4 (50 Hz bis 15 000 Hz, 5 % dieses Zusatzgeräts mit einem Apple- THD, bei 4-Ω-Last, beide Kanäle Produkt die drahtlose Leistung betrieben) beeinträchtigen kann. Lastimpedanz: 4 Ω (4 Ω bis 8 Ω zulässig) iPhone, iPod, iPod classic, iPod nano, iPod Maximaler Preout-Ausgangspegel: 2,0 V touch und Lightning sind in den USA und...
  • Seite 144 Nutzempfindlichkeit: 25 μV (Signal- Rauschabstand: 20 dB) Signal-Rauschabstand: 62 dB (IEC-A-Netz) LW-Tuner Frequenzbereich: 153 kHz bis 281 kHz Nutzempfindlichkeit: 28 μV (Signal- Rauschabstand: 20 dB) Signal-Rauschabstand: 62 dB (IEC-A-Netz) DAB-Tuner Frequenzbereich (Band III): 174,928 MHz bis 239,200 MHz (5 A bis 13 F) Frequenzbereich (L-Band): 1 452,960 MHz bis 1 490,624 MHz (LA bis LW) Nutzempfindlichkeit (Band III): –100 dBm...
  • Seite 145 Aan de slag ....................3 Digital Audio Broadcasting (DAB) ............7 Radio ......................8 USB/iPod®/AUX ..................10 App-modus.................... 13 Spotify® ....................14 Pioneer ARC APP gebruiken............... 15 Instellingen.................... 17 FUNCTION-instellingen................ 18 AUDIO-instellingen................20 SYSTEM-instellingen................21 ILLUMINATION-instellingen ..............23 Aanvullende informatie ..............24 Over deze handleiding: •...
  • Seite 146: Aan De Slag

    Aan de slag Basisbediening MVH-S220DAB BASS USB-poort M.C.-knop (multicontrole) SRC (bron)/OFF DISP (display) Ontkoppelknop Display BAND/ AUX-ingang (3,5mm-stereoaansluiting) Vaak gebruikte functies Actie Bediening Toestel inschakelen* Druk op SRC/OFF om het toestel in te schakelen. Hou SRC/OFF ingedrukt om het toestel uit te schakelen.
  • Seite 147: Het Voorpaneel Verwijderen

    * Wanneer de blauw/witte draad van het toestel verbonden is met het relaiscontact voor de automatische antenne van de auto, schuift de antenne uit wanneer de bron van het toestel wordt ingeschakeld. Om de antenne weer in te trekken, schakelt u de bron uit. Display-indicatie Indicatie Beschrijving...
  • Seite 148: Instellingenmenu

    Instellingenmenu Wanneer u de contactschakelaar inschakelt na de installatie, verschijnt [SET UP :YES] op het display. Druk op de M.C.-knop. Het instellingenmenu verdwijnt als u het toestel niet binnen 30 seconden bedient. Als u de instelling later wilt maken, draait u de M.C.-knop om [NO] te selecteren, druk daarna op de knop om te bevestigen.
  • Seite 149 De demonstratieweergave annuleren (DEMO OFF) Druk op de M.C.-knop om het hoofdmenu weer te geven. Draai aan de M.C.-knop om [SYSTEM] te selecteren, druk daarna op de knop om te bevestigen. Draai aan de M.C.-knop om [DEMO OFF] te selecteren, druk daarna op de knop om te bevestigen.
  • Seite 150: Digital Audio Broadcasting (Dab)

    Menu-item Beschrijving S/W UPDATE Selecteer dit om de recentste systeeminformatie op het toestel te bevestigen. [SYSTEM INFO] [SYSTEM UPDATE] Selecteer dit om het toestel bij te werken naar de recentste software en de instellingen van het toestel te initialiseren. Voor meer informatie over de recentste software en het updaten van deze software kunt u terecht op onze website.
  • Seite 151: Radio

    Selecteer een servicecomponent/station in de geselecteerde lijst en druk vervolgens op de M.C.-knop om te bevestigen. OPMERKING U kunt de servicelijst bijwerken door op DAB te drukken. Om het bijwerken te annuleren, drukt u nogmaals op DAB. Servicecomponenten/stations vooraf instellen Servicecomponenten/stations opslaan Terwijl u de servicecomponent/het station ontvangt die/dat u wilt opslaan, houdt u een van de cijfertoetsen (1/...
  • Seite 152: Zenders Handmatig Opslaan

    Druk, nadat u een band heeft geselecteerd, op de M.C.-knop om het hoofdmenu weer te geven. Draai aan de M.C.-knop om [FUNCTION] te selecteren, druk daarna op de knop om te bevestigen. Draai aan de M.C.-knop om [BSM] te selecteren, druk daarna op de knop om te bevestigen.
  • Seite 153: Usb/Ipod®/Aux

    USB/iPod®/AUX Weergave Koppel de hoofdtelefoon los van het apparaat voor u het aansluit op het toestel. USB-apparaten (inclusief Android™)/iPod Open het deksel van de USB-poort. Sluit het USB-apparaat/de iPod aan met behulp van een geschikte kabel. OPMERKING Om automatisch over te schakelen naar de bron [USB] wanneer er een USB-apparaat/iPod verbonden wordt met het toestel, stelt u [USB AUTO] in op [ON] bij de SYSTEM-instellingen (pagina 23).
  • Seite 154 Bedieningen U kunt diverse instellingen uitvoeren in de FUNCTION-instellingen (pagina 18). Merk op dat de volgende bedieningen niet werken voor een AUX-apparaat. Om een AUX-apparaat te bedienen, dient u het apparaat zelf te gebruiken. Actie Bediening Een map/album selecteren*1 Druk op 1/ of 2/ Een fragment/song (hoofdstuk) selecteren Druk op...
  • Seite 155: Ipod-Bediening

    Actie Bediening Weergave pauzeren/hervatten Druk op 4/PAUSE. Sound retriever Druk op 3/S.Rtrv. [1]: Geschikt voor lage compressiewaarden [2]: Geschikt voor hoge compressiewaarden Terug naar de rootmap (alleen voor USB)*1 Houd 1/ ingedrukt. Stations wisselen op een USB-apparaat Druk op BAND/ (alleen apparaten die het protocol USB mass storage device ondersteunen) *1 Alleen gecomprimeerde audiobestanden...
  • Seite 156: App-Modus

    Deze functie is compatibel met iPhone en iPod touch® waarop iOS 5.0 of recenter geïnstalleerd is. OPMERKING PIONEER IS NIET AANSPRAKELIJK VOOR APPLICATIES VAN DERDEN OF HUN INHOUD, INCLUSIEF MAAR NIET BEPERKT TOT HUN NAUWKEURIGHEID OF VOLLEDIGHEID. DE INHOUD EN DE FUNCTIONALITEIT VAN DERGELIJKE APPLICATIES ZIJN UITSLUITEND DE VERANTWOORDELIJKHEID VAN DE LEVERANCIER VAN DE APPLICATIE.
  • Seite 157: Spotify

    Het afspelen pauzeren/hervatten Druk op BAND/ Spotify® (MVH-S220DAB is alleen compatibel met Spotify geïnstalleerd op iPhone.) Spotify is een verspreidingsservice voor muziekstreaming die niet aangesloten is bij Pioneer. Meer informatie vindt u op http://www.spotify.com. De Spotify-toepassing is beschikbaar voor compatibele telefoons. Raadpleeg https:// support.spotify.com/ voor de recentste informatie over compatibiliteit.
  • Seite 158: Pioneer Arc App Gebruiken

    Sommige functies van Spotify kunnen niet op het toestel worden bediend. Pioneer ARC APP gebruiken U kunt het toestel bedienen via een Pioneer ARC APP die geïnstalleerd is op een iPhone/ Android-apparaat. In sommige gevallen kunt u via het toestel bepaalde functies van de toepassing gebruiken, zoals bronselectie, pauzeren enz.
  • Seite 159 Deze functie is compatibel met iPhones (iPhone 5 of later) en iPod touches waarop iOS 8.0 of later geïnstalleerd is. U kunt Pioneer ARC APP downloaden op iTunes App Store. Voor gebruikers van Android-apparaten Deze functie is compatibel met een telefoon met daarop Android 4.1 tot 7.1.2 die ook AOA (Android Open Accessory) 2.0 ondersteunt, maar de compatibiliteit is afhankelijk...
  • Seite 160: Instellingen

    OPMERKING Als Pioneer ARC APP niet op uw Android-apparaat werd geïnstalleerd, verschijnt een bericht op uw Android-apparaat om u te vragen de applicatie te installeren. Selecteer [OFF] in [P.APP AUTO ON] om het bericht te verwijderen (pagina 22). Wanneer u een verbinding met iPhone maakt Verbind dit toestel met iPhone via USB.
  • Seite 161: Function-Instellingen

    Draai de M.C.-knop om de opties te selecteren, druk daarna op de knop om te bevestigen. FUNCTION-instellingen De menu-items zijn afhankelijk van de bron. Menu-item Beschrijving S.FOLLOW [ON], [OFF] Zoek naar een ander ensemble dat dezelfde servicecomponent/hetzelfde station met een betere ontvangst ondersteunt.
  • Seite 162 Menu-item Beschrijving LOCAL FM: [OFF], [LV1], [LV2], [LV3], [LV4] Beperk de zenders automatisch volgens de MW/LW: [OFF], [LV1], [LV2] signaalsterkte. [DAB+RDS TA] Ontvang huidige verkeersberichten voor DAB en RDS (DAB heeft voorrang) (indien beschikbaar). [RDS TA ONLY] Ontvang huidige verkeersberichten alleen voor RDS (indien beschikbaar).
  • Seite 163: Audio-Instellingen

    Menu-item Beschrijving AUDIO BOOK iPod [FASTER], [NORMAL], [SLOWER] Wijzig de weergavesnelheid. (Niet beschikbaar wanneer [CONTROL iPod] geselecteerd is in de bedieningsmodus.) PAUSE Pauzeer of hervat de weergave. *1 Alleen beschikbaar in gebieden waar de [SOFT LINK]-functie wordt ondersteund. *2 Niet beschikbaar als de [S.FOLLOW]-functie is uitgeschakeld. AUDIO-instellingen Menu-item Beschrijving...
  • Seite 164: System-Instellingen

    Menu-item Beschrijving SUB.W CTRL*2*3 Drempelfrequentie: [50HZ], Alleen frequenties die lager zijn dan de [63HZ], [80HZ], [100HZ], [125HZ], frequenties in het geselecteerde bereik, worden [160HZ], [200HZ] weergegeven door de subwoofer. Uitgangsniveau: [–24] tot [+6] Hellingsniveau: [–12], [–24] BASS BOOST [0] tot [+6] Selecteer het bass boost-niveau.
  • Seite 165 Selecteer de geschikte verbindingsmethode voor een Android-apparaat. P.APP AUTO ON [ON], [OFF] Selecteer [ON] om Pioneer ARC APP automatisch te starten wanneer een Android-apparaat wordt verbonden aan het toestel via AOA. (Niet beschikbaar wanneer [MEMORY] is geselecteerd in [ANDROID WIRED].)
  • Seite 166: Illumination-Instellingen

    Menu-item Beschrijving USB AUTO [ON], [OFF] Selecteer [ON] om automatisch over te schakelen naar de bron [USB] wanneer er een USB-apparaat/iPod verbonden wordt met het toestel. Selecteer [OFF] wanneer een USB-apparaat/iPod alleen aangesloten wordt om opgeladen te worden. * [PW SAVE] wordt geannuleerd als de accu losgekoppeld wordt, en moet weer worden ingeschakeld als de accu weer wordt aangesloten.
  • Seite 167: Aanvullende Informatie

    Pioneer Servicecentrum. ander fragment selecteert of vooruit of achteruit spoelt. NO XXXX (bijvoorbeeld NO TITLE) – Selecteer het gewenste bereik voor →...
  • Seite 168 – Zet de audiobestanden over naar het ERROR-19 USB-apparaat en maak verbinding. → Communicatiefout. → De inhoud van het USB-apparaat is – Probeer een van de volgende beveiligd. mogelijkheden en keer dan terug naar – Raadpleeg de instructies bij het USB- de USB-bron.
  • Seite 169: Aanwijzingen Voor Het Gebruik

    • Afhankelijk van het USB-apparaat kunnen LET OP de volgende problemen voorkomen. • Pioneer garandeert geen compatibiliteit – De bediening kan verschillend zijn. met alle USB-opslagapparaten en kan – Het opslagapparaat wordt niet herkend. niet verantwoordelijk worden gesteld –...
  • Seite 170 opslagapparaat met een uitgebreide MP3-bestanden mappenstructuur. Bestandsextensie .mp3 Hiërarchie afspeelbare Tot acht niveaus (voor mappen praktisch gebruik kunt Bitsnelheid 8 kbps tot 320 kbps u beter niet meer dan (CBR), VBR twee niveaus Bemonsteringsfrequentie 8 kHz tot 48 kHz (32 gebruiken) kHz, 44,1 kHz, 48 kHz Afspeelbare mappen...
  • Seite 171: Volgorde Van Audiobestanden

    Microsoft Corporation in de Verenigde Staten en/of in andere landen. LET OP Dit product bevat technologie die het Pioneer is niet verantwoordelijk voor eigendom is van Microsoft Corporation en verlies van gegevens op de iPod, ook niet die niet gebruikt of gedistribueerd mag tijdens het gebruik van dit toestel.
  • Seite 172: Technische Gegevens

    Technische gegevens USB-standaardspecificatie: USB 2.0 volledige snelheid Algemeen Maximaal stroomverbruik: 1 A Spanningsbron: 14,4 V gelijkstroom (10,8 V USB-protocol: tot 15,1 V toelaatbaar) MSC (Mass Storage Class) Aardingsysteem: negatief MTP (Media Transfer Protocol) Maximaal stroomverbruik: 10,0 A AOA (Android Open Accessory) 2.0 Afmetingen (B ×...
  • Seite 173 Bruikbare gevoeligheid (L-band): –100 dBm Signaal-ruisverhouding: 85 dB OPMERKING Technische gegevens en ontwerp kunnen zonder voorafgaande kennisgeving worden gewijzigd. - 30 -...
  • Seite 174 © 2019 PIONEER CORPORATION. All rights reserved. © 2019 PIONEER CORPORATION. Tous droits de reproduction et de traduction réservés. <OPM_MVHS220DABEW5_L6_A> EW...
