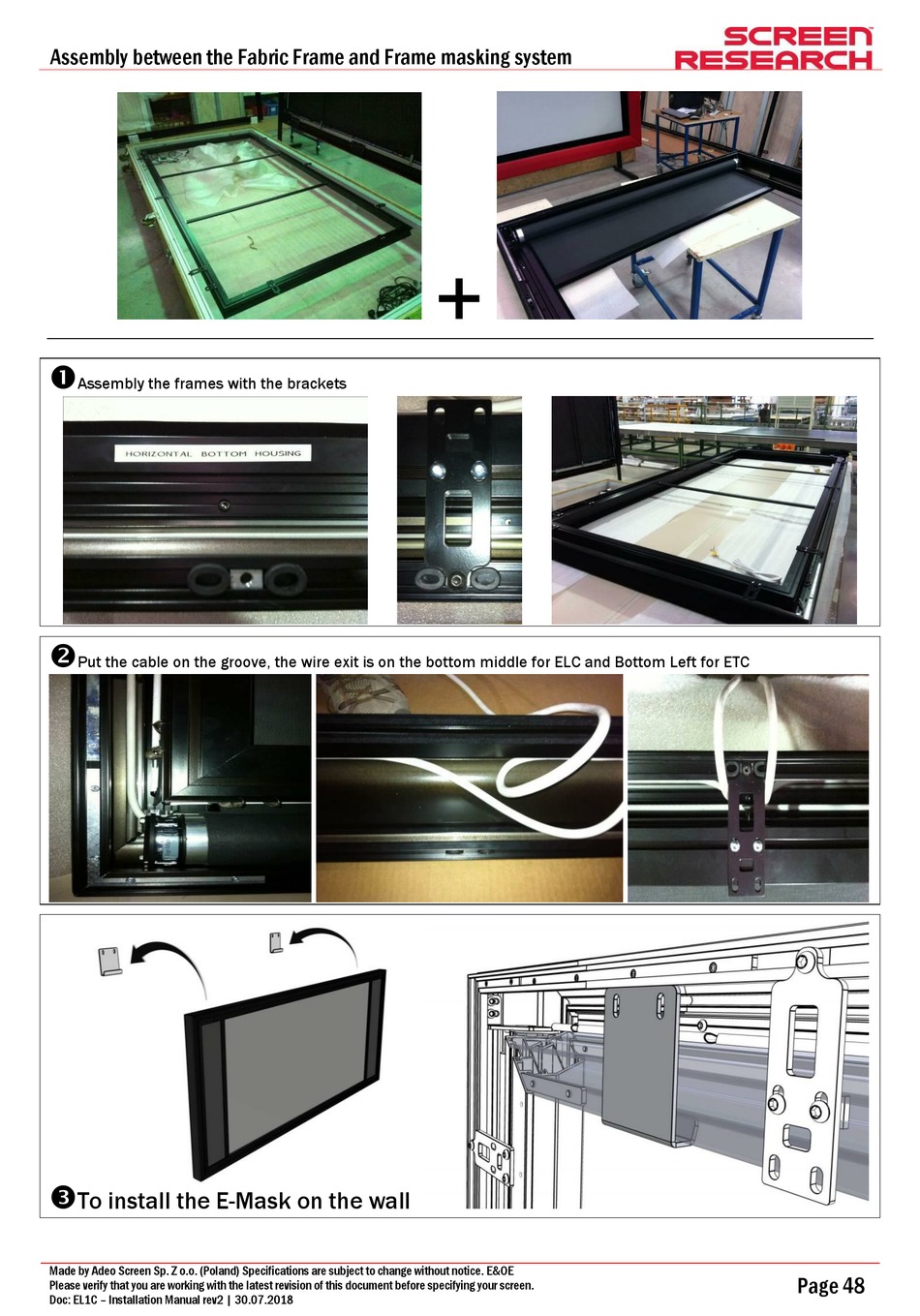

Assembly between the Fabric Frame and Frame masking system

Assembly the frames with the brackets

Put the cable on the groove, the wire exit is on the bottom middle for ELC and Bottom Left for ETC

To install the E-Mask on the wall
Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE
Please verify that you are working with the latest revision of this document before specifying your screen.
Doc: EL1C – Installation Manual rev2 | 30.07.2018
+
Page 48
