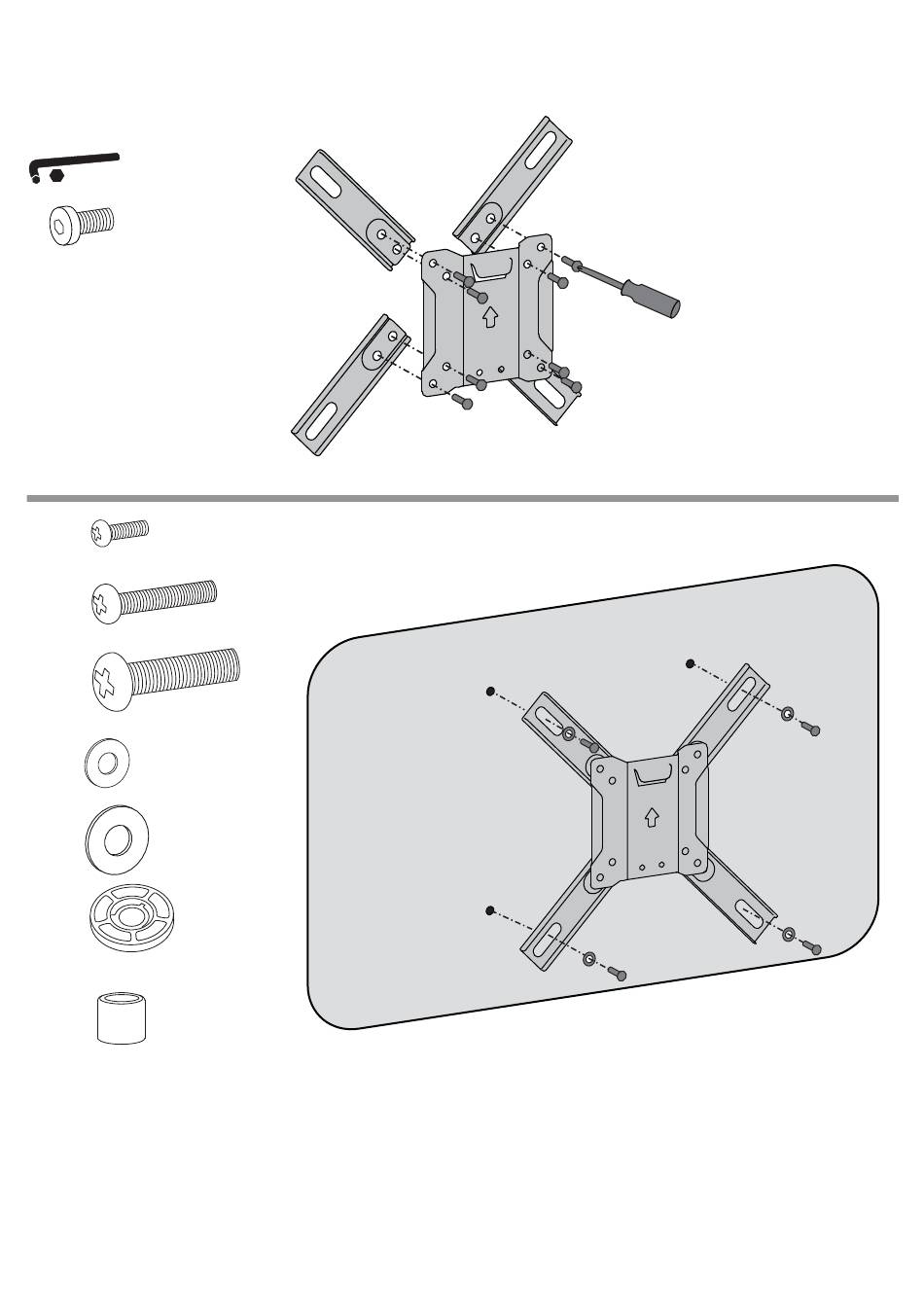

These extenders will allow you to mount TV's with a 200mm x 200mm hole pattern. Attach each extender to the TV
plate using shown hardware. Once this step is complete, refer to the previous step for attaching the TV plate to the
TV.
a
4 mm
8x
M6 x 8 mm
b
4x
M4 x 12 mm
4x
M6 x 25 mm
4x
M8 x 25 mm
4x
M4
4x
M6
8x
M4/M6/M8 x 2.5 mm
4x
M8 x 10 mm
8 of 15
888-61-279-W-01 rev. C • 04/19
